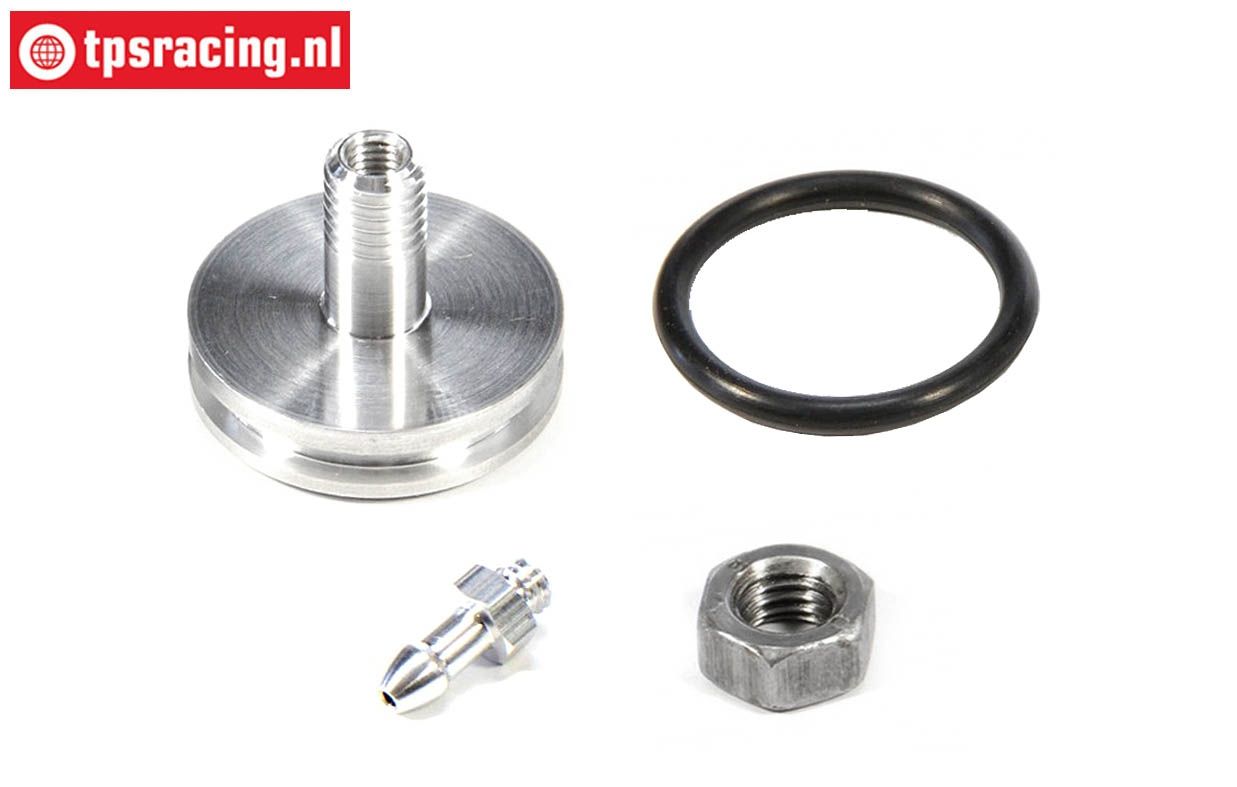

Original FG Tuning part

This special closure ensures a perfect seal for the mentioned tanks below.

Mounting:

• Drill an 8 mm hole in the center of the fuel cap
• Place the rubber seal FG8380/06 in the fuel cap
• Now place the rubber ring FG8384/02 around the aluminum seal FG8381/04
• Slide this assembly through the hole in the cap and hand tighten the supplied nut
• Now press the fuel cap into the tank and screw the nut tight, (use screw locking TPS271)
• Now screw the supplied nipple FG8381/03 into the protruding part of the aluminum fastener, (use screw locking TPS271)

Suitable for FG tanks:

• FG8383
• FG8384
