PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc.
PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc. PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc. PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc. PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc. PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc.

PWHGTS-6 Power HD GTS-6 HV Brushless servo 25T, 1 pc.

In stock
Order now and it will be sent today 14 May 2024
Pay in three parts of €48.97 with
Power HD Servo
Product code PWHGTS-6
EANcode: 8719697087327

€149.90 €146.90

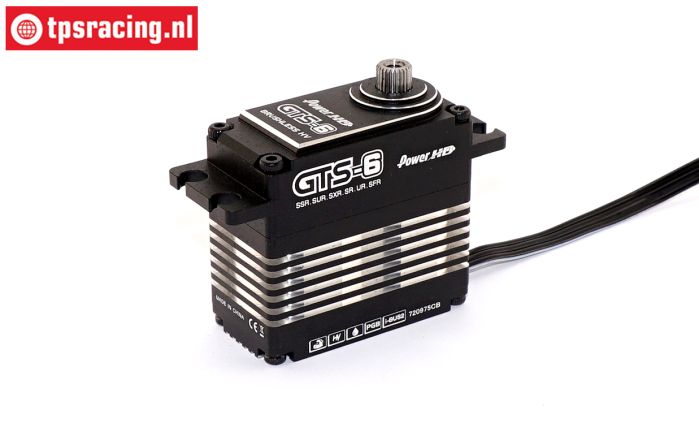

Power HD GTS-6 HV Brushless servo 25T

This Power HD GTS-HV Brushless servo line is the latest digital servos of the latest state of innovation.

Particularities:

  • The new GTS models support Flysky's i-BUS2 protocol, which the two top brands have developed together.
  • The 4-pole brushless motors offer faster response, higher heat resistance and a long service life.
  • The GTS series supports the Power HD PG-CB63 program box.
  • Fully machined aluminum housing for maximum cooling and performance

Power HD GTS-6-HV Brushless servo is currently the strongest, fastest and most robust all-metal waterproof servo available. Due to the very fast and strong Brushless motor, double ball bearings and a stainless steel gear transmission, it is an absolute must for those who appreciate that little bit extra. With a speed of 0.08 seconds and a pulling force of 70 kilos, it is a top servo!

This servo is very suitable as a gas/brake servo in the most diverse 1/5, 1/6 and 1/7 models. But due to the speed of 0.8 seconds and more than 70 kilos of pulling power (at 8.4V), also very suitable for 1/8 and 1/10 models as steering servo!. The 25T servo arm connection allows you to use the most common servo levers.

Technical data:

  • Torque at 6.0 V: 52.0 kg-cm
  • Speed at 6.0 V: 0.12 sec/60 degrees
  • Torque at 7.4 V: 66.0 kg-cm
  • Speed at 7.4 V: 0.10 sec/60 degrees
  • Torque at 8.4 V: 70.0 kg-cm
  • Speed at 8.4 V: 0.08 sec/60 degrees
  • Voltage: 6.0 ~ 8.4 DC Volts
  • Cable length: L30 cm
  • Weight: 78 grams
  • Servo arm: 25T
  • Ball bearings: Yes 2 x
  • Gear type: 7075 + Steel
  • Operating temperature: -20℃ ~ 60℃
  • Operating frequency: 1520μs / 1666hz
  • Dimensions: L40.7-W20-H38.3 mm
  • Max current: 7.5A
