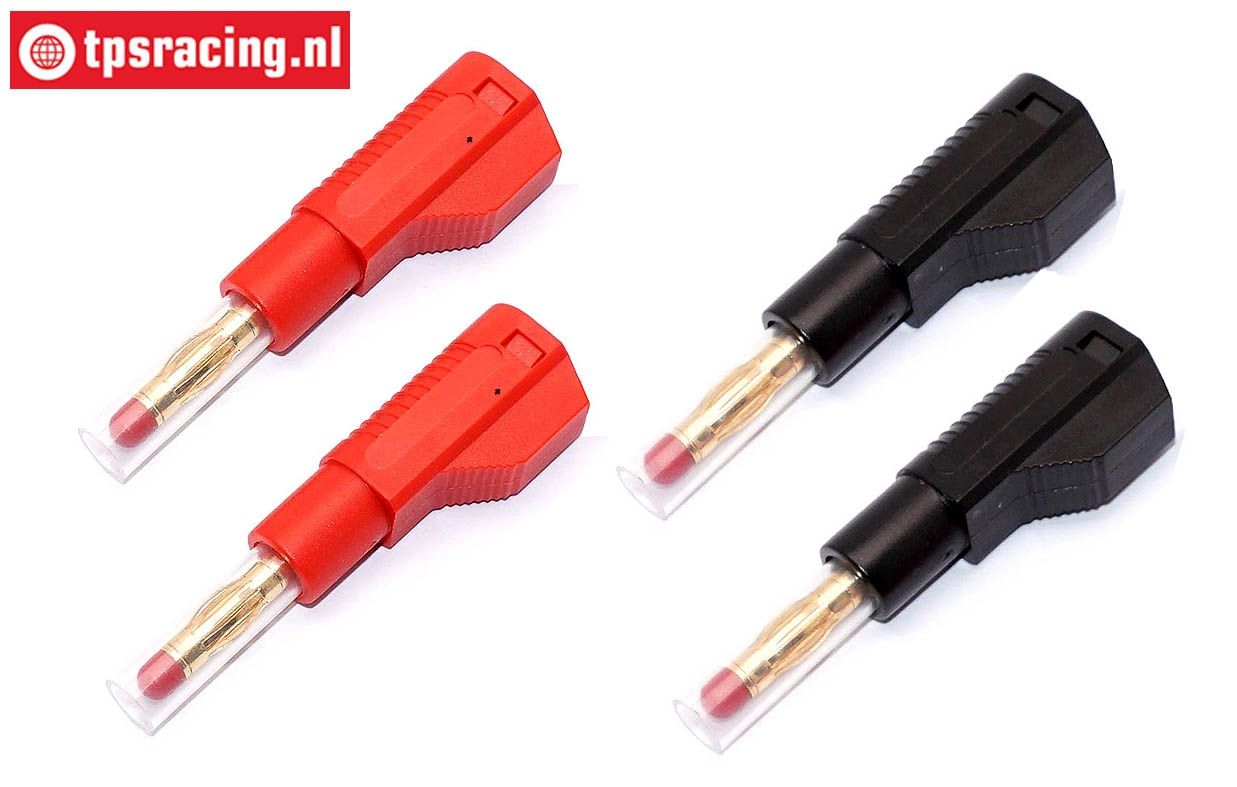

Banana Secure Gold plugs

Very high quality banana plug with protection. The pin of the plug is protected by a clear plastic sleeve. When the plug is not connected, a short circuit or contact with the connected battery can never be made!

The plug can also be stacked so that multiple connections can be made.

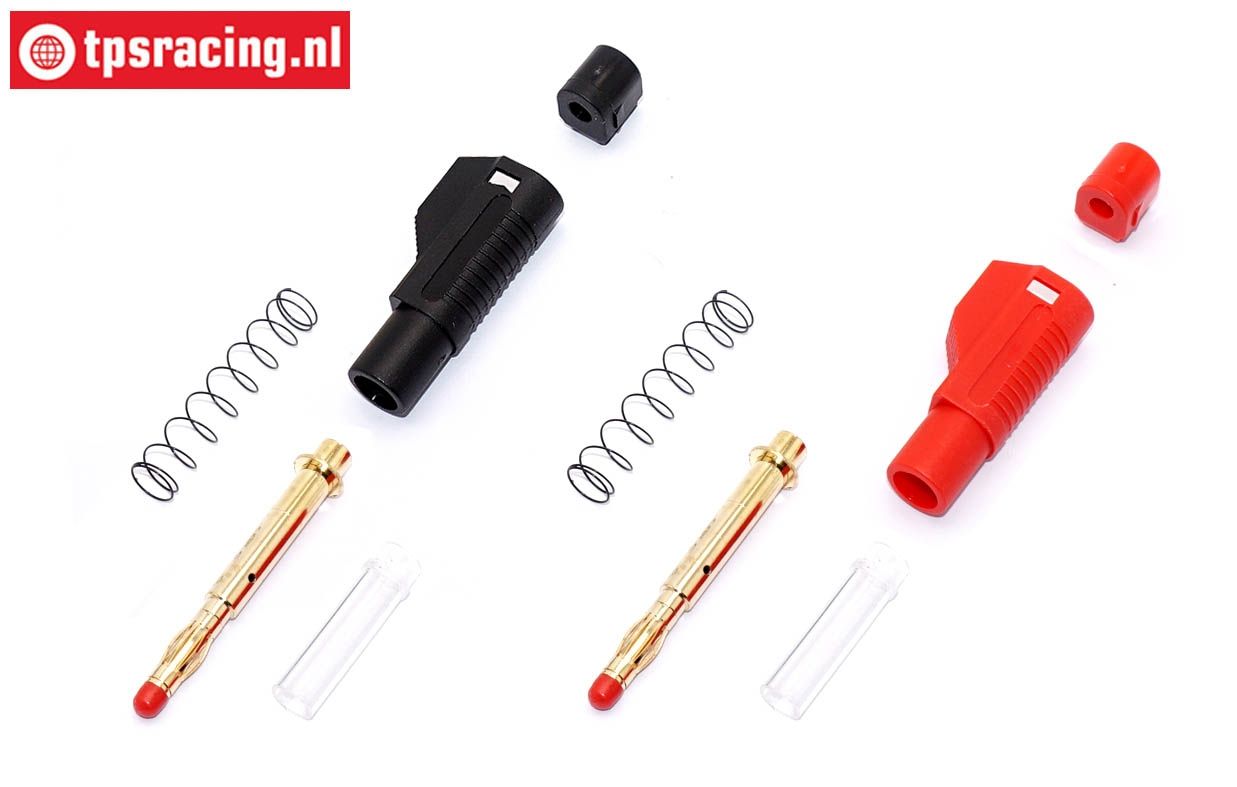

Assembly:

• 1) Solder the cable against the round part of the plug, (see red arrow)
• 2) Slide the spring 3 over connector 4
• 3) Slide the protective sleeve 2 over the plug 4 with the raised edge in spring 3
• 4) Slide the parts 2, 3 and 4 fully assembled from the back into the holder 1
• 5) Now push cap 5 into the back of the holder

Technical data:

• Diameter of connection pin: Ø4 mm
• Total plug length: L56 mm
• Maximum wire thickness diameter: Ø4 mm

Content:

• 2 x Red Gold Secure banana plug
• 2 x Black Gold Secure banana plug
