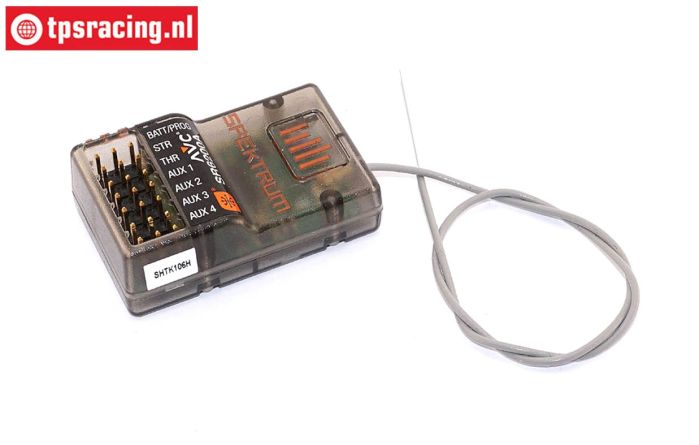

Spektrum SR6200A receiver

The Spektrum™ SR6200A is a 6-channel DSMR receiver based on DSMR® technology, delivering fantastic range and response along with unsurpassed signal security. The AVC® technology (Active Vehicle Control™) increases your stability on rough terrain. Compatible with innovative Smart technology, the SR6200A receiver also provides real-time telemetry data when used with a Smart ESC and Smart battery.

Functions:

• 6 Channel DSMR / DSM2 Receiver
• Compact size
• Long antenna for better range and reception
• Full range telemetry capabilities with Spektrum Firma Smart ESC
• AVC technology requiring additional channels for lights, shift servos and other accessories
• Steering priority gives the driver full control
• Fully adjustable - set the exact amount of stability you want or turn it off if you want
• Water-resistant "Reliakote" coating protects electronics
• Works with any RC car, truck or buggy
• Compatible with all DSMR transmitters

Smart Throttle:

• The throttle port of this Spektrum SR6200A receiver includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed controller is connected and the throttle port will start to operate in Smart throttle mode. Paired with Smart ESC and Spektrum Smart LiPo batteries, the SR6200A can transmit a host of useful telemetry and battery data without additional modules, sensors, or wires. If a standard ESC or servo is connected to the throttle port of the SR6100AT receiver, the throttle port will operate normally like any conventional receiver.

AVC technology:

• With the SR6200A drivers get stability control for EVERY vehicle in their collection! You can use the stability control of AVC™ technology (Active Vehicle Control) in any vehicle by adding the SR6200A receiver and pairing it with an AVC-compatible transmitter. AVC technology provides a more enjoyable driving experience by managing the vehicle's handling and attitude. This translates into more control for you and a more manageable vehicle in all driving environments.

Bind and Calibrate:

• On first installation after the first binding, the model must be configured for servo direction, trim and direction. Next, the receiver must be calibrated.

Method:

• Press and hold the bind button on the receiver,
• Turn on the receiver. The orange LED will flash to indicate that the receiver is powered on and in bind mode,
• Release the bind button after the orange LED lights up,
• Put your transmitter in bind mode.
• The binding process is complete when the orange LED on the receiver remains lit.
• At this stage the receiver is connected but needs calibration,
• Trigger the transmitter to full throttle, pause and return the trigger to center.
• Push the transmitter trigger back to brake fully, pause and return the trigger to center.
• Turn the handlebars of the transmitter all the way to the right, pause and return to center.
• Turn the handlebars of the transmitter all the way to the left, pause and return to center
• The orange LED flashes to confirm the settings.
• Turn off the vehicle to complete the bonding and calibration process.

Specifications:

• Number of channels: 6
• Modulation: DSMR-DSM2
• Voltage: 3.5~9.6 volts
• Antenna length: 120 mm
• Dimensions: L39-W22- H14 mm
• Weight: 9.3 grams
