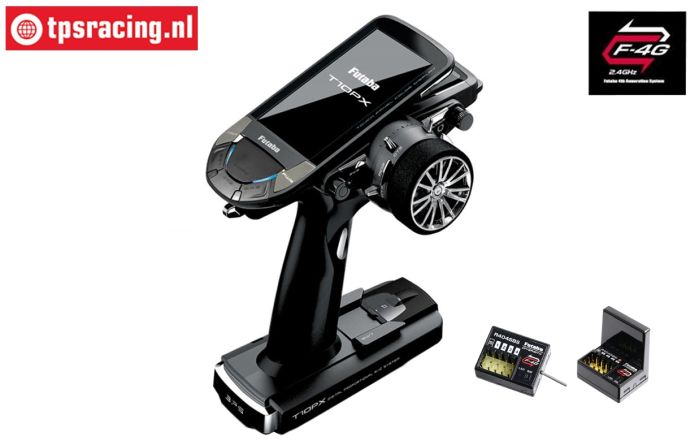

FUTABA T10PX

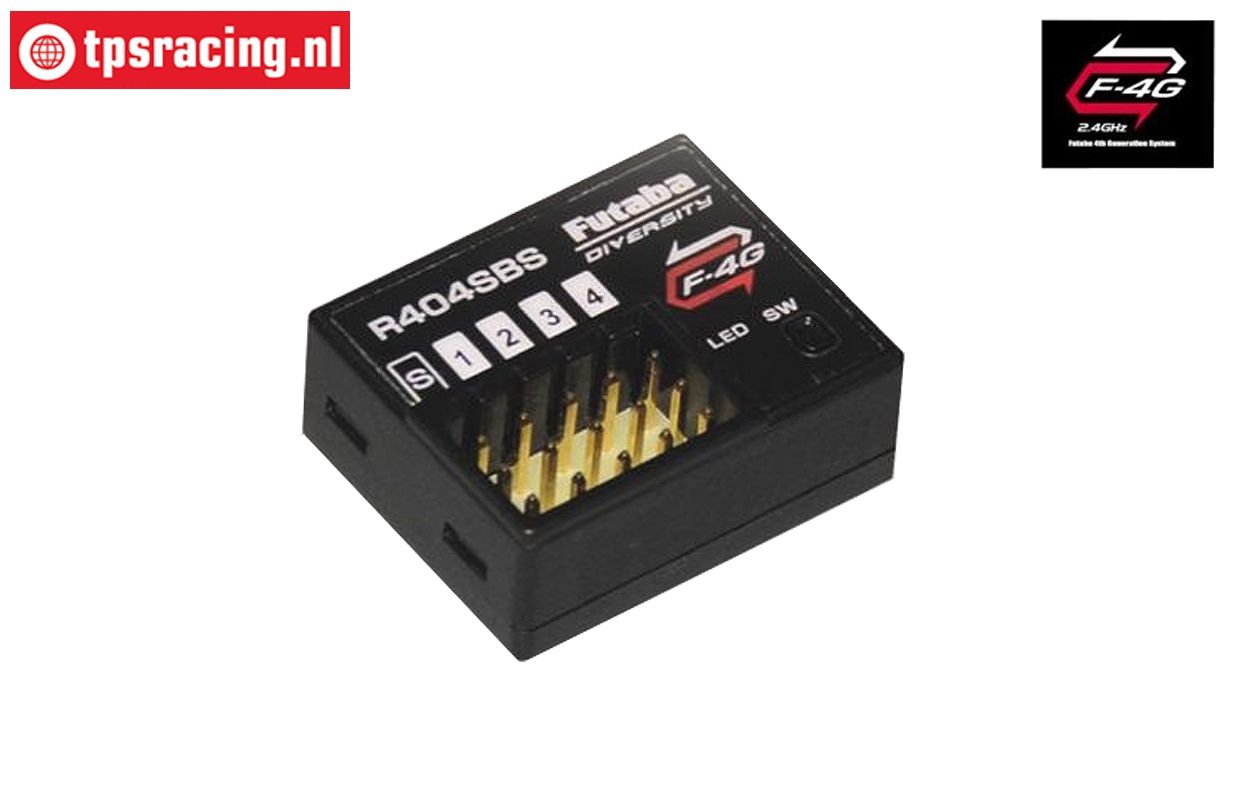

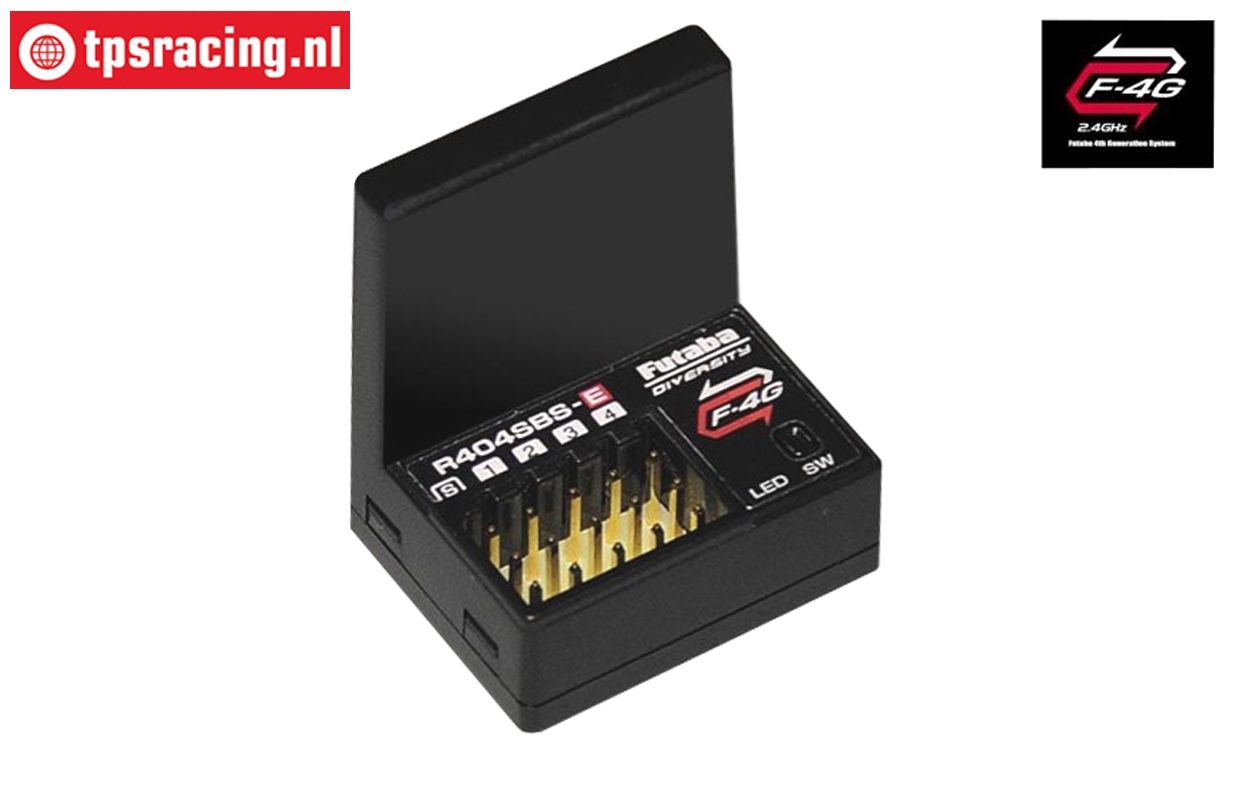

Futaba just released the latest news that the new fourth generation steering wheel remote control, the FUTABA T10PX (F-4G), will be released soon, including new generation receivers the R404SBS and R404SBS-E.

Futaba's high-end model 7PX-series has been seen by many as THE best steering wheel transmitter there was, it is now being superseded by the new T10PX.

With the new communication F-4G (Futaba 4th Generation System) it has improved the whole transmission system and become even faster! In addition, the telemetry communication can now be fully exploited without delay or other problems, which was not possible with the T-FHSS SR communication.

The new "Feeling" feature makes it feel like it fits any driver, supporting up to 10 channels that will make the hearts of all true scale enthusiasts beat faster. Enjoy Futaba's best model yet!

The 10PX can be used in the following configurations:

Particularities:

• 10 channels F-4G
• 7/4 channels S-FHSS/T-FHSS
• Suitable for F-4G, T-FHSS, S-FHSS and MiniZ
• Frequency 2.4 Gig, 100 mWatt
• Voltage 6~7.4 volts (NimH, Life and Lipo)
• Weight 580 grams
• Lightest in its class and high balance design
• Left- right-handed use
• Fast Response F-4G New System Installed
• New function for customizing the response "Feeling"
• Supports up to 10 channels
• Wide viewing angle full-color LCD screen
• Menu icon adopted
• Can be used as a game controller by using an external USB output
• New Wheel Unit / APA / APA Angler / Trigger Adopted
• Replacement mechanism for gas and steering spring adopted
• New shape grip rubber with multiple positions
• Shift lever switch + bottom switch + 3 position switch
• Supports left-handed specifications
• Large wheel
• Optional Lipo Battery 2800 mHa can be used
• When using full channel with T10PX use S.BUS2 servo or SBD-2 for S.BUS2 port of R404SBS/R404SBS-E

Features-Specs:

• Adjustable system menu
• Display display settings
• Full System Information
• Voice Control
• Battery settings
• Date and time
• LED Settings
• Adjuster
• Receiver update
• Servo update

Model menu:

• Select model
• Model copy
• Model Name
• Model removal (on SD card)
• Reset data
• Model type
• New function
• Settings menu:

Receiver settings:

• Servo Display
• Throttle Mode
• Backwards
• Sub trim
• End point
• Fail save function
• Gear
• Trim / choose settings
• Switch settings
• Condition
• Idol up
• D/R, ATL
• Channel Limiter
• Channel Settings
• Race menu
• Curve (EXP) 111
• Speed
• Traction Control
• A.B.S.
• Get started
• Engine failure
• Feeling * New Feature

Mixer menu:

• Handlebar mixer
• Brakes mixer
• Mix gyro
• 4WS mixer
• Double ESC
• CPS mixer (1.2.3)
• Tank mixer
• Mix program (1.2.3.4.5)
• Tilt mixer

Telemetry menu:

• Telemetry system
• Telemetry
• Sensor list
• Sensor menu

Accessory menu:

• Timer
• Lap list
• S.BUS servo
• MC (ESC) link
• Gyrolink
• Index table
• Gear ratio table
• Home / ES1 / ES2 / ES3 Button Settings
• Home screen display settings

Additional products:

• 2800 mHa Lipo battery
• 220 volt Lipo charger

Matching Sensors:

• Temperature SBS/01T for small cylinder heads.
• Temperature SBS/01TE for E-motors.
• Speed SBS/01RM 360~100,000 rpm.
• Speed Brushless SBS/01RB 360~300,000 rpm.
• Voltage SBS/01V voltages up to 100V.
• Current SBS/01C voltages up to 70V, capacity and consumption
• GPS SBS/02G measures altitude, vario, speed, distance and position
