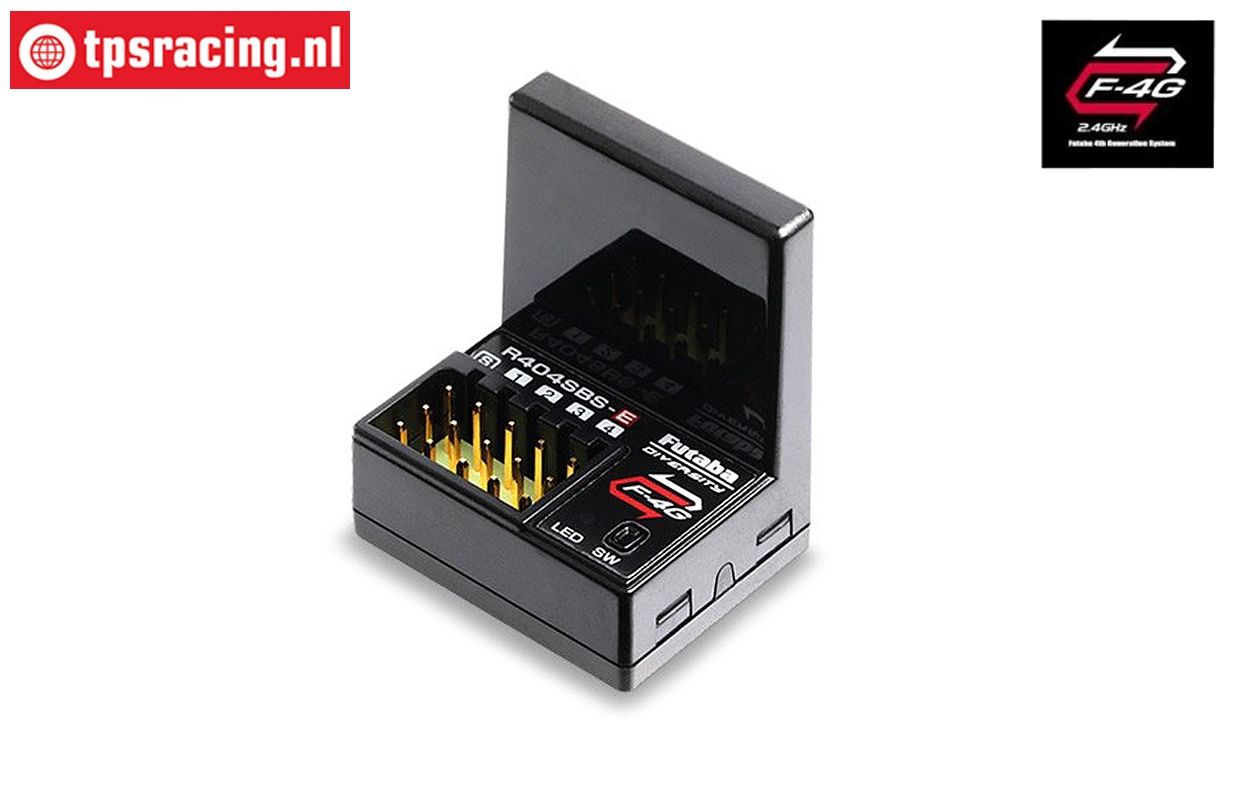

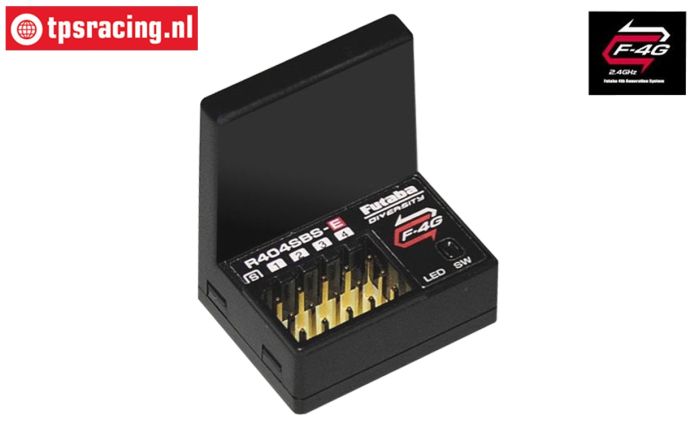

Futaba R404SBS-E Receiver

The new Futaba R404SBS-E is a high-response receiver using Futaba's ultra-fast new system. This receiver has been specially developed to be used in combination with the new T10PX transmitter for use in electrically powered models.

Equipped with a double antenna.

Technical data:

• Receive frequency: 2.4GHz band
• Telemetry Receiver RF Output Power: 2.2 mW EIRP
• Voltage: 3.7V ~ 7.4V
• System: F-4G System, S.BUS2 System
• Size: L25.5-W20.7-H10.6 - including antenna housing 30.5 mm
• Weight: 7.2g

Matching Sensors:

• Temperature SBS/01T for small cylinder heads.
• Temperature SBS/01TE for E-motors.
• Speed SBS/01RM 360~100,000 rpm.
• Speed Brushless SBS/01RB 360~300,000 rpm.
• Voltage SBS/01V voltages up to 100V.
• Current SBS/01C voltages up to 70V, capacity and consumption
• GPS SBS/02G measures altitude, vario, speed, distance and position
