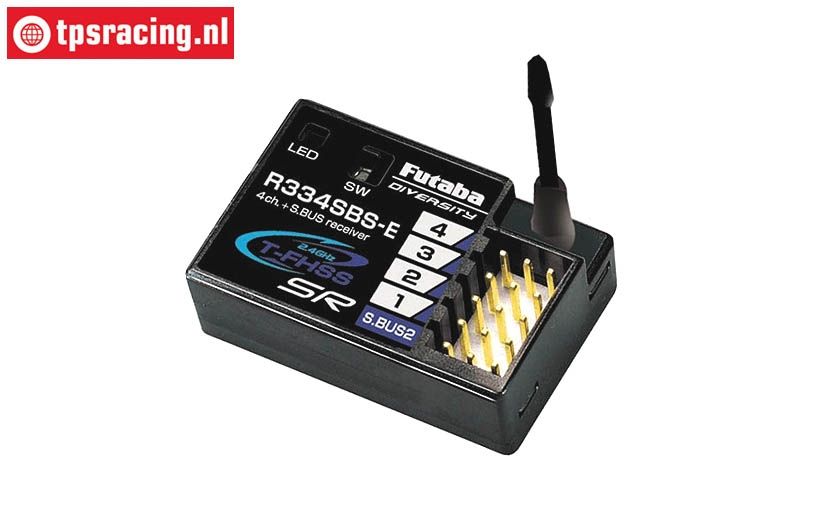

Futaba R334SBS-E Receiver

The Futaba R334SBS-E is a compact and lightweight T-FHSS SR 2.4 GHz receiver with integrated telemetry function and diversity antenna for electric vehicles only. Due to the installed short antenna you need not worry about the antenna installation. The range is only marginally shorter than the R334SBS.

The transmission type T-FHSS SR is currently the fastest transmission technology on the market ...! The new T-FHSS SR (Super Response) system is faster than any previous transmission type on the market. At 2.45 ms, the response speed in the model has become noticeably faster (T-FHSS = 4.15 ms).

Via the S.BUS2 connection, S.BUS2 sensors can be connected and up to 32 telemetry data sets can be transmitted. The integrated telemetry transmitter in the receiver transmits the telemetry data present at the S.BUS2 connection to the transmitter, which displays, announces or acoustically outputs this on the display.

The receiver is particularly suitable for use in RC cars and boats.

NOTE: When using 7.4V LiPo batteries as the receiver battery, the connected servos must also be rated for this voltage. The receiver has no internal voltage transformer for the servo voltage!

To use the speed of the Futaba SR system, many FUTABA SV servos can be switched to SR mode via the T7PX transmitter. Currently the following servos SR are compatible: BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV & S9373SV.

Highlights:

• 4-channel T-FHSS SR 2.4GHz telemetry receiver with S.BUS2
• Fastest transmission system T-FHSS SR
• Diversity antenna for optimal reception
• Gold-plated plug contacts
• Telemetry function with 32 channels
• S.BUS2 output
• Hi-Voltage
• Suitable for Electric RC C and Electric Boats

Technical details:

• Frequency band: 2.4 GHz
• Transmission power: 10 mW EIRP
• Transmission system: T-FHSS SR
• Number of channels: 4
• S.BUS output: S.BUS2
• Voltage range: 3.7 - 8.4 V
• Dimensions: L33.9 x W22.3 x H11.3 mm
• Weight: 7.2 g

Matching Sensors:

• Temperature SBS/01T for small cylinder heads.
• Temperature SBS/01TE for E-motors.
• Speed SBS/01RM 360~100,000 rpm.
• Speed Brushless SBS/01RB 360~300,000 rpm.
• Voltage SBS/01V voltages up to 100V.
• Current SBS/01C voltages up to 70V, capacity and consumption
• GPS SBS/02G measures altitude, vario, speed, distance and position
