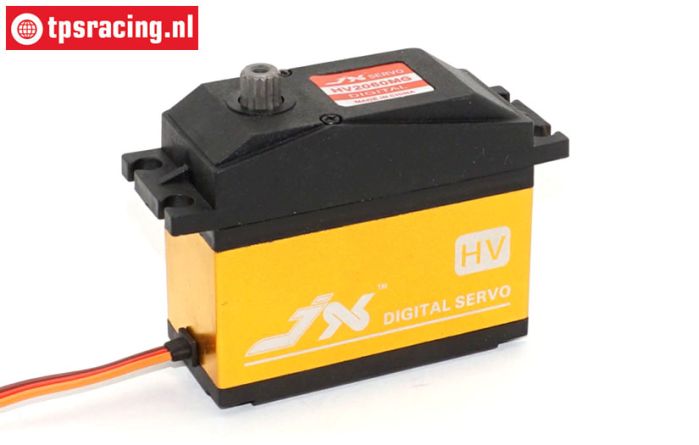

JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.
JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.

JX2060 PDI-HV2060MG Digital Servo 63kg-15T, 1 Pc.

Out of stock
JX Servo
Product code JX-PDI-HV2060MG
EANcode: 8719697059919

€64.90 €59.90

JX PDI-HV2060MG Mega High Power Servo!

Solid, fast high-voltage servo with thick metal gears, double bearings and an aluminum housing so that the motor is optimally gekoelt for the best sustainable performance.

Specification:

  • Torque at 7.4 volts: 65 kilos
  • Speed at 7.4 volts: 0.08 sec/40 degrees
  • Torque at 6.0 volts: 52 kilos
  • Speed at 6.0 volts: 0.10 sec/40 degrees
  • Dimensions: L66 x W30 x H56 mm
  • Splash waterproof
  • Ball beared
  • Special metal gears
  • Servo lever: 15 teeth
  • Servo lever thread mount: M3
  • Weight: 200 grams

All in all an excellent servo protruding above the established order, especially in combination with a strong value proposition. In terms of installation dimensions equal to the Savox S0235, S0236, S0240, S0241, S9010 and S9020 and Spektrum servos.

The voltage may vary between 6.0 and 7.4 volts, so can be used with 5 x 1.2 volt normal cells, or with 2S Li-Fe or 2S Li-Po battery. We recommend, when using older type receiver, to power this servo directly from the battery. For this direct power supply we have a special splitter in our program, TPS0528.

6 Months Warranty, except on Gears
