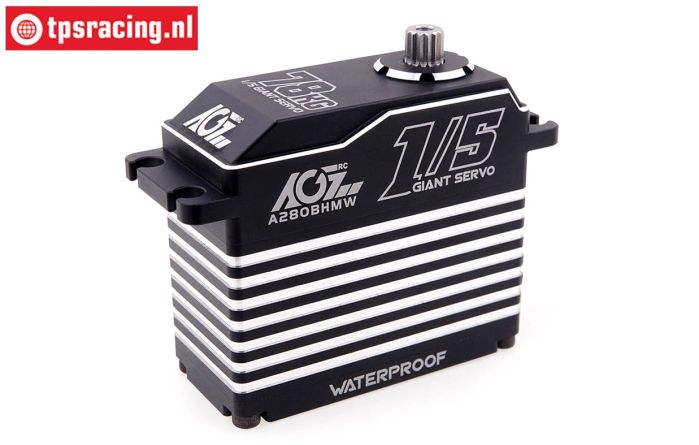

AGF-RC High-End Waterproof Brushless Servo

AGF-RC is a relatively unknown manufacturer for many, but they have been manufacturing servos in the High-End segment for years.

This A280BHMW Brushless servo is currently their absolute top of their Big-Scale series and excels in setting time! One of the first servos to be labeled IP67, which is to say, really waterproof! Furthermore, this servo is made entirely of aluminum, whereby the housing parts are O-rings and sturdy M3 socket screws are attached to each other.

Furthermore, this servo is equipped with Bleu-Tooth, and with their App, that will be released soon, this servo can be programmed completely wirelessly!

Some special features:

• Latest version Brushless motor
• Carbon steel gears
• 5 x Kogelhagerd
• Ulta SMD technology
• Torque of 78 kilos
• Speed on 2S Lipo only 0.05 sec.
• Class IP67, so completely waterproof
• 15 teeth output shaft
• Bleu-Tooth prepared

We also have an aluminum servo bridge TPS2400 for this servo for extra stability. This bridge once again protects the already double-bearing output shaft with an extra bearing.

Specifications:

• Voltage from 4.8 ~ 8.4 Volts
• Power at 6.0 volts: 58 kilos
• Speed ​​at 6.0 volts: 0.07 sec/40 degrees
• Power at 7.4 volts: 66 kilos
• Speed ​​at 7.4 volts: 0.06 sec/40 degrees
• Power at 8.4 volts: 78 kilos
• Speed ​​at 8.4 volts: 0.05 sec/40 degrees
• Dimensions: L66 x W30 x H59 mm
• Cable length: 30 cm
• Plug: Universal (JR & Futaba)
• Servo lever: 15 teeth
• Servo lever attachment: M3
• Weight: 285 grams

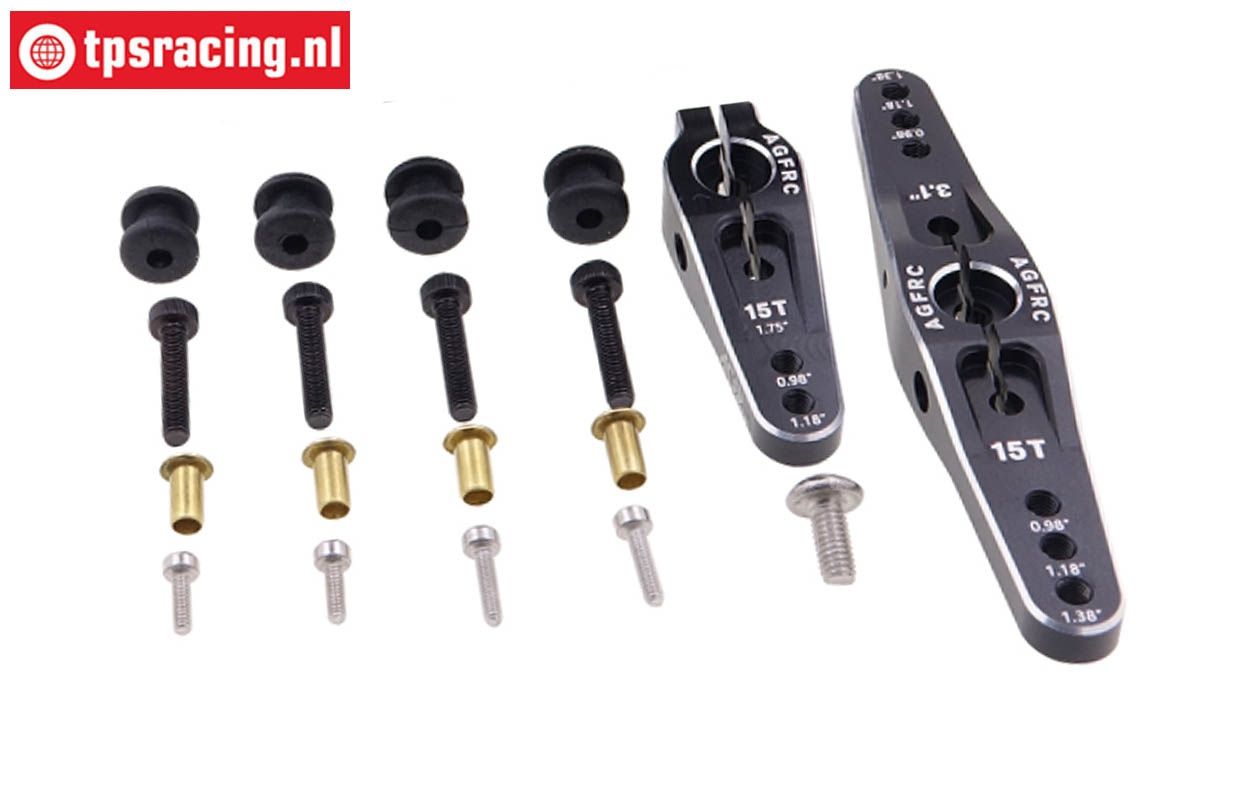

Contents set:

• A280BHMW High End servo
• Single aluminum servo lever
• Double aluminum servo lever
• Fixing material

In terms of installation dimensions the same as the JXB130, JX2060, JX2070, Spektrum S9110, Spektrum S9120, Savox S0235, S0236, S0240, S0241, etc.

The voltage may vary between 4,8 and 8.4 volts, so can be used with 5 cell NiCd, NiMh, or 2S Li-Fe or 2S Li-Po battery. We recommend, when using older type receiver with BEC system, to power this JXB130 Power Servo directly from the receiver battery. For this direct power supply we have a special splitter in our program, TPS0528.

With us with 6 months original factory warranty with the exception of the gears
