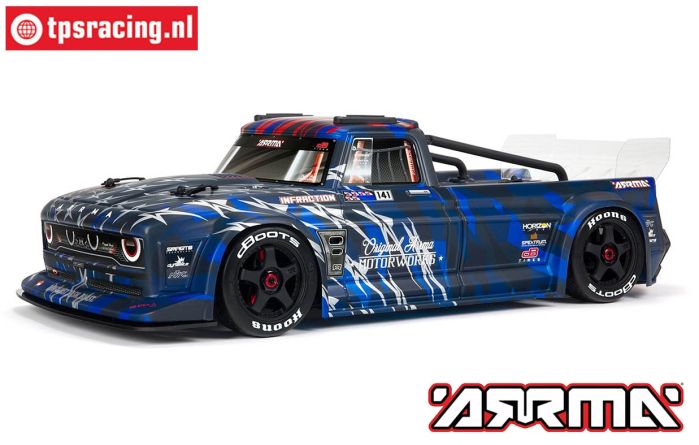

ARRMA INFRACTION 6S BLX RTR V2 with AVC

Pre-Order, Delivery planned beginning 2021

The new Arrma Infraction 6S BLX Brushless 1/7 RTR Electric 4WD Street Truck delivers 4WD traction that allows you to drive on any road, in any situation - loose gravel, asphalt, slippery dirt and short grass, in the sun, rain and ice, in short. lots of driving fun with speeds of up to 130 km / h +!

What's New in the V2?

• New brake with ventilated discs for controlled drifting
• New body clips with rubber fastening
• Bearing support for drive shafts
• New drive shafts
• Brilliant colors
• Spektrum DX3 transmitter with SR6110AT receiver
• Spektrum Firma 4074 2050 Kv Brushless motor
• Spektrum SMART ESC

The INFRACTION 6S BLX has the latest street looks in blue or silver. The body comes from the factory with beautiful stickers and emblems. Thanks to the adjustable wing you can adjust the downforce to your own liking. To further improve aerodynamics, the chassis features a full-width front splitter that balances the downforce distribution. A rear diffuser increases power and grip, so you can hit the corner faster and with confidence.

DESIGNED FOR SPEED

Under the body of the truck is a 3mm anodized aluminum chassis with a central bracket to maximize strength. The heavy-duty 4WD drivetrain features durable steel drive shafts plus all-metal differential drives. The central diff module can be removed by removing just five bolts, making maintenance as quick as the INFRACTION 6S BLX truck itself. A sliding holder allows quick, easy access to the motor, and a double XL battery holder is included. Big-bore, oil-filled shocks on black anodized front and rear shocks keep the dBoots Hoons allroad tires firmly planted for maximum traction. The tires are mounted on 5-spoke wheels with extra durable hubs that can withstand speeds of up to 200 lm per hour!

For the sake of completeness, ARRMA has equipped the INFRACTION 6S BLX with a brushless motor of 2050 kW, a waterproof ESC servo motor and a metal gear servo. The Spektrum DX3 Active radio system features AVC Active Vehicle Control. This allows you to significantly increase the stability so that the car remains stable at extremely high speeds or high jumps. This can be set from 0 to 100%. The only additional items required are two 2S or 3S LiPo batteries with IC5 or EC5 connectors, a LiPo compatible charger, charging bag and 4 "AA" batteries for the transmitter.

Characteristics:

• Suitable for 130+ km / h speeds with 6S power.
• 4WD traction - for maximum grip on asphalt, gravel, slippery dirt or short grass.
• The detailed hood is screen printed and equipped with stickers and emblems
• Adjustable wing allows you to tune downforce the way you want it
• Full-width front splitter balances the forward and reverse distribution of downforce
• Rear diffuser helps generate downforce
• 3 mm plate, anodized aluminum chassis from 6061-T6
• Middle chassis bracket for maximum durability
• Adjustable front and rear body supports
• Easily accessible sliding motor mount for quick motor removal
• Dual XL battery drawers
• Waterproof receiver box
• Heavy duty servo saver
• Heavy-duty 4X4 drivetrain
• Durable steel drive shafts
• Low center of gravity for excellent road holding
• All drive parts made of hardened steel
• Easily accessible 5 bolt differential modules
• Independent suspension
• Large aluminum, large volume adjustable shock absorber
• Black anodized aluminum front and rear shock absorber towers
• 5-spoke wheels and all-road dBoots® Hoons tires
• Super durable wheel hubs for power
• Hub nut O-rings
• Spektrum ™ DX3 ™ transmitter
• Spektrum DSMR ™ SRS6110AT receiver with AVC® Active Vehicle Control ™
• ADS-15M waterproof metal servo
• BLX4074 2050Kv brushless motor with cooler
• Spektrum SMART ESC waterproof
• 2 year limited warranty (see product manual for more information)

Others:

• Estimated assembly time: 1-3 hours
• Ball bearings: complete
• Batteries: Two 2S or 3S LiPo batteries with IC5 or EC5 connectors (sold separately)
• Maximum battery dimensions: (L180 x W55 x H70 mm)
• Hood: Painted and provided with all stickers
• Charger: LiPo Compatible Balance Charger (Sold Separately)
• Chassis: 3mm thick 6061-T6 aluminum
• Type: Ready-to-run
• Differential: three oil-filled metal gears
• Drive: 4WD drive
• Final Gear Ratio: 8.46: 1
• Shock absorber spring for: 4.7 N / m
• Rear shock absorber spring: 6.6 N / m
• Sprocket module: 1.0
• Ground clearance: 15 mm
• Height: 200 mm
• Internal gear ratio: 3.3: 1
• Motor size: 4074 2050Kv
• Motor type: brushless
• Motor sprocket: 18T
• Radio: Spektrum DX3 2.4GHz
• Servos: Steering servo with metal gears
• Shock absorber: Oil filled Big Bore adjustable with aluminum housing
• Speed Control: 6S brushless compatible with IC5 battery plug
• Spur Gear: 46T
• Suspension: Independent
• Tire compound: white
• Vehicle type: Street bash truck
• Water resistant: Yes

Dimensions:

• Scale: 1/7
• Length: 695 mm
• Width: 310 mm
• Height: 200 mm
• Wheelbase: 406 mm
• Ground clearance: 15 mm
• Front track: 308 mm
• Rear track: 305 mm
• Weight: 4.8 kg
• Wheel diameter: 83 mm
• Band diameter: 100 mm
• Band type: dBoots Hoons
• Wheel flights: 17mm hexagon
• Wheel type: five-spoke
• Wheel width: 43 mm

What do you get?

• ARRMA 1/7 INFRACTION ™ 6S BLX V2 RTR Truck
• Instructions

What else do you need?

• 2 x 2S or 3S Hardcae Li-Po batteries with IC5 / EC5 connectors
• Suitable Li-Po charger
