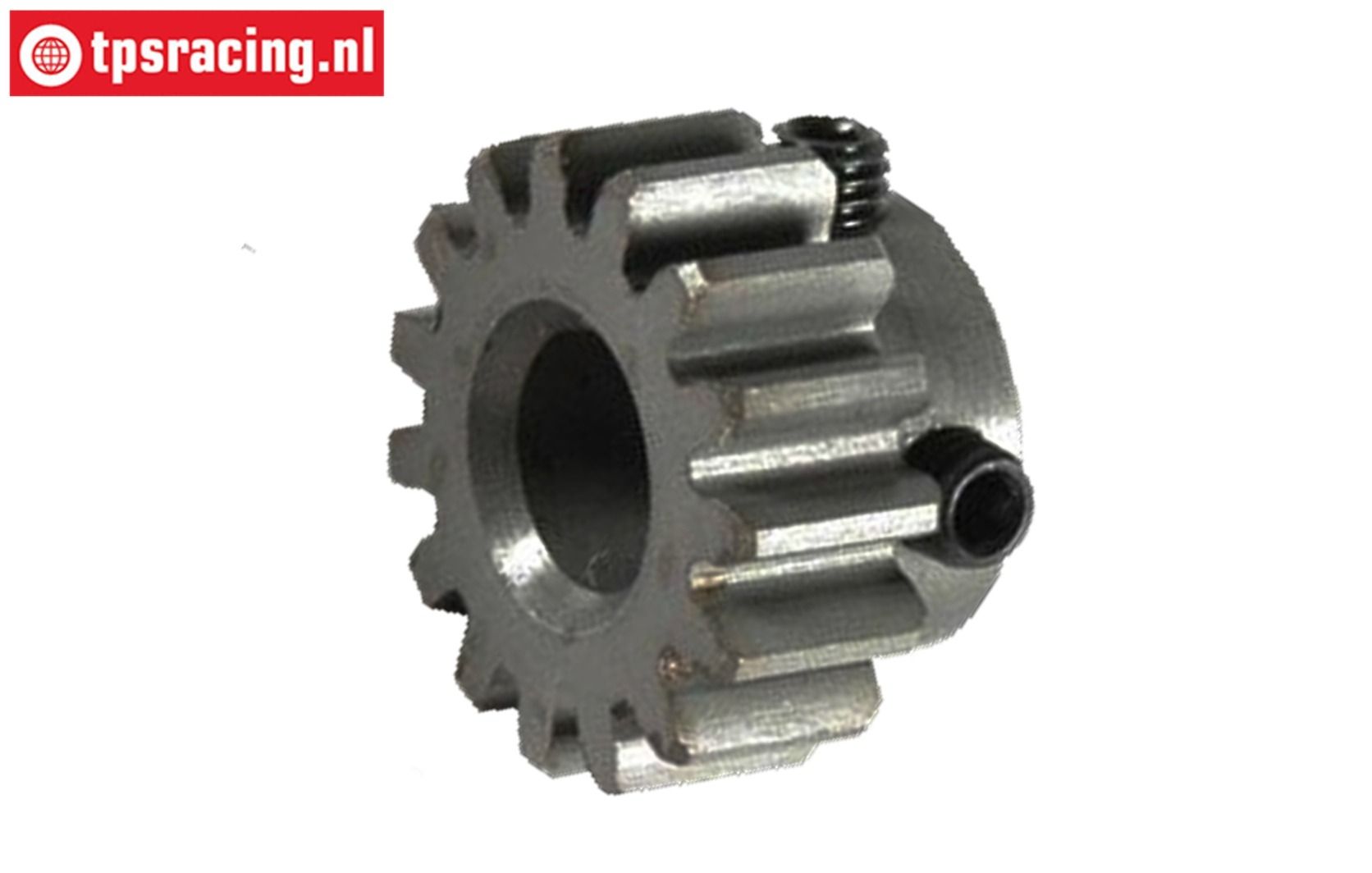

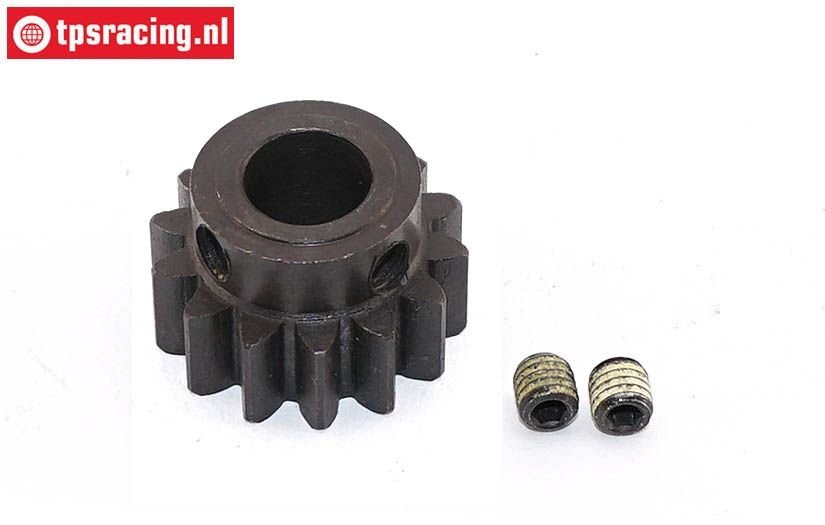

FG Modellsport hardened steel gear 14T FG66217

This gear is for the transmission from the lay shaft to the differential of all 4WD models of FG Modellsport. This gear has a countersunk side so that it can be mounted onto the shaft with a countersunk Allen bolt.

Mounting material:

• M5-L5 mm Grub screw: FG6730/51
• M6-L16 mm countersunk screw: FG6723/16

Outside diameter equals;

• 14T Steel FG6046
• 14T Steel FG66217
• 15T Steel FG66217/01

In combination with:

• 48T Steel FG6048
• 48T Steel FG6048/02

Dimensions:

• Bore: Ø10 mm
• Outside diameter: Ø25.6 mm
• Teeth width: W9 mm
• Module: 1.5
