Aluminum 4-folded Locking differential

Suitable for all FG 1/5 and 1/6 2WD on-road models.

This differential measures the grip difference on both wheels and adjusts the locking, the pre-locking is adjustable from 0 to 90% on the the outside.

The output shafts are ball-beared, the housing is sealed with O-rings so that the grease or silicone oil remains in the diff.

It is important that the output shafts are lubricated before assembly with Molykote grease TPS0230. Furthermore, after a long time the play between the gears can be filled up again by steel spacer discs FG8495.

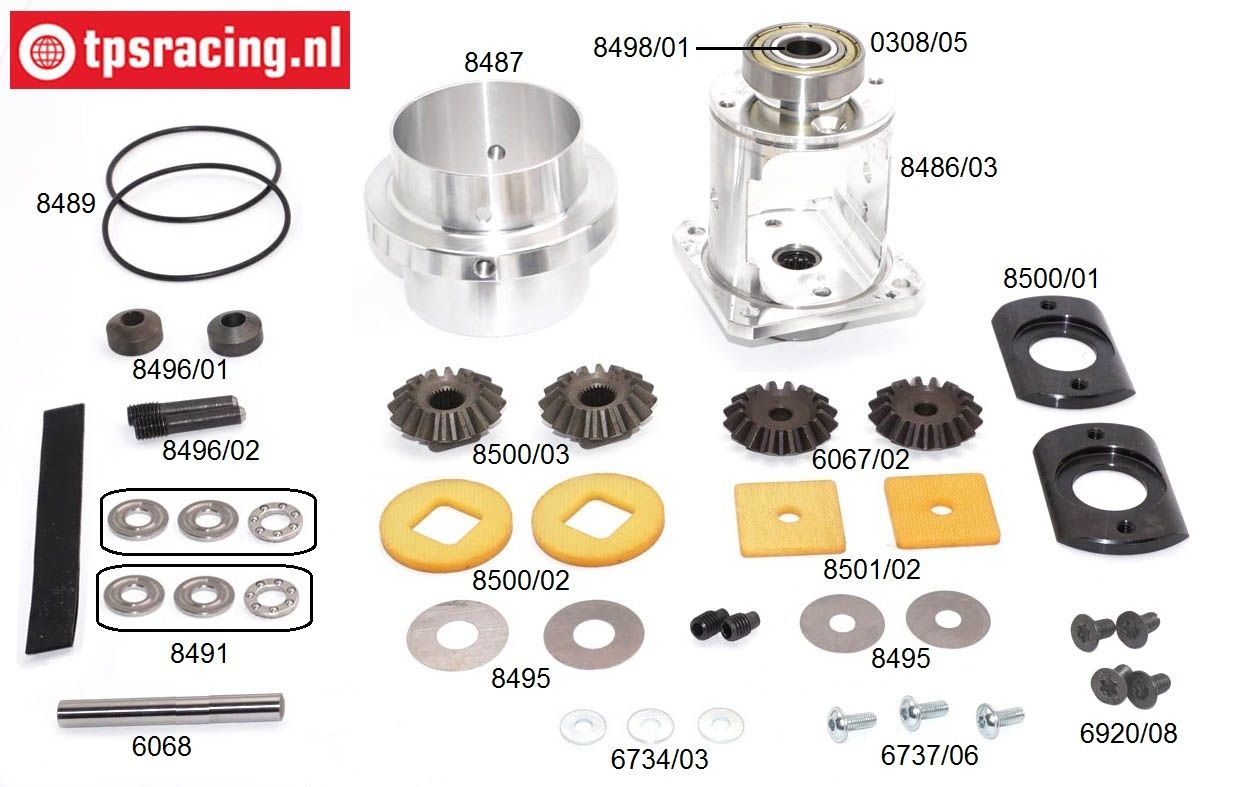

Suitable out shafts:

• FG6069/01
• FG6069-02

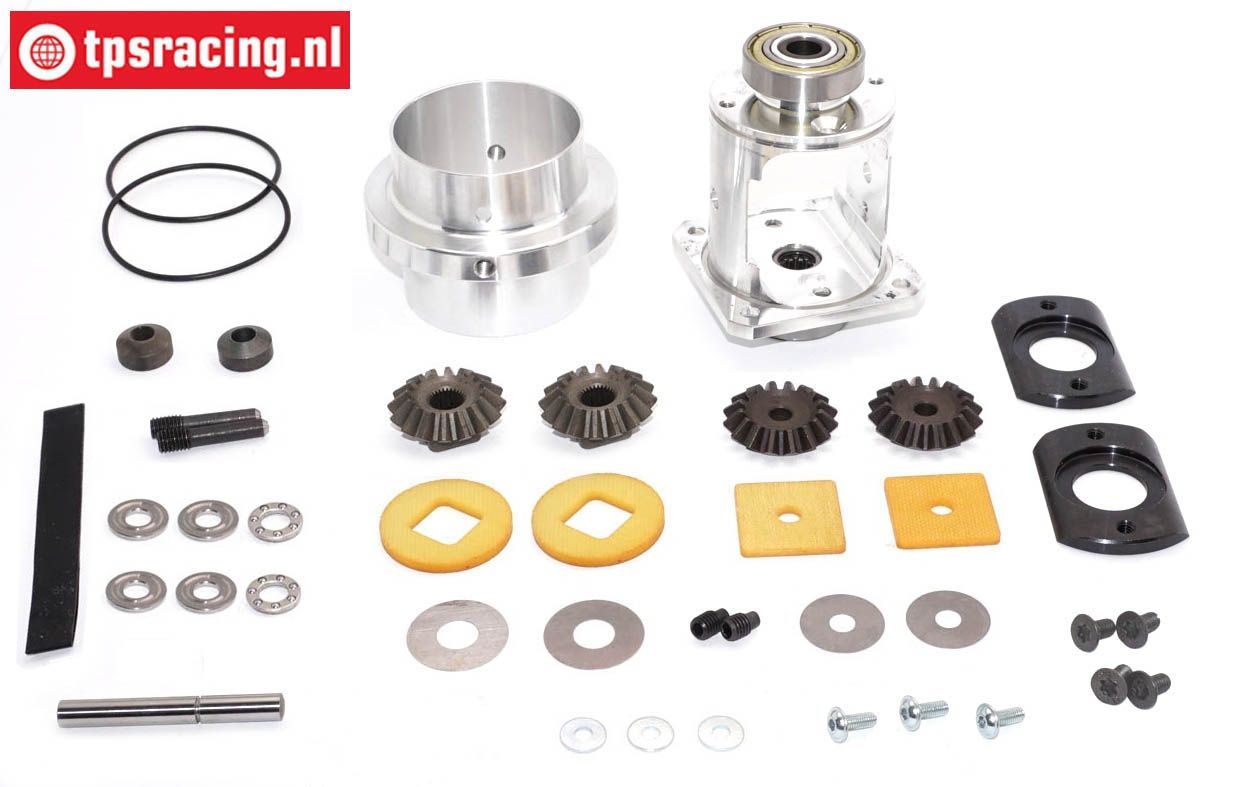

This set is supplied as a kit to build.

FG8505 is a handy tool for mounting the internal gears.
