Standard FG shock absorber Short

Suitable for springs with an inner diameter of 21 mm. Set comes without silicone oil and springs.

Technical data:

• Suspension travel: 26 mm
• Minimum length: L85 mm
• Maximum length: L125 mm
• Diameter: Ø20 mm

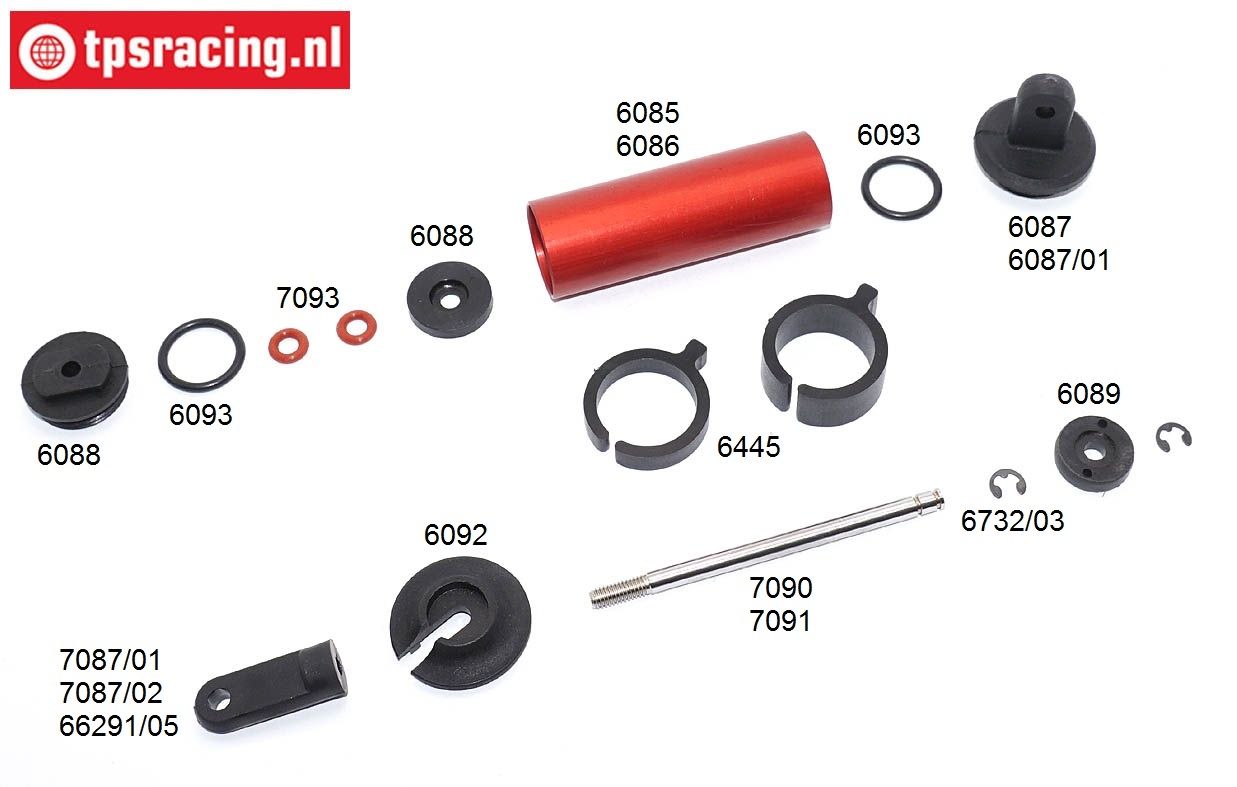

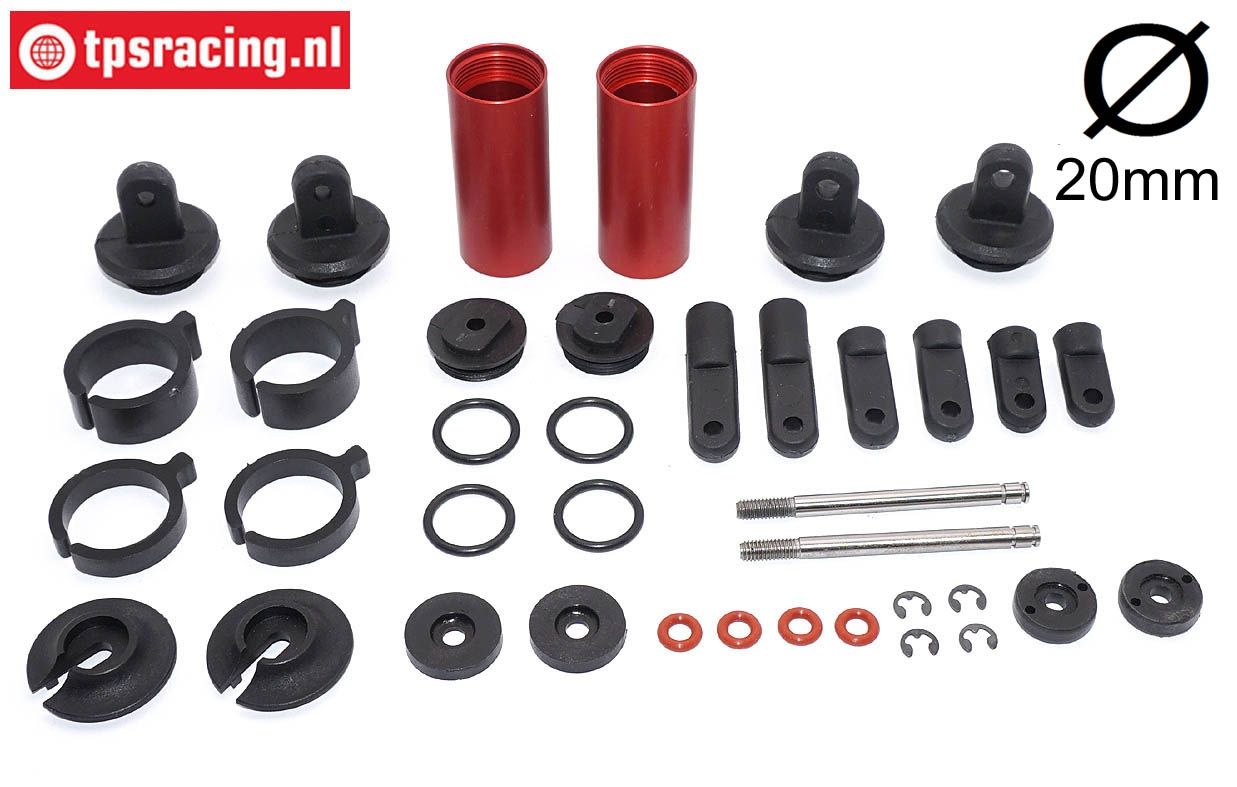

Content Set:

• 2 x FG6085 Shock housing short
• 2 x FG6087 Upper shock closure Ø4 mm
• 2 x FG6087/01 Upper shock closure Ø5 mm
• 2 x FG6088 Shock closure bottom
• 2 x FG6089 Shock piston Ø15 mm
• 2 x FG6093 Shock closure O-ring
• 2 x FG6092 Shock spring disk Ø20 mm
• 4 x FG6445 Spring pressure setting ring
• 2 x FG66291/05 Lower shock mounting L36 mm
• 2 x FG6732/03 E-clip Ø3.2 mm
• 2 x FG7087/01 Lower shock mounting L26 mm
• 2 x FG7087/02 Lower shock mounting L22 mm
• 2 x FG7090 Shock rod short
• 2 x FG7093 Shock O-ring Ø4 mm

Recommended silicone oil:

• FG66295/100
• FG66295/150
• FG66295/200
