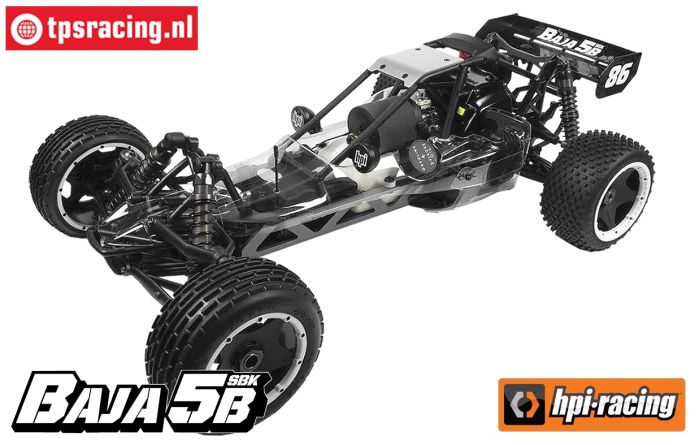

HPI Baja 5B SBK Self Build Kit HPI160323

Build your own original authentic HPI Baja 5B, we've been listening to you, the one and only original HPI Baja 5B is back as a kit! This HPI SBK collection consists of an electric and fuel powered model. When the HPI Baja 5B buggy was first introduced, Large-Scale RC models were very expensive and quite difficult for the average RC hobbyist to experience this fantastic scale. Using highly durable parts and innovative design features, HPI brought large-scale off-road to new enthusiasts and ushered in a new RC era! Now you can rebuild and experience this legend! Experience the thrill and excitement of building a car that ends up being over 80cm (almost 32in) long and weighing almost 10kg (over 21lb)! Choose your own engine, exhaust, air filter and electronics parts!

With extra strong drivetrain components such as the viscose torque differential, super durable composite gears with internal damping and all-metal drivetrain, the HPI Baja 5B is ready for your choice of 23 to 32cc two-stroke engine. The HPI Baja 5B SBK is also equipped with oversized and super strong suspension parts, with great HPI durability! With its expertly engineered molded composite suspension plus extra-long adjustable HD shocks and solid three-piece nylon beadlock wheels, this Baja 5B SBK is ready for racing at full speed on any off-road track! The 4mm thick 6061 aluminum Monocoque chassis gives the HPI Baja 5B the classic desert racing buggy look. Precisely bent to shape for maximum strength, the chassis forms the mounting points for the engine and suspension and forms the backbone of the car. Precise steering is provided by a double bell rack and pinion with camshaft type servo saver. Aluminum parts are anodized in cool bronze and the classic Baja Desert Racer clear polycarbonate body is included in the HPI Baja SBK kit, ready for your custom color scheme with your Lexan color of choice.

Chassis Design:

The narrow Monocoque chassis made of rigid 4mm 6061 aircraft aluminum gives the HPI Baja 5B SBK a classic desert Race buggy look and extreme stiffness and durability. The U-shaped chassis is protected at the rear with a thick plastic skid plate for extra protection of the engine and drivetrain. The tube roll cage is made of impact resistant nylon and has a real aluminum roof to continue the classic look. The roll cage is fully functional and protects the engine and interior from crash damage. The roll cage, radio box, body panels, wing, underbody and gearbox are all mounted with quick access clips for easy maintenance.

Specifications:

1/5 scale Off-Road Buggy kit
Free choice from 23 to 32cc RC engine
Free choice of electronics
Closed RC Box
Transparent Baja hood
Adjustable HD shock absorbers
Monocoque chassis
Low center of gravity for superior handling
Long suspension travel
Oil Filled Viscose Differential
All Terrain Tires
Beadlock wheels with metal insert
Aluminum rear shock tower
Protective plates made of hard plastic
Adjustable rear wing
Quick access to all critical maintenance points
Dual bell crank steering
Camshaft type servo saver
Race spec Hex socket hardware
Bronze anodizing
Full set of rubber sealed ball bearings

Specification Chassis:

Total length: 817 mm
Height: 255mm
Width front: 460 mm
Rear width: 480 mm
Track width for 395 mm
Rear track: 400 mm
Wheelbase: 570mm
Row height: 76 mm
Front suspension travel: 95 mm
Rear suspension travel: 100 mm
Weight: 9.6kg (21.3lb)
Adjustable front camber
Camber setting for: with shims
Camber setting rear: with screw
Caster for: adjustable with shim; 22~25.5~29 degrees
Toe rail adjustment for: with screw
Toe track back: inserts 0~4 degrees
Aircraft Aluminum 6061 T6 Monocoque Chassis
Double wishbone suspension with adjustable roll center front and rear
Drive system: HD metal gears with sealed gearbox
Gear ratio: 8.382:1
Differential: Viscose torque control with silicone oil
Shock absorber: HD aluminum adjustable
Wheel type: 3-piece beadlock design with metal hub

While building an HPI SBK (Self Build Kit) you have a completely free choice of motor and electronics, such as servos, transmitter and receiver and battery.

What do you need?
