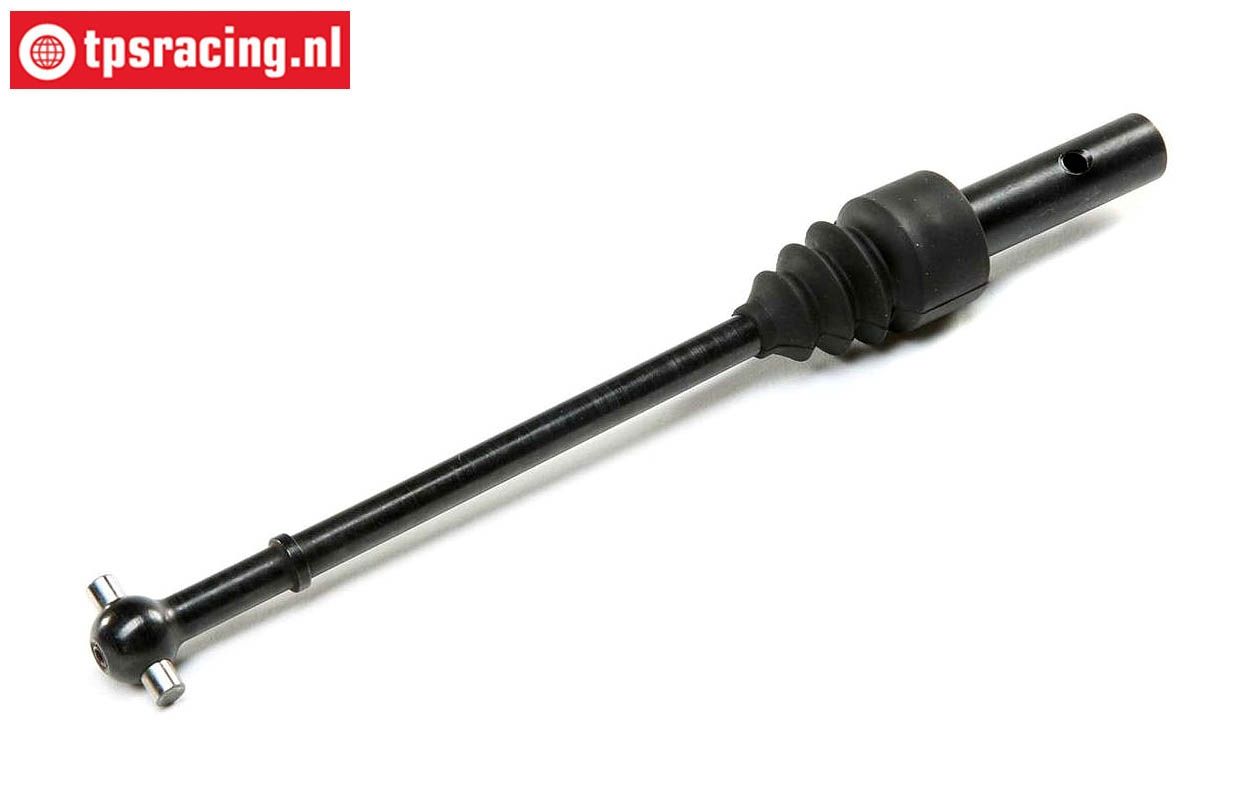

LOSI DBXL-E 2.0 Front Assembly

For the connection between the front differential to the wheels with Ø5 mm pin.

Suitable for:

• LOSI DBXL 2.0
• LOSI DBXL-E 2.0

Replacing the pins:

• Remove the Allen screw completely
• Vise so far that the pin just fits between the jaws
• Place the shaft on the vice, have it held by a second person if necessary
• Drive the pin out of the shaft with light hammer blows
• Use Lock-Tite 268 to install the new pin!
• When installing the new pin, make sure the flat portion in the pin rests on the vise.
