Spektrum SPMXSE2130M Firma 130A 2S-4S Brushless Smart ESC

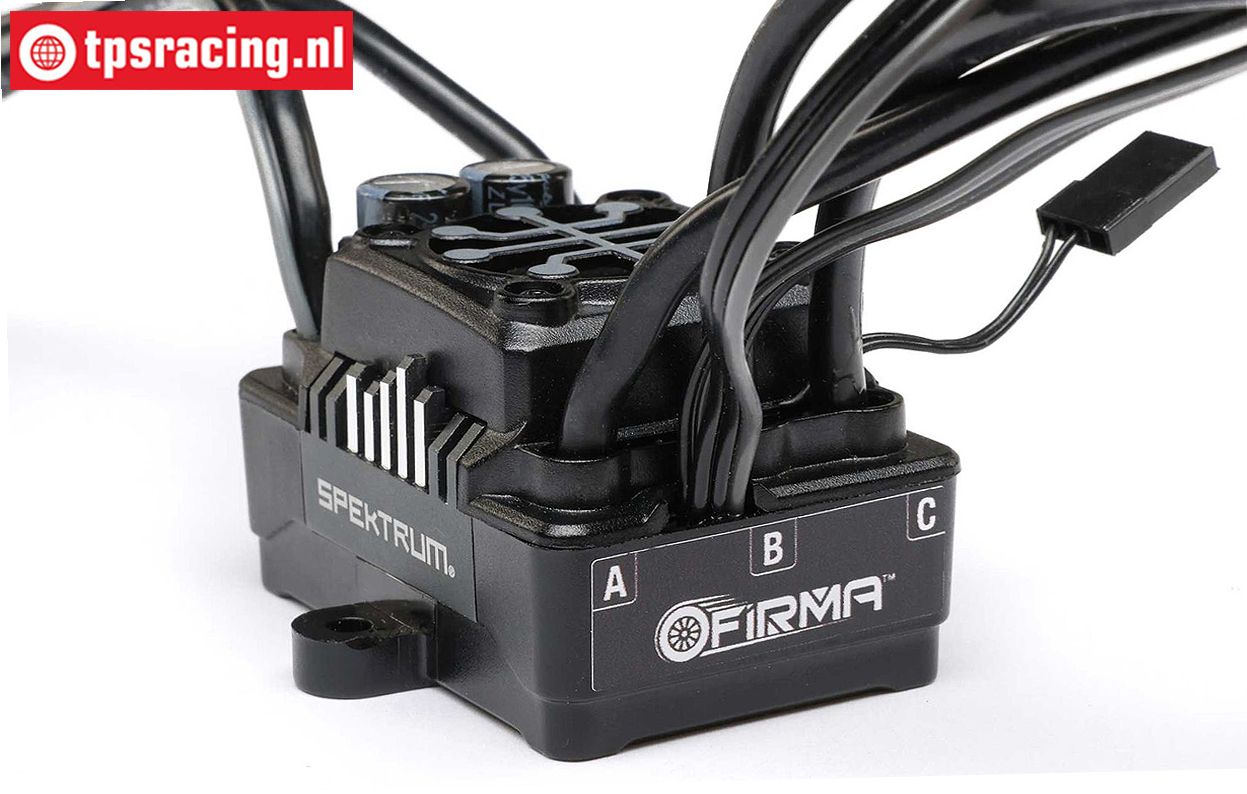

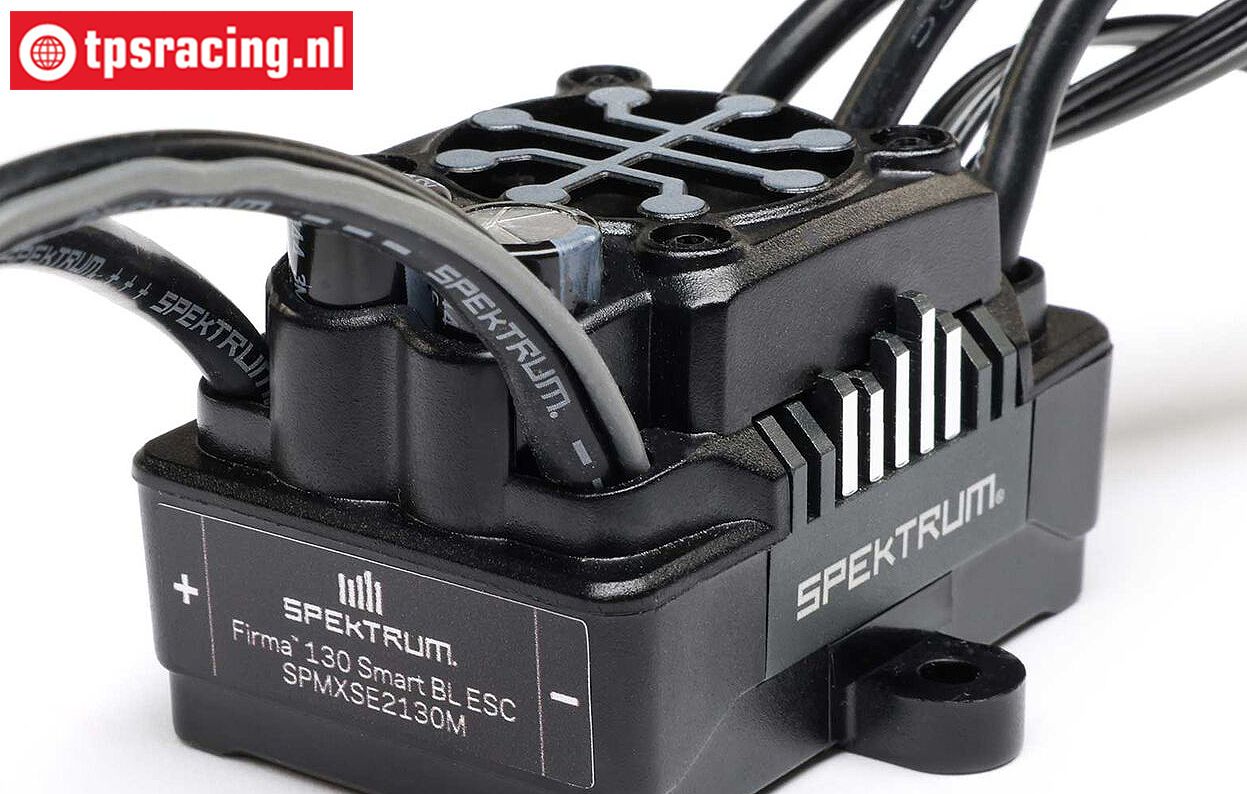

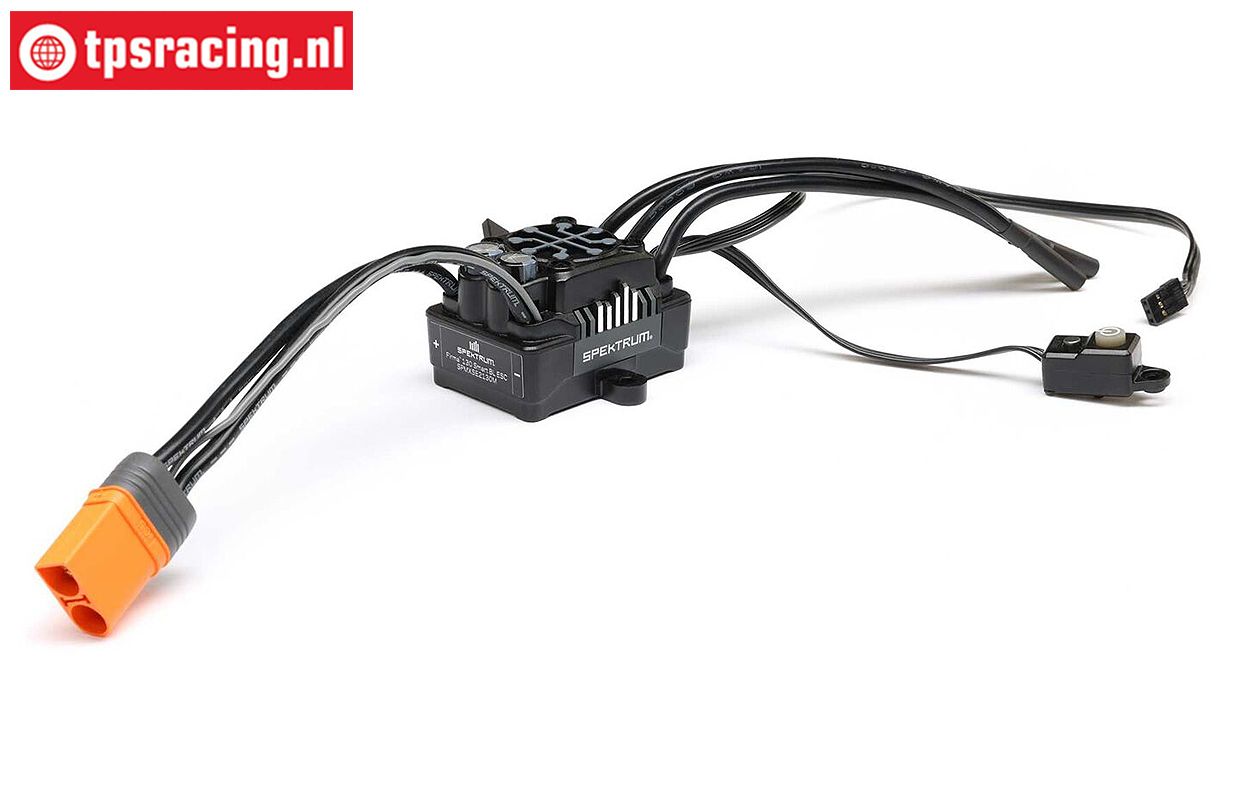

Spektrum Firma 130A Black Edition Brushless Smart ESC SPMXSE2130M

The Spektrum™ Firma™ 130 Black Edition Brushless ESC is waterproof and delivers both performance and intelligence. Without the need for additional sensors or modules, it sends real-time battery and controller telemetry data directly to your remote control system—all through a single connection. The Black Edition is specially optimized for the freestyle performance of the LMT 2.0.

Special features:

• Application LMT 2.0

• Output connection 4 mm Banana plug

• BEC voltage 6.0V/7.4V, adjustable at 5A

• Cooling method Fan

• Maximum continuous current 130A

• Motor type Brushless

• Number of cells 2S - 4S LiPo

• Product height 38 mm

• Product weight 126 g

• Product width 36 mm

• Product length 2.2

• Programmable Yes

• Technology Smart

• Connector IC5, compatible with EC5 connectors

In the box:

• 1 x Spektrum™ Firm™ Smart ESC
• 1 x Spektrum Smart Sticker sheet
• 1 x Instruction Manual

Needed to complete:

• Spektrum™ Surface Receiver
• Spektrum Smart Technology LiPo Battery
• Spectrum transmitter

Technical info:

• Spektrum Firma 130A Brushless Smart ESC

• Intelligent all-in-one telemetry

• Fast, powerful 32-bit ARM M4 processor

• Waterproof*

• Optimized programming for LMT 2.0 trick and freestyle modes

• Several easy programming options:

• Key programming

• Smart ESC Programming Box

• SmartLink USB update and programming app.

• TextGen interface

• Multiple protection features:

• Overcurrent protection

• Automatic LiPo low-voltage cutoff

• Thermal protection

• Failsafe protection

• Developed by Spektrum™ engineers in collaboration with a leading ESC manufacturer

• Compatible with the Losi LMT 2.0

• High-current, adjustable BEC (6V or 7.4V @ 4A)

• Compact design for easy installation

• Ready to install – no soldering required

• Robust plastic case with mounting tabs

• Aluminum heatsink for high efficiency

• Cooling fan

• Adjustable high-performance BEC

• Firmware updates via the Smart ESC Programming Box

• Heat-resistant IC5 connector, compatible with EC5 connectors

• 1-year limited warranty
