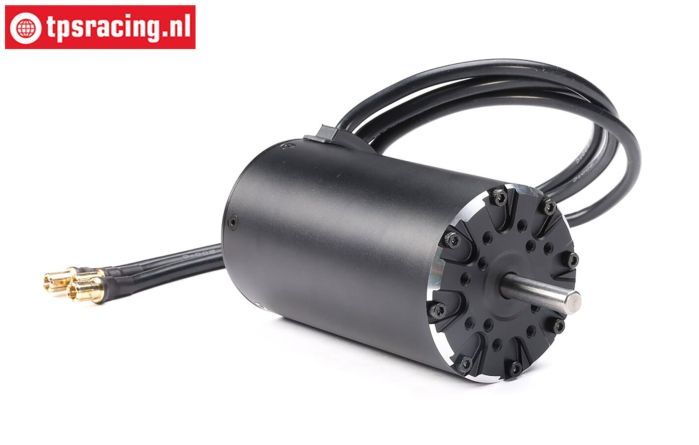

Firma 70120 560Kv Brushless Motor SPMXSM5600

The Firma 560Kv brushless motor is the perfect addition to the 5IVE-TE 3.0 1/5 electric 4WD Desert Truck RTR. It features a low cog rotor with 4 poles, a CNC-machined aluminum housing, high-quality copper insulated windings, a high-quality alloy steel output shaft, and precision bearings for durability and smooth rotation. For extra cooling,

• We recommend the use of a cooler: SPMXSMH3
  Perfect combination with Firma 250A ESC: SPMXSE2250

Product specifications:

• Application: 1/5 1/6 Scale Off-road
• RPM/Voltage (Kv) 560 kV
• Voltage: 48V
• Maximum continuous current: 250A
• Motor type: Brushless
• Motor size: 70120
• Poles: 4
• Outer diameter: Ø66.5 mm
• Length: L120 mm
• Weight: 2245 g
• Length: L120 mm
• Shaft length: L30 mm
• Shaft diameter: Ø8 mm
• Plugs: Ø8 mm banana plug

Suitable for:

• LOSI 5IVE-TE 3.0 models
• Similar models
