SPT High Torque HV Servo SPT70HV-180

SPT Servo is a relatively new player on the market with impressive servos, of which this SPT70HV-180 is one of them.
This SPT70HV has been developed for harsh conditions such as steering and braking of Large-Scale models in the scale 1/5, 1/.6 and 1/7. Because it is high voltage, suitable for up to 8.4 volts, it can be used with a 2S Lipo battery, and delivers an impressive performance of 70 kilos in just 0.13 seconds over 40 degrees.

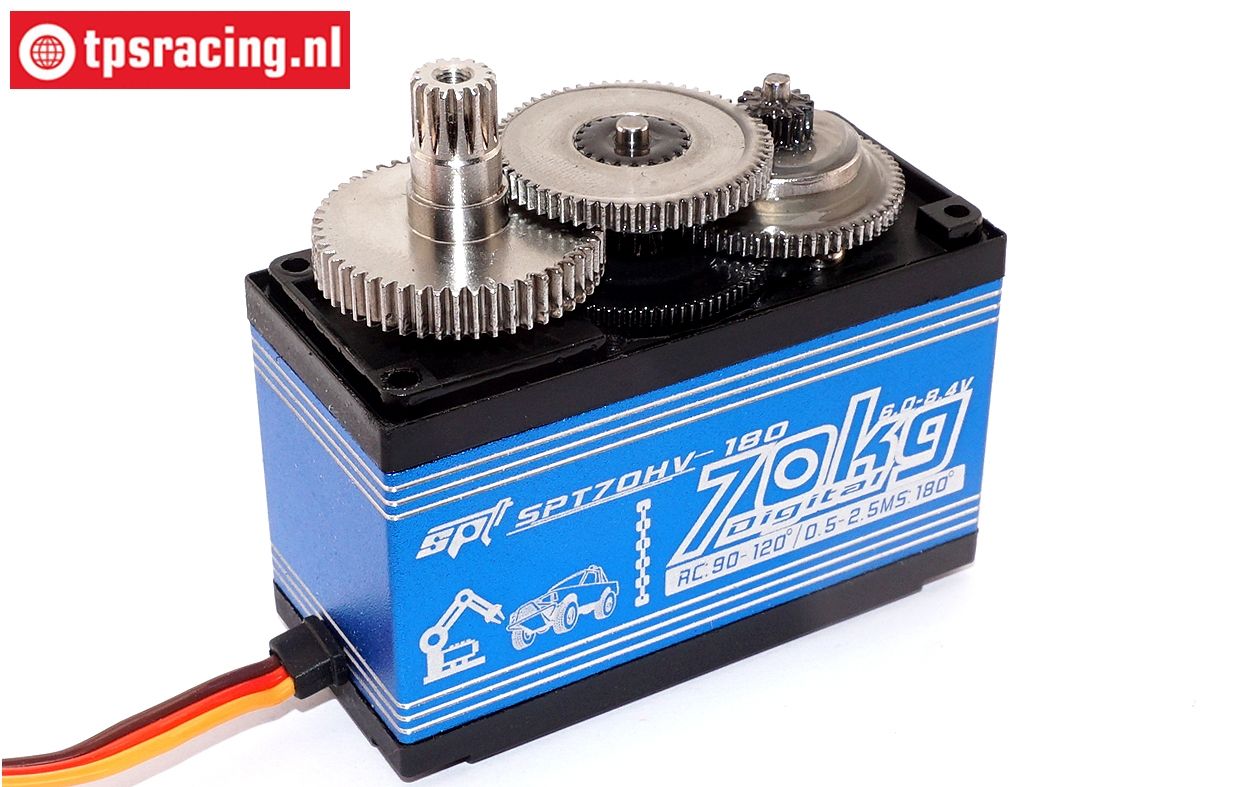

Robustly built, equipped with ball bearing gears and output shaft. The aluminum housing is equipped with O-rings and is therefore splash-proof and also guarantees the lowest possible temperature for the best performance. Furthermore, this SPT70HV-180 servo has a 12 bit-4096 step resolution so that it is very precise.

Technical specifications:

• Band: 4us.
• Neutral: 1500us/50hz.
• Motor: Core
• Voltage: 6.0V~8.4V.
• Speed at 6.0V: 0.13~40°
• Adjusting force at 6.0V: 56 kg/cm
• Voltage: 7.4V: 0.11~40°
• Positioning force at 7.4V: 70 kg/cm
• Dimensions: L65.7-W30-H57mm
• Weight: 200 grams
• Plug: JR-UNI
• Cable length: L260mm.
• Gears: Metal
• Output shaft: 15T
• Resolution: 12 bit~4096

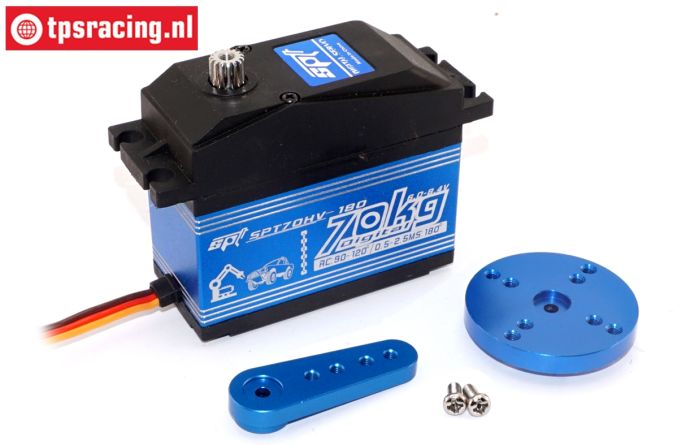

Package contents:

• 1 x SPT70HV-180 servo
• 1 x Aluminium servo horn L30 mm
• 1 x Aluminium servo disk Ø32 mm
• Mounting material

6 Months original factory warranty excluding gears.
