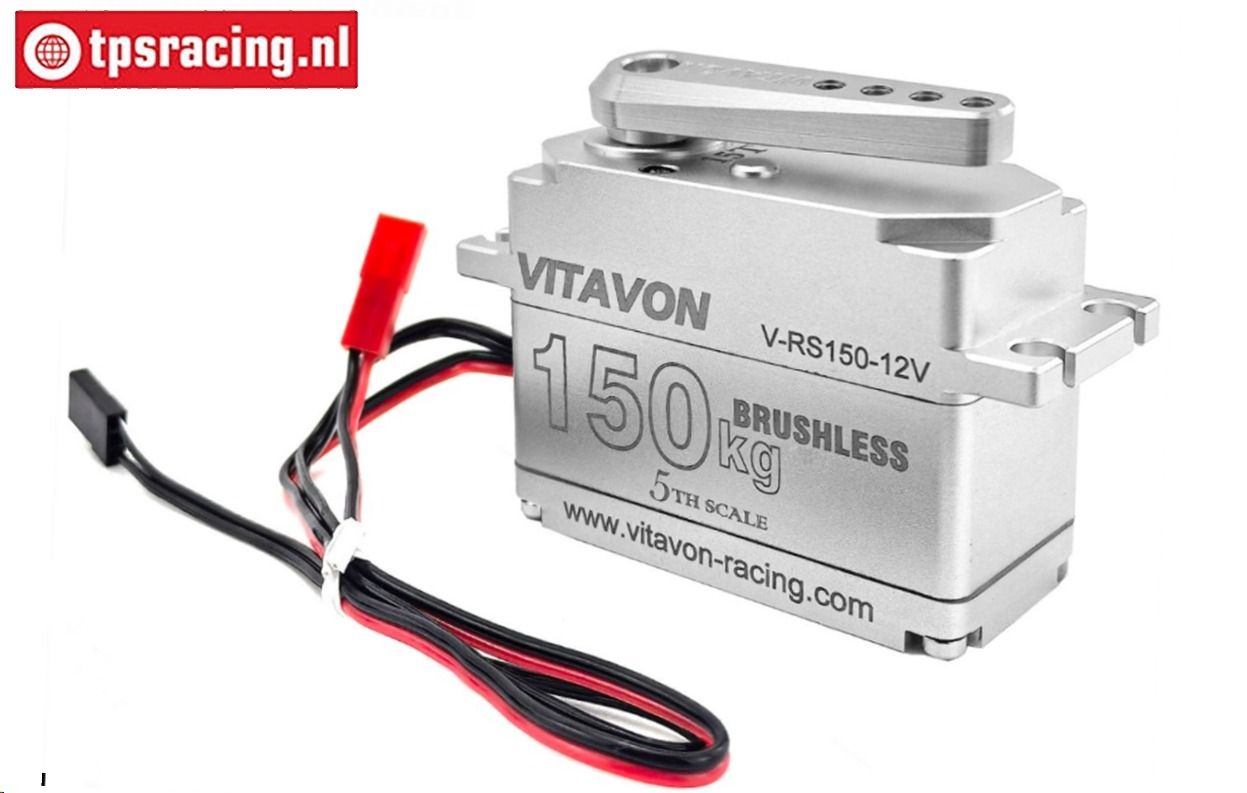

VITAVON CNC Alu7075 V-RS150-16V V2 15T Brushless Servo VIT5T00087

Looking for a powerful steering servo for your 1/5, 1/6, or 1/7 RC model? Then this VITAVON CNC Alu7075 150kg V2 15T Brushless Servo is highly recommended.

The all-aluminum 7075ST housing provides a solid foundation for this powerhouse, capable of 105 kg of force on a 2S power supply—and that's just the beginning. Internally, the gears are stainless steel for minimal wear, supported by ball bearings. This Vitavon servo has an IP67 waterproof rating, meaning it's completely dust and waterproof. The direct power supply allows for up to nearly 17 volts with a force of 155 kilos.
Compared to the Vitavon G1 servo, the G2 version (V2 version) comes with several important upgrades.

Technical Specifications:

• Upgraded Voltage Range: The V2 version supports a wider voltage range of 7.4V - 16.8V, replacing the 7.4V - 12.4V of the G1, allowing for a higher operating speed.
• Power Requirements: A separate 7.4V - 16.8V 2S - 4S battery is required (instead of the 2S - 3S battery for the G1) to provide more current. This is especially important because if the servo draws power directly from the ESC, voltage drops can occur, leading to unstable servo operation. Mounting hole upgrade: M4 mounting holes are now used instead of the M3 holes of the G1. This allows M4 screws to be used to secure the servo horn, effectively preventing the screws from easily loosening.
• Housing material upgrade: The servo housing is made of 7075 aluminum alloy, replacing the 6061 aluminum alloy used in the G1 servo, for improved durability and strength.

Specifications:

• Scale: 1:5, 1/6, 1/7
• Voltage Range: 7.4V – 16.8V
• Motor Type: Brushless
• Output Shaft: 15-tooth
• Gears: Stainless Steel
• Gear Ratio: 154
• Weight: 270 grams
• Dimensions: L65-W30-H43 mm, (L2.56-W1.18-H1.69 inches)
• Voltage/Torque/Speed:
• 7.4V 105 kg-cm 0.19 sec/60 degrees 6.6A
• 8.4V 115 kg-cm 0.17 sec/60 degrees 7.4A
• 12V 135 kg-cm 0.12 sec/60 degrees 9.5A
• 16.8V 155 kg-cm 0.09 sec/60 degrees 12A
• Included: Aluminum servo lever
• Receiver plug: UNI
• Direct voltage plug: XT60
• Cable length: 25 cm
• Waterproof rating: IP67

Installation dimensions are the same as those of the JX2060, JX2070, Spektrum S9110, Spektrum S9120, Savox S0235, S0236, S0240, S0241, etc.

6-month original manufacturer's warranty, excluding gears.
