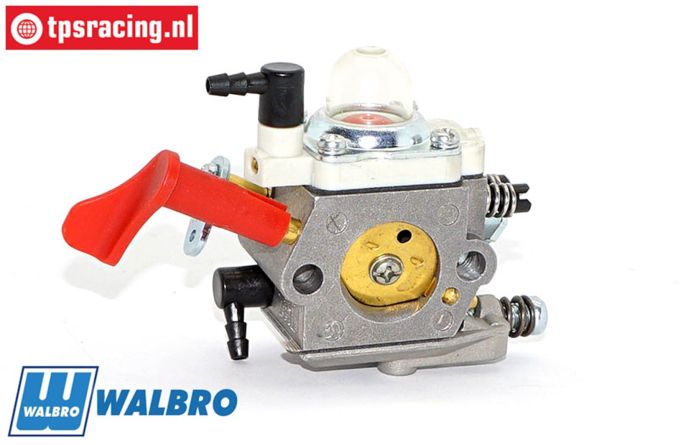

WALBRO WT-1107 With Choke

This carburetor is supplied as standard on the Zenoah G320, 32 cc engine. The venturi is bigger than in comparable carburetors. Can easily be mounted on any type of motor, (a must for tuned engines). When original carburetors give bottom acceleration problems this one is the one to have.

When selecting a tuning version, i.e. with bearings and/or a RVS340 steel shaft, the carburetor is also tested under vacuum and optimally adjusted.

Explanation of throttle valve shaft options

• With brass throttle valve shaft, (standard)
• With ball-beared brass throttle valve shaft
• With Stainless steel 340 throttle valve shaft
• With ball-beared Stainless steel 340 throttle valve shaft, (recommended)

Default settings:

• Stationary screw: 2 turns
• Lower mixing screw (L) one and a quarter turn open
• Upper mixing screw (H) one and a quarter turn open

Specifications:

• Ventury: Ø18,8 mm
• Bore: Ø15,8 mm

Suitable for all engines in our program and similar types.
