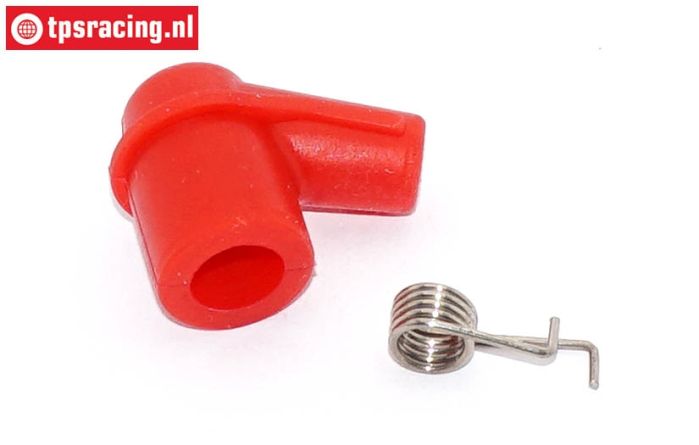

Zenoah Spark plug cap with Clamb ZN0042

 The cap has a connection as shown in the photo below. So it fits spark plugs such as the NGK CMR6H and NGK CMR7H, and similar variants.

For spark plug variants with only thread, these caps are available separately under order number: ZN0045

Technical data:

• Cap material: Silicone rubber

Fits on:

• All Zenoah engines
• All HPI- Feullie engines
• All LOSI- Dynamite engines
• All Chung Yang engines
• All comparable engines

Mounting;

• Place the round section against the end of the spark plug cable, (See photo 1)
• Now push the sharp pins into the cable as far as possible (see photo 1),
• Now slide the spark plug over the cable with clamp, (See Figure 3),
• Make sure that the clamp ring is in the center of the cap.
