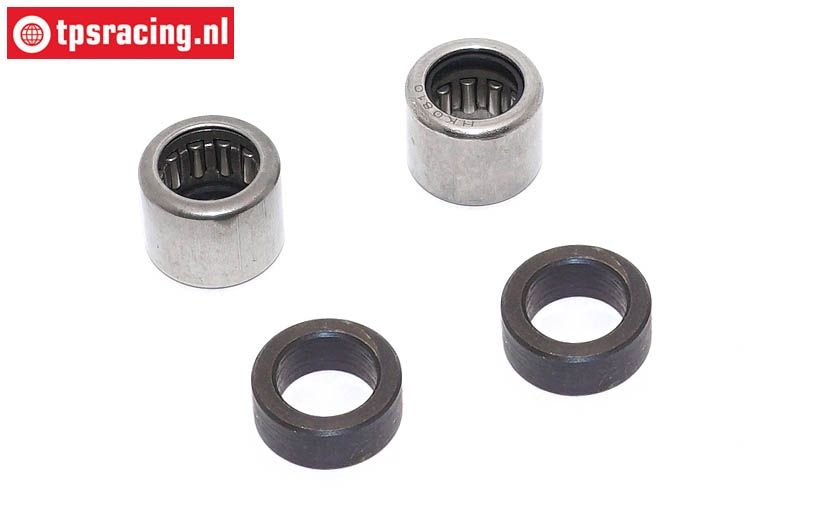

Needle roller bearings aluminum differential housings.

Suitable for all aluminum differential houses from FG Modellsport. For optimum guidance of the output shafts. The bearing has an oil seal for the perfect seal. The bearing must be fitted first, with the oil seal on the outside.

Tip for assembly; Slide the lubricated bearing and the steel bushing over a wheel axle and then press it into the housing as a whole.

Dimensions Needle bearing:

• Inside diameter: Ø8 mm
• Outside diameter: Ø12 mm
• Height: H8 mm

Steel bus dimensions:

• Inside diameter: Ø8 mm
• Outside diameter: Ø12 mm
• Height: H5 mm
