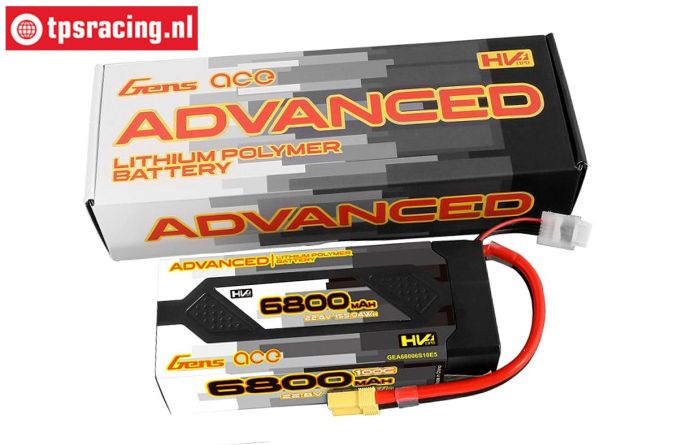

Gens Ace Advanced 6800mAH 22,8V 6S 100C

Gens Ace introduces the Advanced line of Lipo batteries.

Advanced 4.35V HV Series, New Generation RC Smart Batteries. The design concept of the Advanced series is based on a more convenient, user-friendly and safety-oriented series of batteries.

Equipped with a button with which the status of the battery can be read via LEDs. So you know in advance how much capacity the battery has without connecting it to the charger or car.

Indicated values:

• 4 x blue = capacity 71~100%
• 3 x blue = capacity 41~71%
• 2 x blue = capacity 11~40%
• 1 x blue = capacity 1~10%
• 1 x red = low voltage warning
• 1 x red flash = overload warning
• 1 x red/blue flash = cell voltage difference

Particularities:

• 4.35V HV
• Hard case smart battery
• LED power indicator
• Voltage Status Indicator
• Self storage mode
• Prevents overload
• 8 Gauge Cables

Applications:

• 1/7 Scale, FELONY 6S BLX, LIMITLESS, INFRACTION 6S BLX;
• 1/8 Scale, TYPHON 6S, TYPHON 3S, VENDETTA, KRATON 6S BLX, TALION 6S BLX, OUTCAST 6S BLX, NOTORIOUS 6S;
• 1/10 scale, SENTON 3S; BIGROCK 3S BLX.

Technical data:

• Capacity: 6800mAh
• Voltage: 22,8 Volt
• Maximum amperage: 100C
• Weight: 945 grams
• Dimensions: L165-W68-H47 mm
• Balance connection: JST-XHR
• Charging plug: EC5
• Charging current: Maximum 3C~17.5A

Suitable chargers:

• HTRC HT150
• HTRC C240 ​​DUO
• HTRC T240 DUO

Important information!

• Li-Po batteries can be dangerous if closed, over-discharged, incorrectly charged, or damaged.
• Always safely store and charge Li-Po batteries in a specially developed protective bag TPS6556.
• The warranty will lapse if plugs and cables are changed and / or any form of damage is done
• Make sure the battery is 50% charged when not in use for an extended period of time.
• Always check that your components are suitable for the specified voltage!
