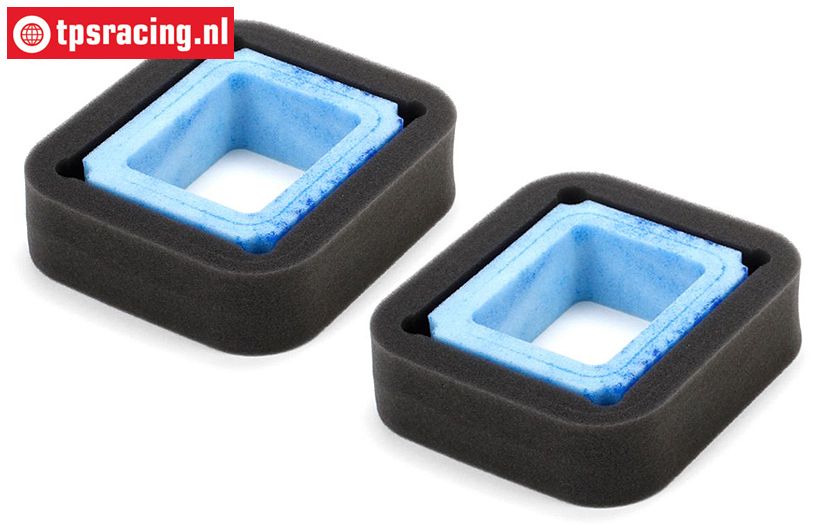

Original TLR air filter insert for LOS55002.

Content:

• 2 x Inner filter oiled, (bleu)
• 2 x Outher filter, (white)

Dimensions

• Length: 130 mm
• Width: 110 mm
• Heigth: 35 mm

As with all foam filters, it is important to treat it properly. We have developed special products that meet the requirements for an effective filter.

Cleaning the filter;

• Heavily soiled filters brush off the excessive dirt with a soft brush,
• Take a container that is at least two times the size of the filter and fill it with warm water,
• Add 3-5 tablespoons (depending on the pollution), cleaner TPS0490/06,
• Put the filter completely in the container,
• Let the filter soak for 20-30 minutes and then rinse it out with warm water,
• Repeat this procedure until the water is completely clear, and let the filter dry thoroughly.

Oiling for On-Road use;

• Spray the inner filter in with special foam air filter oil PUT9894,
• From left to right and top to bottom until the whole filter has a uniform color,
• Gently massage the oil in the filter using a plastic bag, then let in the filter dry for at least an hour in open air,
• The amount of oil that should be applied depends entirely on the circumstances, more dirt also means more oil,
• Ready for use.

Oiling for Off-Road use;

• Take a container where the filter fits in, and fill it with half the contents of filter oil TPS0490/05
• Now press the inner foam part in the oil, and let it soak for a few seconds,
• Take the filter out and gently press out all excessive oil out immediately,
• Put the remainder oil back into the bottle and store it in a cool dark place,
• Gently massage the oil in the filter using a plastic bag, then let in the filter dry for at least an hour in open air,
• Take a paper towel and press out all excessive oil,
• Ready for use

** NEVER USE AGGRESSIVE AGENTS LIKE BRAKE CLEANER OR PRESSED AIR **
