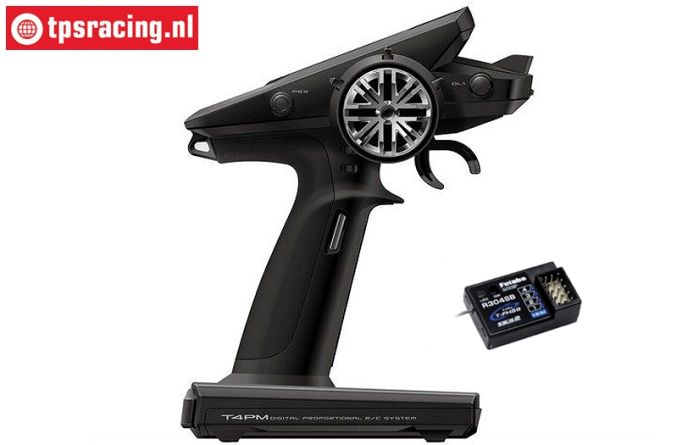

Futaba T4PM

The new T4PM is a professional 4-channel 2.4 GHz remote control system for RC cars with backlit 2.7 inch display! The system features the ultra-fast T-FHSS SR signal transmission and a 2.4GHZ 4-channel receiver of your choice. Thus, the T4PM currently offers the fastest signal transmission with maximum reception reliability!

• T-FHSS-SR, 4 control channels without telemetry, but with maximum response speed
• T-FHSS, 4 control channels with telemetry
• S-FHSS, 4 control channels without telemetry

The new T-FHSS SR (Super Response) system is faster than any previous transmission type on the market. At 2.45 ms, the response speed in the model has become noticeably faster (T-FHSS = 4.15 ms). The graphically guided user interface with the familiar simple Futaba menu structure ensures easy operation. Navigation is intuitive via the buttons on the top of the transmitter. At only 390g, the T4PM is currently one of the lightest transmitters on the market.

TELEMETRY FUNCTIONS

Synchronized, bi-directional communication between transmitter and receiver with high telemetry data rate (up to 9 times per second), without loss of response of the control channels. A maximum of 31 telemetry sensors, alarm tone setting and beeper output, vibration alarm. (Only with R334SBS or R334SBS-E receiver).

• Telemetry data recording on SD card (SDHC)
• Telemetry data analysis via spreadsheet programs or LogView software
• Real-time display of telemetry data on an integrated display
• Telemetry signal strength indicator to monitor the range
• Receiver Undervoltage Warning System for monitoring the receiver battery
• Connection of optional sensors to the S.BUS2 input for example:
• Tension of the driving battery
• Electricity up to 150A
• Speed ​​(brushless or magnetic)
• Temperature (125 ° C or 200 ° C)

S.BUS TECHNOLOGY

• Connection option for S.BUS2 sensors
• All S.BUS servos can also be connected to normal servo outputs of the receiver
• Digital BUS technology for model sport
• Allows ideal placement of all components with efficient cabling
• Future-proof, digital technology for all future Futaba components
• Recommended receiver: Futaba R304SB, R304SB-E, R334SBS or R334SBS-E (E for electric models only)

Note:
To use the speed of the Futaba SR system, many FUTABA SV servos can be switched to SR mode via the transmitter. Currently, the following SR servos are compatible: BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, BLS373SV, S9372SV, S9373SV, HPS-CB700.

Delivery Content

• Transmitter T4PM
• Manual

Required accessories:

• 2800 mHa Lipo battery
• Futaba Lipo Charger
