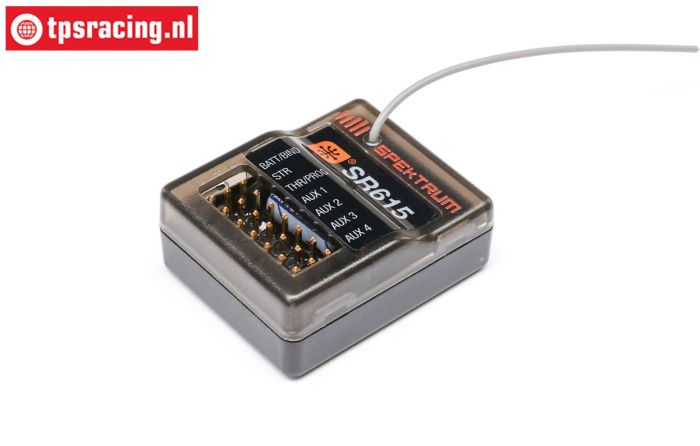

Spektrum SR615 Waterproof receiver SPMSR615

6-channel potted receiver designed to handle the rough and tumble that any remote control car can throw at it. DSMR technology and Smart telemetry capable for all your driving needs.

Built around frequency-agile DSMR technology, the SR615 6-channel receiver delivers superb range and response, especially in noisy RF environments where a solid 2.4GHz link is crucial. Not only is the 2.4GHz link solid, but this receiver also implements our lightning-fast 5.5ms frame rate, providing a quicker, low-latency connection for the pro-level enthusiast. Additionally, it's potted with an epoxy material to help protect the board from water and vibrations, making the SR615 water-resistant. The SR615 also features a new, modern case design that is small, streamlined, and ready for nearly any RC application. Plus, while binding, you have the choice of SmartSafe™ and preset 'Gas' failsafe options.

Combined, Spektrum gives drivers more features in an affordable receiver so that you can drive confidently.

Features:

• 6-channel DSMR / DSM2 receiver
• Potted in epoxy, protecting the board from water and vibrations
• Streamlined design in a compact and lightweight hard case
• SmartSafe™ Failsafe and Preset "Gas Mode" Failsafe options
• Outstanding range and 5.5ms capable DSMR technology
• Ideal for nearly any surface RC model

Compact Design:

The SR615 can be placed in very small and tight builds. We eliminated unnecessary angles to streamline the receiver casing and make installation easier than ever before. The case also features added antenna support and an integrated antenna tube slot for custom models that do not provide a route for antenna installation.

6-Channels:

Built around frequency-agile DSMR® technology, the SR615 6-channel receiver delivers unbeatable signal security in a small, modern package matching modern 6-channel transmitters such as the DX6 Rugged, DX6C, DXC+ and the iXSR.

Gas Mode Failsafe:

Built into the SR615 is our newest failsafe mode for surface applications, Gas Mode Failsafe. Easy to select during binding, Gas Mode allows users to preset the failsafe position of all available channels. Additionally, drivers can utilize SmartSafe™ failsafe, which drops the throttle to the lowest point and holds the last known command on the rest of the available channels.

Water Resistant:

The SR615 6-channel receiver's all-weather, water-resistant design allows it to perform in nearly any terrain under almost any conditions. The receiver keeps you going through dust, gravel, snow, and water.

The SR615 receiver must be bound to the transmitter before it will operate. Binding is the process of teaching the receiver the specific code of the transmitter so it will only connect to that specific transmitter.

To bind an SR615 to a compatible transmitter:

• 1. Insert the bind plug in the BAT/BIND port on the receiver.
• 2. Power on the receiver through any open port, the LED on the receiver should be flashing.
• 3. Mover the steering wheel and throttle to the desired failsafe positions, generally low throttle and neutral steering.
• 4. Follow the procedures of your specific transmitter to enter bind mode; the system connects within 15 seconds. Once connected, the LED will go solid.
• 5. IMPORTANT: You must removed the bind plug to prevent the system from entering bind mode the next time the receiver power is turned ON.
• 6. After you’ve set up your model, check the failsafe by turning off the transmitter, all programmed settings during the binding process should take place.

Specifications:

• Channels: 6
• Modulation: DSMR
• Voltage: 3.5 ~ 9.6 volts
• Antenna length: 120 mm
• Length: L34,8 mm
• Width: B28,3 mm
• Height: H14,2 mm
• Weight: 14,8 grams
•
