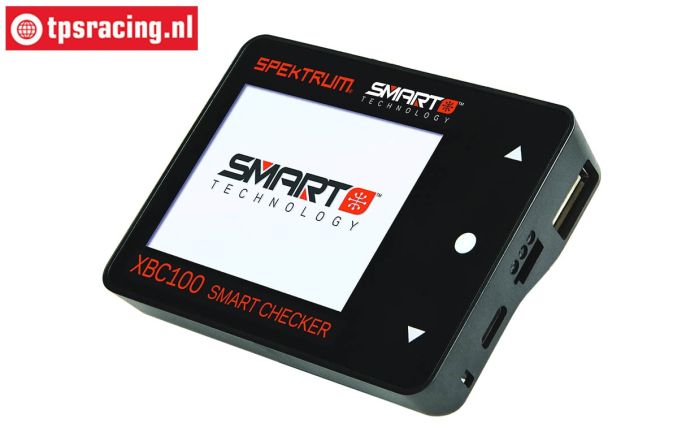

Spektrum XBC100 SMART Battery & Servo Tester

The Spektrum XBC100 Smart LiPo Checker is a must for every modeller. Equipped with all the features you would expect from a contemporary tester, but with additional features such as a built-in LiPo balancer, clearly displayed battery capacity and percentage charge status, and Spektrum Smart battery connectivity.

When using a Spektrum Smart Battery, users can see and adjust most settings that are otherwise only available with a Spektrum Smart Charger. With a single plug connection, the cell voltage and balance status can be displayed as well as all smart battery records such as number of charge cycles, internal battery temperature and exception reports. The smart battery settings can even be adjusted directly from the XBC100.

The XBC100 has a Qualcomm 3.0 USB charging port that allows users to easily charge their mobile devices and Spektrum Smart remotes. In fact, the XBC100 offers the possibility to fine-tune and test models with the built-in servo tester. Easily center and test your servo points with the integrated PWM output.

All this is displayed on a color IPS LCD screen, which is easy to read even in direct sunlight and has a user-friendly touch surface.

Particularities:

• Battery tester with built-in balancing.
• Advanced servo test functions.
• Spektrum Smart battery technology.
• Large color IPS LCD touchscreen display
• Qualcomm 3.0 compatible USB power port with quick charge for mobile devices, up to 12V and 2A.
• Update port for easy access to updates and new functions.

Technical data:

• Connectors: IC3
• 1 ~ 8 cells Li-Po
• 1 ~ 10 cells NimH and NiCd
• Input voltage: 5.0 ~ 36 Volt
• Input voltage 1s: 0.8 ~ 15 Volts
• Input voltage 2-8S: 0.8 ~ 4.8 Volts
• 1 ~ 8 cells Li-Po
• 1 ~ 10 cells NimH and NiCd
• Voltage Measurement Accuracy: ± 0.005V @ 4.2V
• Accuracy of balancing cells: <0.005V
• USB charging support: QC 2.0 / 3.0, BC1.2, maximum output 12V / 2A
• Smart battery support: charge and discharge setting, read battery information and usage history.
• Supported Battery Types: LiHv 1 ~ 8S, LiPo 18S ~, LiFe 1 ~ 8S, Lilon 1 ~ 8S, NiMH / Cd 1 ~ 10S
• Display: 2.4〃320 × 240 260,000 colors IPS Touchscreen LCD
• Size: 80 X 55 X 19 mm
• Weight: 59 grams
• Operating temperature: 0-40 ℃
• Working Humidity: 10% -90% RH
• Storage temperature: -20-60 ℃
• Storage Humidity: 5% -90% RH
• Servo PWM output Hz: 1520uS = 50Hz / 760uS = 333Hz
