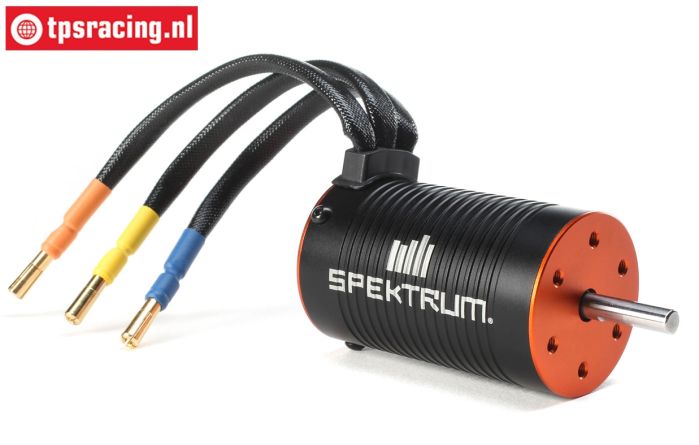

SPMXSM1000 Firma Brushless Motor 3150KV, 1 pc.

Firm Brushless Motor 3150KV

Perfect upgrade for 540 and 550 brushed motors with the same diameter and mounting pattern, motor shaft has a diameter of Ø5 mm.

Benefits:

• High-quality 4-pole sintered rotors
• Includes 4 mm gold-plated bullet connectors
• Precision ball bearings and hardened steel 5 mm shaft

Good choice for 1/8 and 1/10 4WD models. 4-pole 8-magnet rotor design, CNC machined aluminum housing, high purity insulated copper windings, 5mm high quality alloy steel output shaft and high precision bearings for high durability. Pre-installed with 4mm gold plated ball connectors for easy installation. Perfectly matched to the Firma 130 Smart ESC.

Specifications:

• Number of Cells: 2-3S LiPo, 4-9 cells NiMH
• Connector type: 4 mm
• Efficiency: 90%
• Input voltage: 6-13.2V
• Maximum continuous current: 100A
• Number of poles: 4
• Output: 1300W
• Diameter axle: Ø5 mm
• Diameter motor: Ø36 mm
• Length: 60 mm
• Weight: 247 grams
• Volt: 3150Kv
• Sensored: No.
• Size: 3660
• Wire thickness: 12AWG
