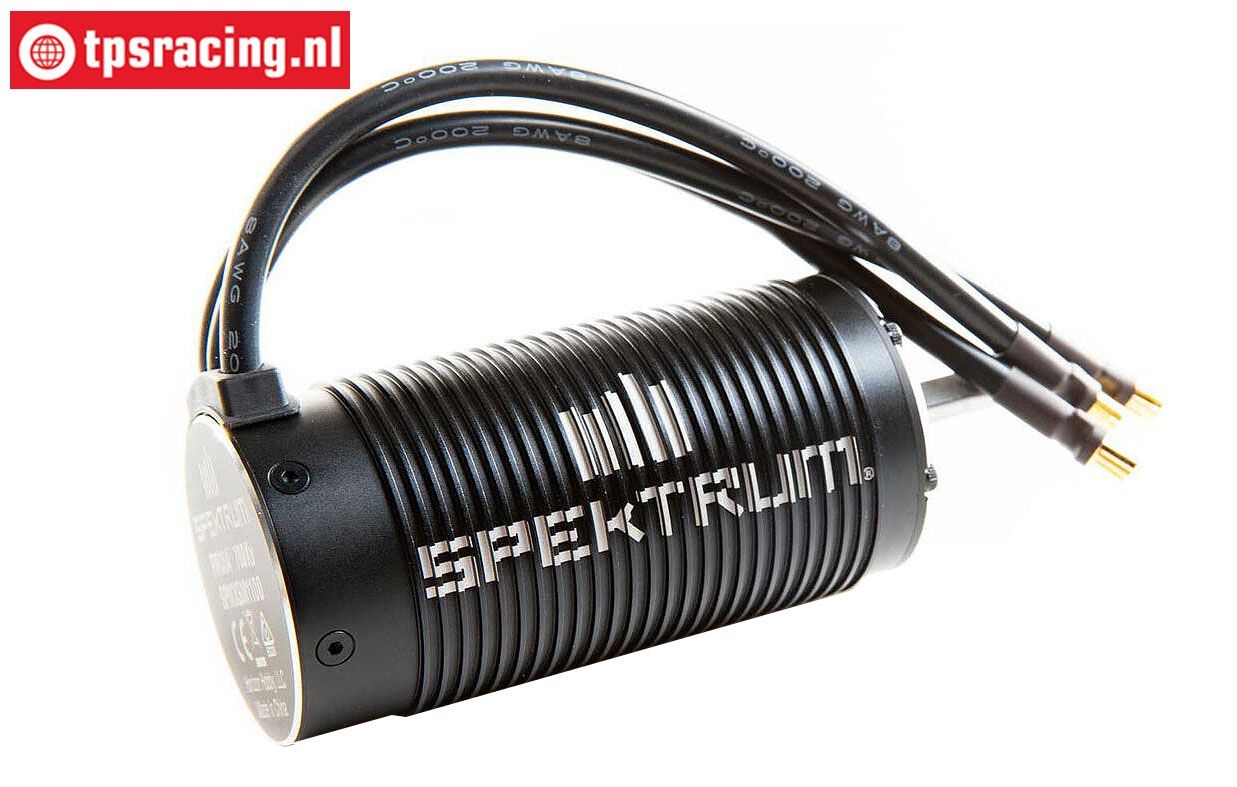

Firma Brushless Motor 750KV

Perfect option for 1/5th scale models looking for an 8S Lipo powered setup. Featuring a low gear 4 pole 8 magnet rotor design, CNC machined aluminum housing with cooling fins, insulated high purity copper windings, high quality Ø8mm alloy steel output shaft and high precision bearings for high durability and smooth rotation. Pre-installed with Ø6.5mm gold plated ball connectors. Perfectly matched to the Firma 160 Smart ESC.

This motor is used as standard in the LOSI DBXL-E models.

Benefits:

• Heat sink designed CNC aluminum housing
• Suitable for 8S LiPo power
• Hgh efficiency design
• High Quality 4 Pole Sintered Rotors
• Includes Ø6.5mm Gold Plated Bullet Connectors

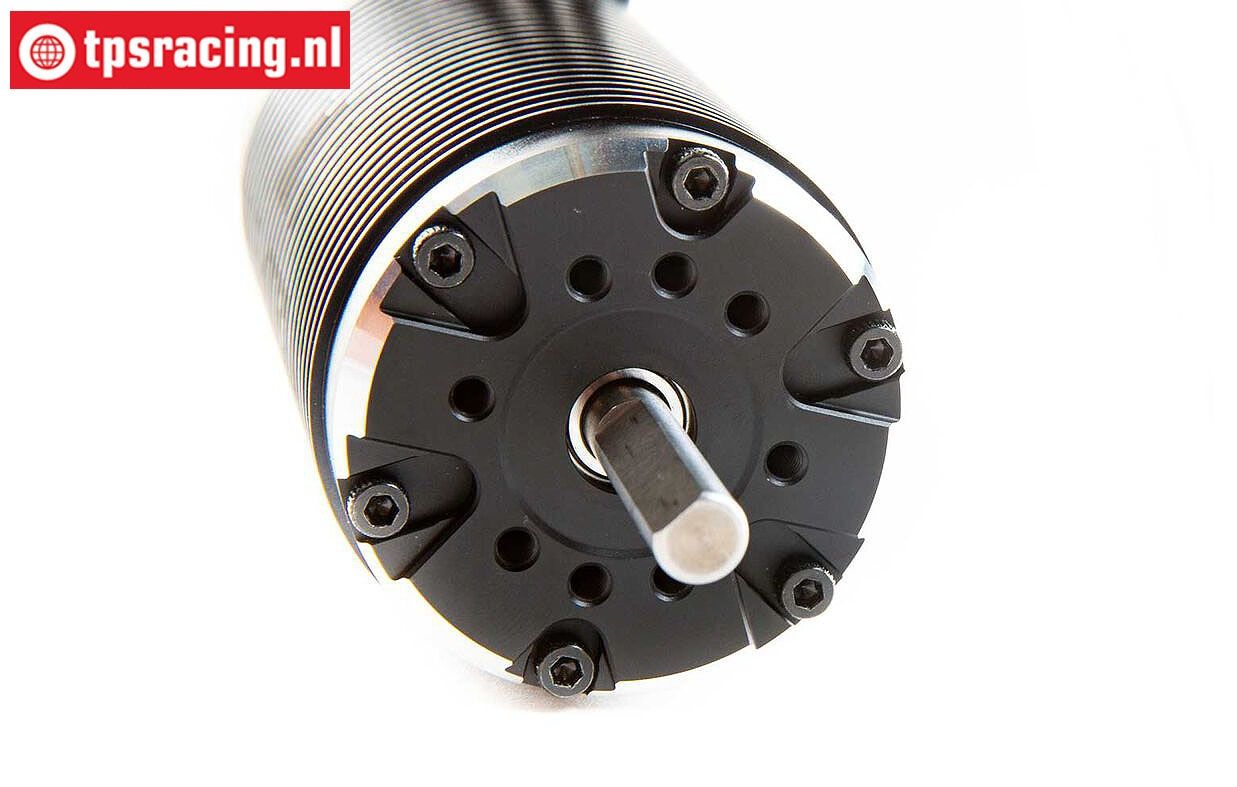

• Precision ball bearings and hardened steel Ø8mm shaft

Specifications:

• Number of Cells: 3-8S LiPo
• Connector type: Ø6.5mm
• Efficiency: 90%
• Input voltage: 11~29.6V
• Maximum continuous current: 200A
• Number of poles: 4
• Output: 6365 Watt~ 6S Lipo
• Diameter axle: Ø5 mm
• Diameter motor: Ø56 mm
• Length: 113mm
• Weight: 1220 grams
• Speed-Volt: 750Kv
• Wire gauge: 10AWG
