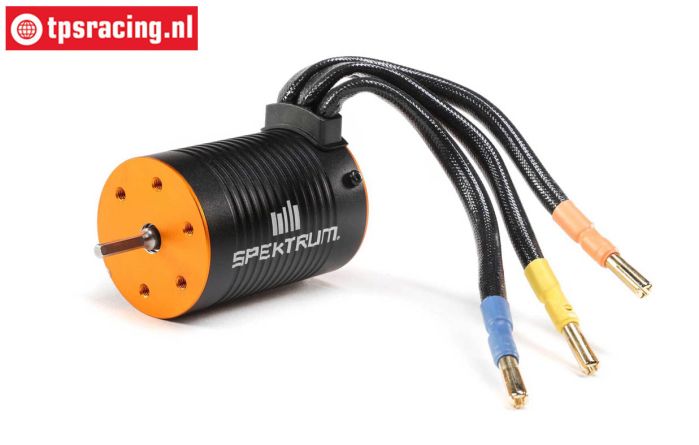

Firma 6500Kv 4-pole Brushless Motor SPMXSM2800

The Firma 6500KV brushless motor is the perfect upgrade for the 540 motors for various models. Spektrum motors are the pinnacle of electric motors. The motor has a CNC-milled aluminum housing, insulated high-purity copper windings, a high-alloy steel shaft and precision bearings for durability and smooth operation. For easy installation, it is pre-assembled with a Ø4 mm gold contact plug and perfectly matched to the 100 Smart controller.

Features:

• High efficiency design
• Compatible with 2S LiPo
• High quality 4-pole sintered rotor
• Including Ø4.0 mm gold contact plug
• Quality construction with precision ball bearings

Specifications:

• Number of cells: 2S LiPo
• Connector type: Ø4 mm
• Efficiency: 87%
• Input voltage: 8.4V
• Maximum speed: 54,600 rpm
• Number of poles: 4
• Shaft diameter: Ø3 mm
• Shaft length: L15 mm
• Motor diameter: Ø36 mm
• Motor length without shaft: L52 mm
• Weight: 210 grams
• Wire thickness: 10AWG
• Motor size: 540
• Cable length incl. plug: L120 mm
