Tuning Pull starter TPS0312/20

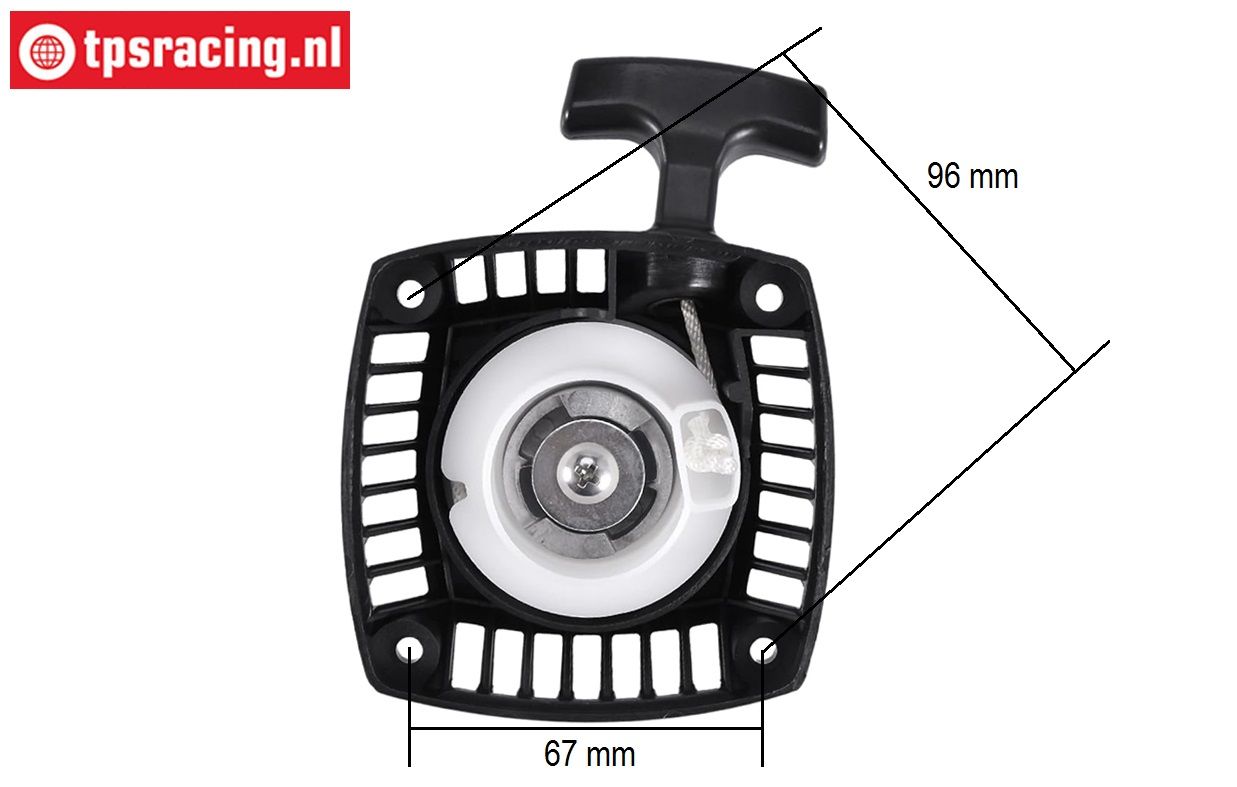

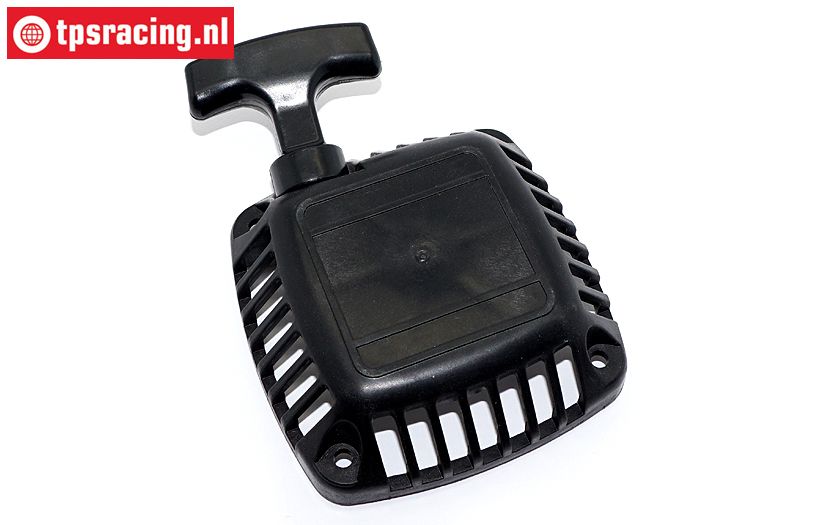

With a higher tunnel that provides extra protection for the cable holder and mechanism against dirt, dust and stones. Equipped with large air passage openings, not to be confused with products of the same name that do not have this and which cause cooling problems.with high funnel to keep dirt out the mechanism.

Suitable for:

• Zenoah G230
• Zenoah G240
• Zenoah G260
• Zenoah G270
• Zenoah G290
• Zenoah G320
• Chung Yang
• Dynamic
• HPI Feulie
• Equal build Motors

Optimal protection of Pull Starters:

• Remove the pull starter from the engine
• Pull out the recoil starter and hold the spring cassette on the inside
• Now turn the spring cassette so that its notch is exposed, and put the cord in it (Photo 1)
• Now let the spring cassette turn back gradually until there is no more tension on the rope
• Now loosen the middle screw, and remove the carrier parts (Photo 2)

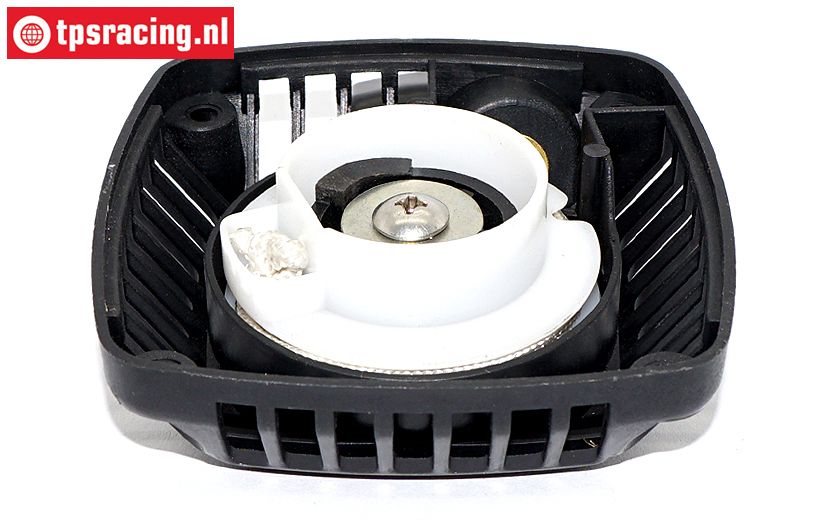

• Now only the spring cassette remains in the housing (Photo 3)
• Carefully remove the spring cassette so that the spring remains in the holder (Photo 4)
• Remove all dirt and grease with degreaser from the spring cassette and recoil starter housing
• Now spray the spring cassette and inside of the recoil starter housing with 3-IN-ONE® Lock Dry Lube
• Now put the spring cassette back, CAUTION that the hook of the spring falls into the cam of the recoil starter housing! (Photo 5)
• Now assemble cam parts in the order: 1) cam, 2) spring, 3) cam disc, 4) washer and 5) screw, use with the last Loctite 271
• ATTENTION that the ring with the square hole is in line with the cam of the pull starter housing!
• Now turn the spring cassette so that its notch is exposed, and put the cord in it (Photo 6)
• Now turn the assembly 5 to 6 times 360 degrees counterclockwise so that the spring is tensioned again and the recoil starter handle returns. (Photo 7)
