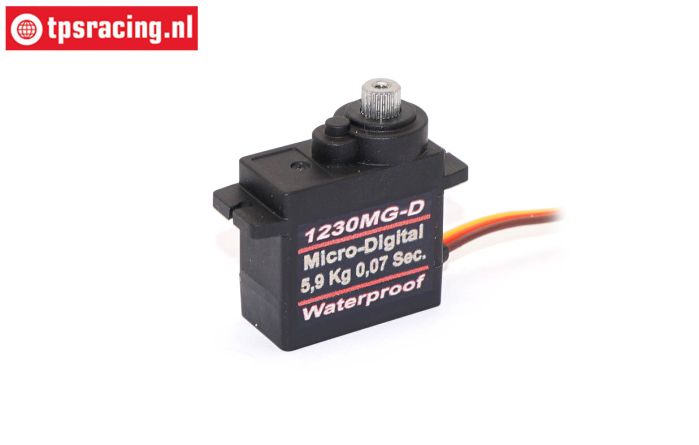

TPS Racing Digital Micro Servo TPS1230MG-D

After a long search, we finally found a manufacturer that had a Micro servo in its program that met our high standards.

So, if you are looking for an upgrade servo for the front brake of your LOSI Promoto motorcycle, this is an excellent choice! The standard servo has a pulling force of 1.2 kilos, this one no less than 5.8 kilos! The TPS1230MG-D micro servo is an absolute top performer in this segment, or rather, at the moment there is no better! This digital powerhouse has metal gears, is ball-beared and suitable for up to 8.4 volts and also waterproof, so ideal as a front brake servo for the LOSI Promoto motorcycles. We give a 6-month full warranty on the gears of this servo.

Please note! With an aluminium holder, the inner length may need to be adjusted slightly!

Matching aluminium servo lever:

• MX2020T

Special features:

• High performance digital micro servo
• Double ball bearings

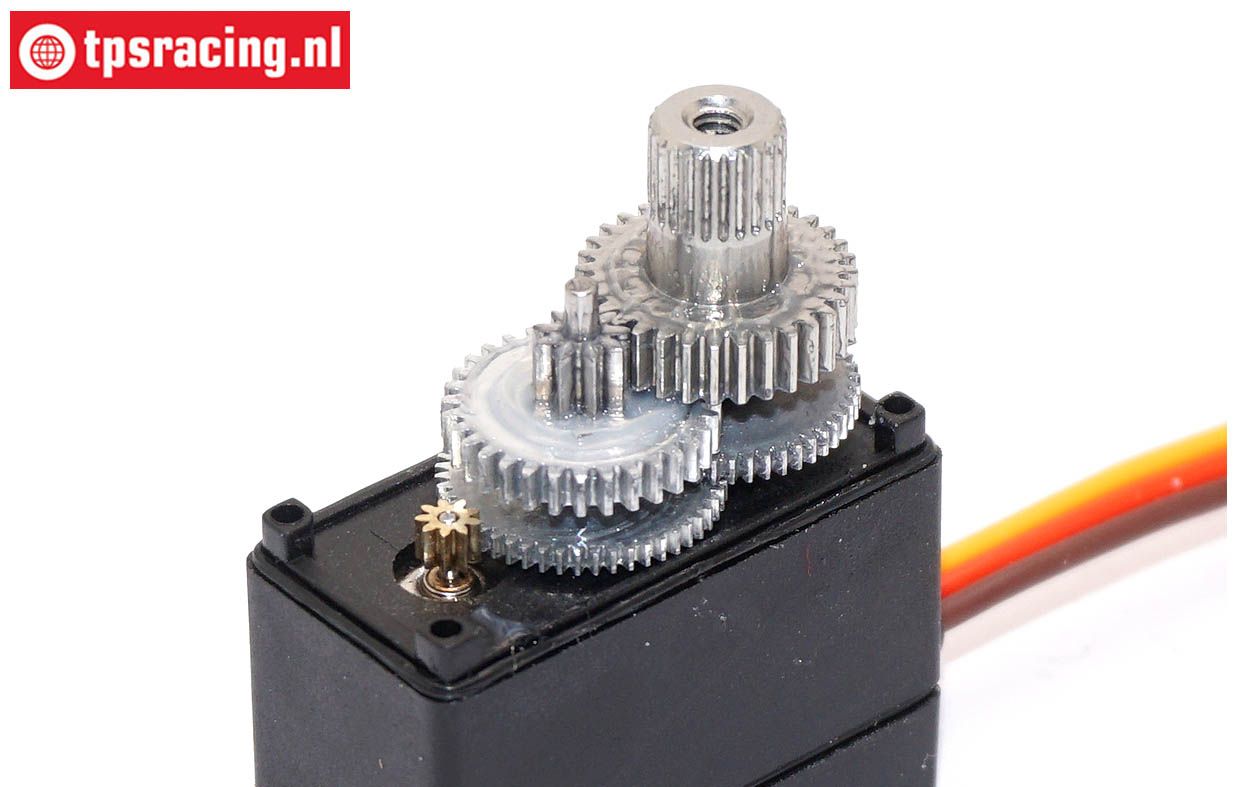

• High precision metal gears
• High quality brushed motor
• Waterproof

Technical data:

• Type: TPS1230MG-D
• Class: IP67
• Voltage: 4.8~8.4V
• Speed: 0.10 sec/60° at 4.8V
• Speed: 0.09 sec/60° at 6.0V
• Speed: 0.08 sec/60° at 7.4V
• Speed: 0.07 sec/60° at 8.4V
• Torque: 3.8 kg-cm (42 oz-in) at 4.8V
• Torque: 4.6 kg-cm (53 oz-in) at 6.0V
• Torque: 5.6 kg-cm (58 oz-in) at 7.4V
• Torque: 5.9 kg-cm (63 oz-in) @ 8.4V

Dimensions & Weight:

• Output shaft: 20T-Ø4,88 mm
• Length: L23.9 mm
• Width: W12 mm
• Height: 27 mm
• Cable length: L180 mm
• Cable thickness: 26AWG
• Plug: JR/UNI
• Weight: 14 grams
