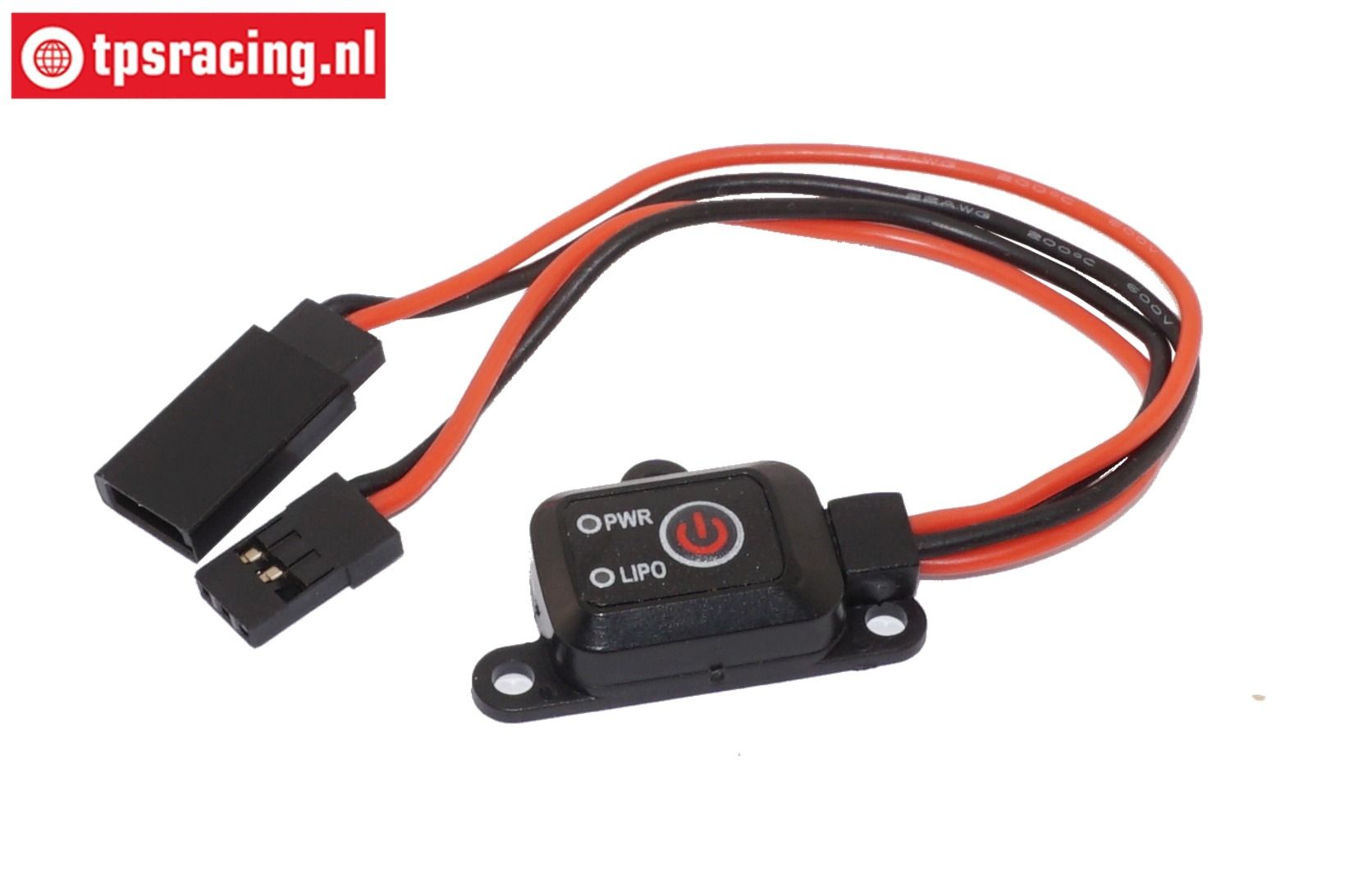

Electronic receiver switch TPS4092

Small, waterproof electronic switch that replaces all mechanical switches. Suitable for NiMH-NiCD and LiPo batteries. The built-in electronics also indicate the remaining battery capacity by means of a 3-color LED.

For secure fastening, the three eyelets with an inner diameter of Ø3.1 mm can be used.

Technical data:

• Voltage input: 4~12 volts
• Max. Switching current: 10 Amperes
• Low voltage protection LiPo: 6.2 volts
• Dimensions: L22-W16-H8.5 mm
• Weight: 7 grams
• Cable length: 2 x 240 mm
• Connectors: UNI/Futaba

Switch in use with NiMH/NiCD battery:

• Switching on: Press the switch for 1 second, the PRW LED will light up
• The color of the PWR LED indicates the battery capacity:
• Green 8~100%
• Orange: 60~79%
• Red: 20~59%
• Flashing red: Less than 20%
• Switching off: Press the switch until the PRW LED goes out.

Switch in use with LiPo battery:

• Switching on: Press the switch for 3 seconds; the PWR and LIPO LEDs will light up.
• The color of the PWR LED indicates the battery capacity:
• Green: 8~100%
• Orange: 60~79%
• Red: 20~59%
• Flashing red: Less than 20%
• Switching off: Press the switch until the PWR and LIPO LEDs turn off.
