Zenoah G290 Falcon3™ Tuning Set ZN1003F3

This tuned Zenoah G290 cylinder set was created by years of experience in the engine tuning industry.

TPS Racing Falcon3 sets and engines are in the Large-Scale Racing scene for many years with lots of sucesses. The many years experience speaks for itself, our tuning is developed over the years to the ultimate in tuning engines. With great precision tuning that guarantees you a bomb of a motor, combined with low fuel consumption and long life.

The Falcon3™ operations:

• Cylinder flush ports increased
• Cylinder flush ports corner machined
• Cylinder compression ratio increased
• Exhaust port widened
• Exhaust port raised
• Exhaust port polished
• Piston flush port installed
• Piston made lighter
• Piston bottom made sharper​

This set fits on:

• Zenoah G240
• Zenoah G270
• Zenoah G290

The set comes with 0.5 mm cylinder base gasket, we advise to always check the play between the piston and top of the cylinder with a soft piece of solder. The space must NEVER be less than 0.5 mm! Fit all gaskets in combination with liquid rubber TPS0313/10.

We also recommend to use Lock-Tite TPS271 on all screws. For running-in and normal Race use we recommend the PSR2 racing oil. A package of 200 cc on 5 liters of super petrol gives the good mixing ratio of 1:25.

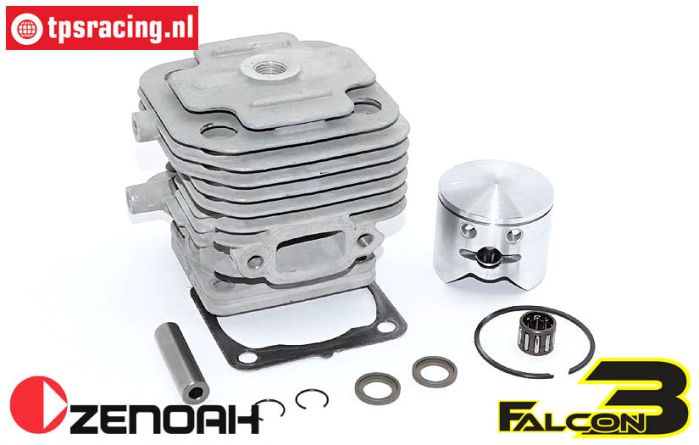

This kit consists of;

• 1 x Ø36 mm Falcon3 cylinder
• 1 x Ø36 mm Falcon3 piston
• 1 x Ø36-1.0 mm Flex piston ring
• 1 x Piston pin Ø8-L30 mm
• 1 x Piston pin bearing Ø8-Ø11-L8,7 mm
• 2 x Centering disc Ø8-Ø13-D1,9 mm
• 2 x Piston pin spring Ø9,4-D0,7 mm
• 1 x 0,5 mm Cylinder base gasket
