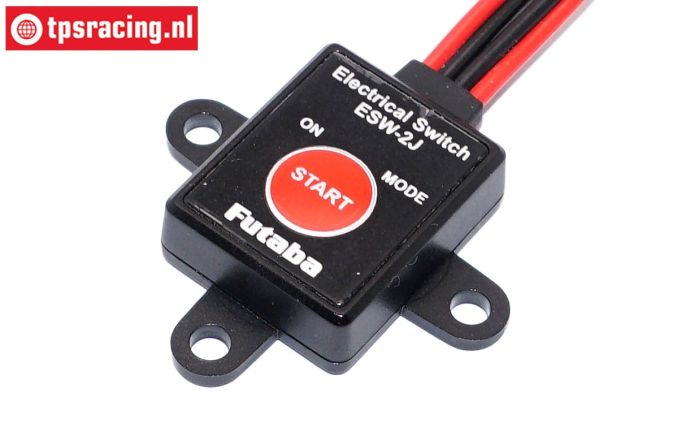

Futaba ESW-2J Electronic receiver switch.

The intelligent Futaba ESW-2J is an electronic on-off switch specially developed for RC Fuel cars. As is known, Futaba only delivers top products at a reasonable price.

In contrast to conventional analogue slide switches, there is no operating error or resistance error due to mud or dust, so maximum reliability. The FET controlled switch is resistant to vibrations, splashed water and dust and has virtually no resistance. Moreover, it is possible to select the protection of the LiPo and LiFe battery in 3 steps by switching on the relevant mode.

The protection mode can be set for different battery types, namely:

• Mode 1: Li-Fe, Li-Po and NiMH (default set mode)
• Mode 2: Li-Po 6.2 volts
• Mode 3: Li-Fe 5.5 volts

Technical data;

• Voltage: 4.8 to 7.6V
• Suitable for: NiMh, Li-Fe and Li-Po
• Peak current: 15A
• Continuous current: 10A
• Dimensions: L20.4-B14.6-H7.6 mm, (excluding eyelets)
• Cable length battery side: L180 mm
• Cable length receiver side: L120 mm
