FG E-Conversion Kit 1/6 2WD-WB465 FG68510

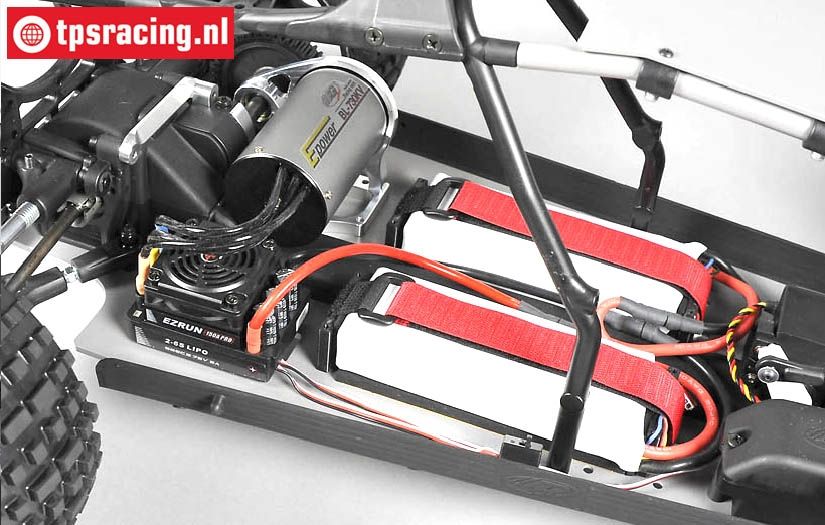

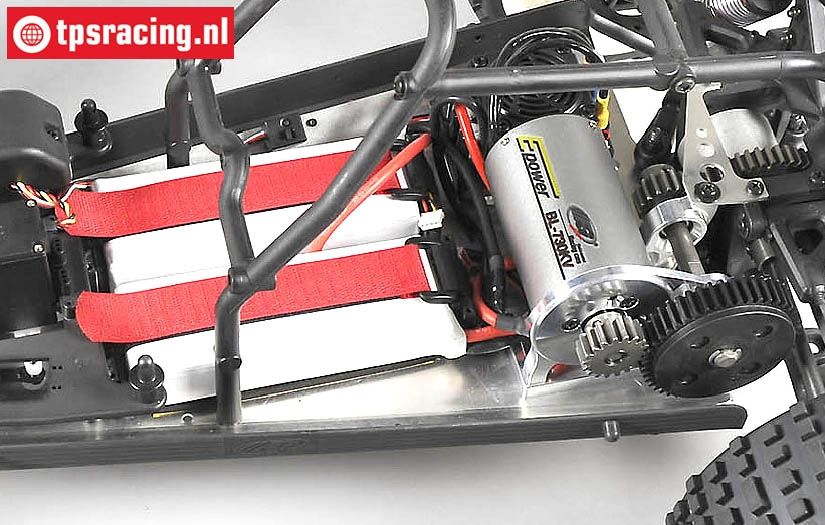

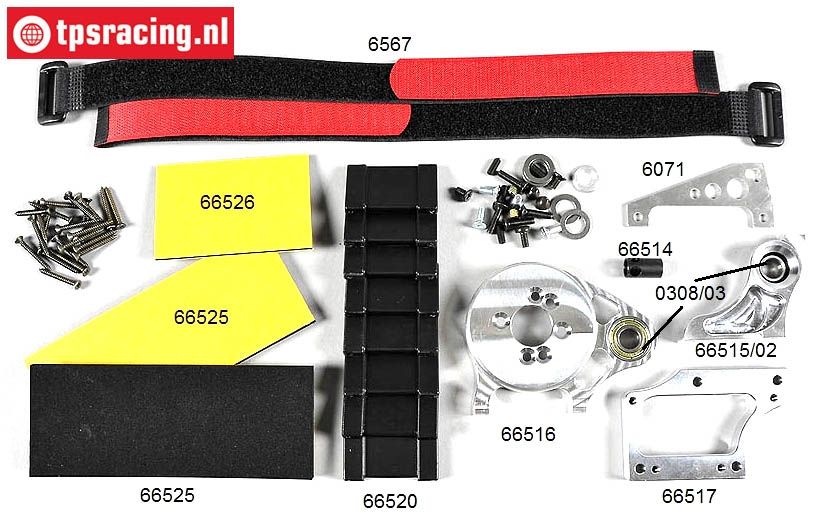

Suitable for FG Modellsport, Leopard BL and Castle Creation electric motors. The conversion kit includes all parts and mounting hardware for the controller, LiPo batteries and motor. Some mounting holes must be drilled using the enclosed drawing.

The gear transmission must be adapted accordingly to the use of the electric motor (see diagram below). For easy mounting, we recommend LiPo batteries with a max. length of 150 mm and 50 mm width.

Recommended other parts (not included):

• Brushless Motor 1100KV: FG7910
• Motor-gear adapter for E-Motors with Ø5 mm axle: FG66514/01
• Motor-gear adapter for E-Motors with Ø10 mm axle: FG66514
• Brushless ESC 160A: FG7913
• Li-Po 9200 mHa 120C: TPS9200HC
• HTRC Touchscreen T400-DUO charger

Suitable for:

• Marder-WB465 mm
• Beetle-WB465 mm
• Monster Truck-WB465 mm
• Hummer-WB465 mm
• Jeep-WB465 mm

Recommended Transmission:

• On-Road with Ø120 mm tires: 23-24-25/40/15/48
• Off Road with Ø170 mm tires: 18/46/15/48
• Monster with Ø210 mm tires: 16/48/15/48
