FG Modellsport E-Conversion Kit 1/5-1/6 2WD-4WD FG68512

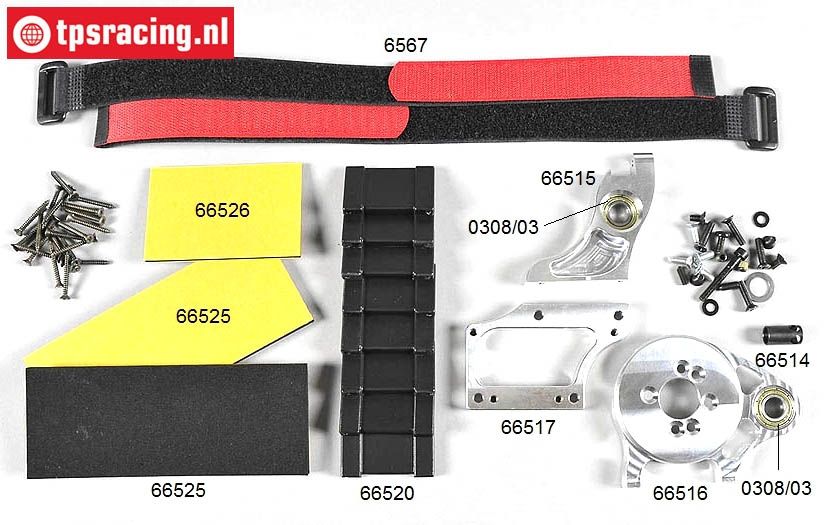

Suitable for FG Modellsport electric motors, Leopard BL motors and Castle Creation. The conversion kit includes all parts and mounting parts for the controller, LiPo batteries and motor. Some mounting holes must be drilled using the enclosed drawing.

The gear transmission must be adapted accordingly to the use of the electric motor (see diagram below). For easy mounting, we recommend LiPo batteries with a max. length of 150 mm and 50 mm width.

Recommended other parts (not included):

• Brushless Motor 1100KV: FG7910
• Motor-gear adapter for E-Motors with Ø5 mm axle: FG66514/01
• Motor-gear adapter for E-Motors with Ø10 mm axle: FG66514
• Brushless ESC 160A: FG7913
• Li-Po 9200 mHa 120C: TPS9200HC
• HTRC Touchscreen T400-DUO charger

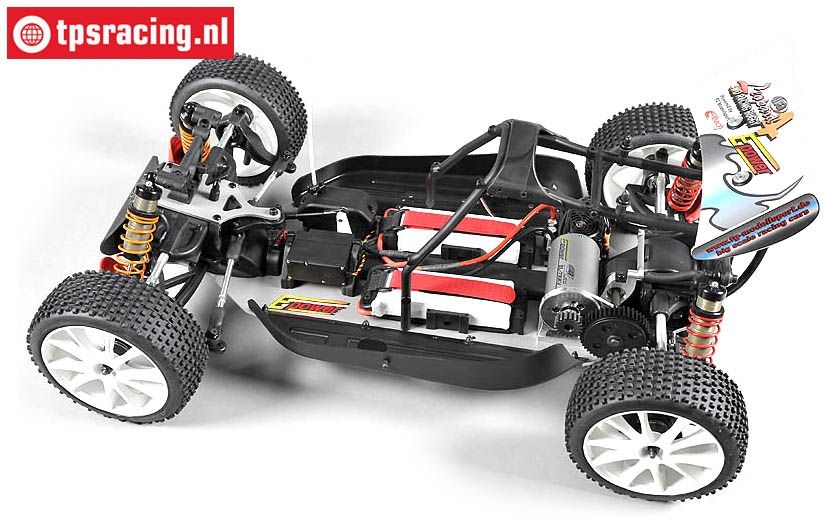

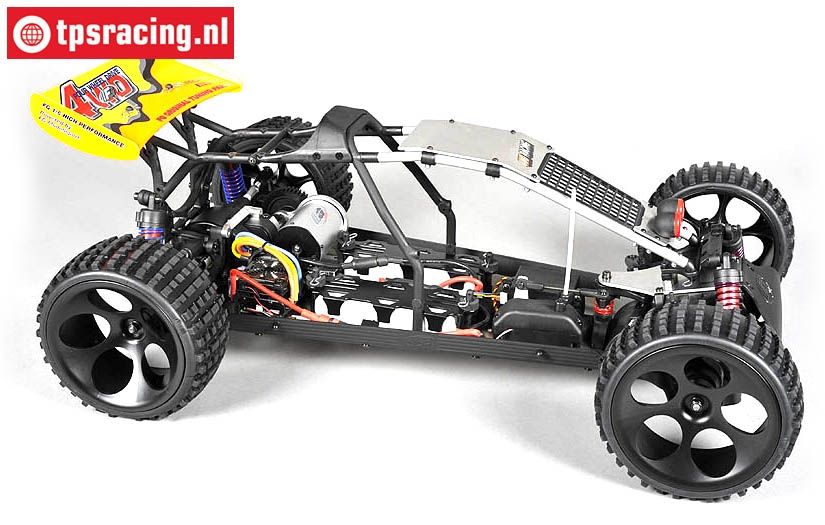

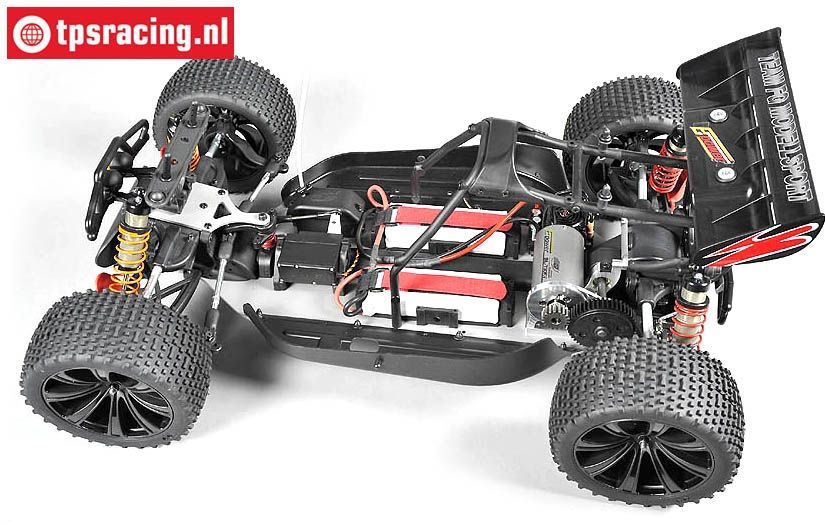

Suitable for the following models WB510-535:

• 1/5 2WD-4WD Touring car models from 2020 till today
• 1/6 2WD-4WD Buggy and Monster models from 2020 till today
• 1/6 2WD-4WD Race Truck models from 2020 till today

Recommended Gear Ratio:

• On-Road with Ø120 mm tires: 23-24-25/40/15/48
• Off Road with Ø170 mm tires: 18/46/15/48
