FG Modellsport electric conversion kit 1/5 2WD-WB465-530/535 mm FG68511

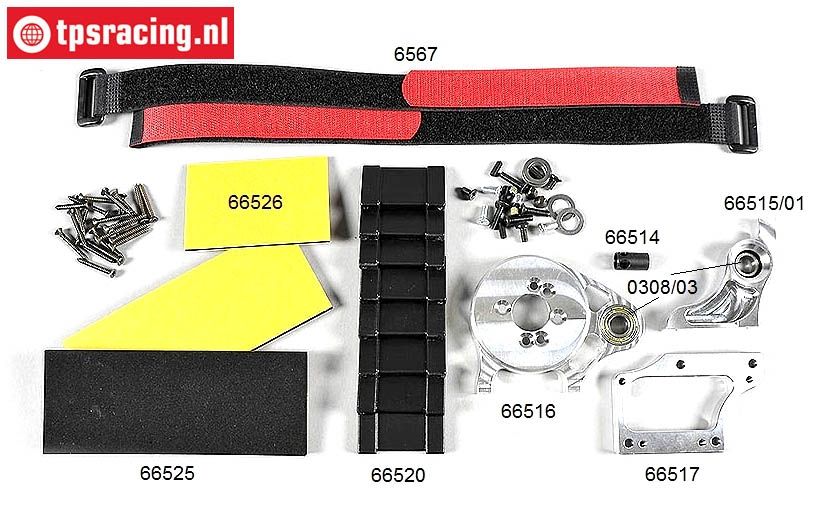

Suitable for FG 1/5-2WD Touring Cars and FG 1/6-2WD Race Trucks with a wheelbase of 465 to 530/535 mm. Suitable for the electric motors from FG Modellsport, Leopard, BL, and Castle Creation. The conversion kit contains gearbox and motor mount, mounting parts for cruise control and LiPo batteries.

During the conversion, several mounting holes must be made on the chassis. The gears must be changed according to the use of the electric motor. For easy assembly, we recommend LiPo batteries with a max. length of 150mm and 50mm width. The conversion kits include all mechanical parts (except electric motor, speed control and LiPo batteries), to convert your FG model in 1: 5 and 1: 6 scale into an electrically operated system.

Recommended other parts (not included):

• Brushless Motor 1100KV: FG7910
• Motor-gear adapter for E-Motors with Ø5 mm axle: FG66514/01
• Motor-gear adapter for E-Motors with Ø10 mm axle: FG66514
• Brushless ESC 160A: FG7913
• Li-Po 9200 mHa 120C: TPS9200HC
• HTRC Touchscreen T400-DUO charger

Suitable for:

• 1/5-2WD Touring Cars WB465-530/535 mm
• 1/6-2WD Race Trucks WB465-530/535 mm

Recommended Gear Ratio:

• On-Road with Ø120 mm tires: 23-24-25/40/15/48
• Off Road with Ø170 mm tires: 18/46/15/48
• Monster with Ø210 mm tires: 16/48/15/48
