The RedRace2 V3 is a Race ignition that gives 15 to 25% power gains. Plug-and-Play for chasing all motors. New version with modified air guide plates front and rear for optimum cooling.
Your benefits:
Significant Power Increase
Very easy assembly
High-quality components
CNC parts anodized
A2 stainless steel screws
TPS Racing quality
Very good Warranty
Technical description:

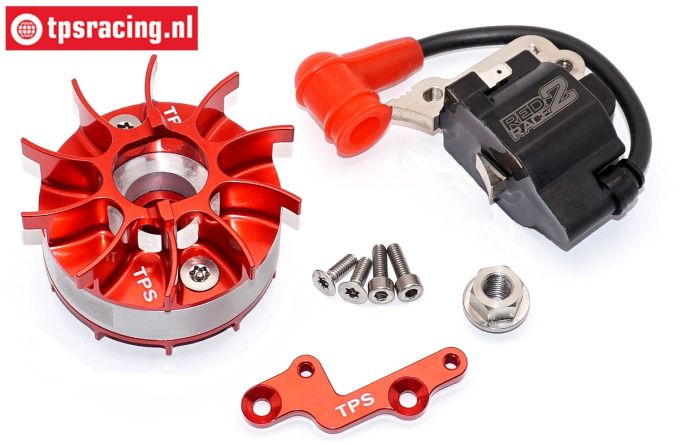

The heart of the ignition is made up of 3 high-quality parts. To start, a balanced and machined Ikeda 60 mm rotor, completed with tow high quality CNC machined parts. The three parts are assembled by special connecting forms to make it one stable unit. The specialy shaped, robust fins for off-road use on the front and back give more than adequate airflow for an efficient cooling. The optional carbon Air Duct plates also provide a Turbo function, so the air is accelerated.
The weight of the three-piece rotor is 200 grams, not much lighter than the original flywheel, but the smaller diameter and enhanced timing is a gain of at least 18%, This is an advantage in the whole RPM range, but of course, a very fast engine even can give more gains. Tests showed that the engine runs unstable, (also at adle), by using a lighter rotor. Therefore we choose te keep the weight close tot the original flywheel.
The three-piece rotor is mounted on the crank shaft by using a special stainless steel. There material has been specifically selected so it can not affect the magnetic field of the rotor. The Ikeda HV coil is mounted on the cylinder with a special CNC machined bracket. Please use Lock-Tite TPS271 for all screws.
Iginition fits:
All Zenoah engines in our product range
All CY, (Chung Yang), engines from our range
All HPI Feulie engines in our product range
All BWS Feulie engines in our product range
All LOSI Dynamic engines in our product range
All listed and similar engines with a Zenoah pull starter
