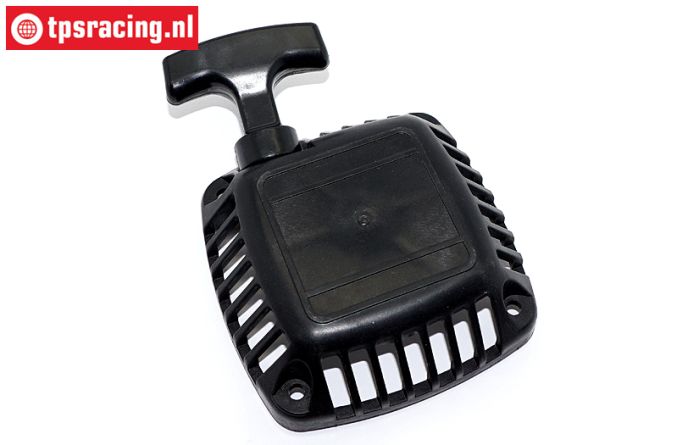

Zenoah Pull starter ZN0047

Suitable for:

• Zenoah G230
• Zenoah G240
• Zenoah G260
• Zenoah G270
• Zenoah G290
• Zenoah G320
• HPI Feulie
• Dynamic
• Equil build Motors

Optimal protection of Pull Starters:

• Remove the pull starter from the engine
• Pull out the recoil starter and hold the spring cassette on the inside
• Now turn the spring cassette so that its notch is exposed, and put the cord in it (Photo 1)
• Now let the spring cassette turn back gradually until there is no more tension on the rope
• Now loosen the middle screw, and remove the carrier parts (Photo 2)
• Now only the spring cassette remains in the housing (Photo 3)
• Carefully remove the spring cassette so that the spring remains in the holder (Photo 4)
• Remove all dirt and grease with degreaser from the spring cassette and recoil starter housing
• Now spray the spring cassette and inside of the recoil starter housing with 3-IN-ONE® Lock Dry Lube
• Now put the spring cassette back, CAUTION that the hook of the spring falls into the cam of the recoil starter housing! (Photo 5)
• Now assemble cam parts in the order: 1) cam, 2) spring, 3) cam disc, 4) washer and 5) screw, use with the last Loctite 271
• ATTENTION that the ring with the square hole is in line with the cam of the pull starter housing!
• Now turn the spring cassette so that its notch is exposed, and put the cord in it (Photo 6)
• Now turn the assembly 5 to 6 times 360 degrees counterclockwise so that the spring is tensioned again and the recoil starter handle returns. (Photo 7)
