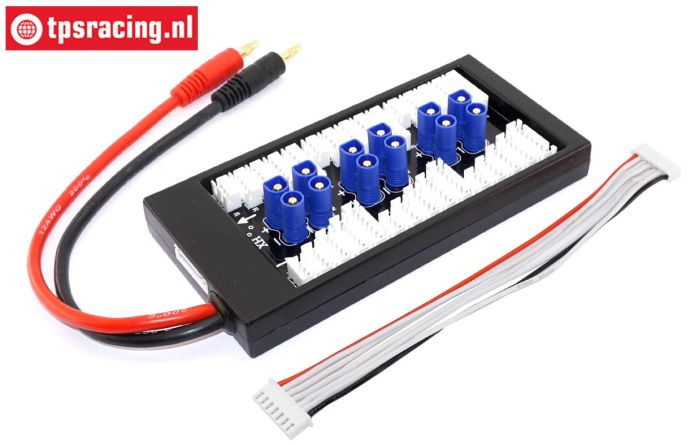

Balancer bord EC3 2S~6S

Charging LiPo batteries is essential to getting the most from your batteries by ensuring that the voltage of each individual cell in a pack is equal. Balancing helps prevent single cells from being overcharged or discharged, which can damage the cell and has the potential to cause a fire.

The balancing process will typically discharge the higher-voltage cells to match the lower-voltage cells during the charging process. Suitable as charging connection between charger and normal batteries. Board comes with high quality silicone wiring and Gold banana plugs.

Connectors:

• EC3

Suitable for 2S, 3S, 4S, 5S and 6S LiPo en Li-Fe batteries:

Connectors:

• XH
• TP/FP
• HP/PQ

Dimensions:

• Length: 140 mm
• Width: 68 mm
• Height: 30 mm

Some chargers include one or more balancing boards and some have all four on one board. If your charger doesn’t have the balancing connector to match your batteries, you can use this one.

ATTENTION! Li-Po batteries can be dangerous when over charged or deep discharged, or damaged. Li-Po batteries always have to be charged and stored in a specially designed protective case like TPS1244/02
