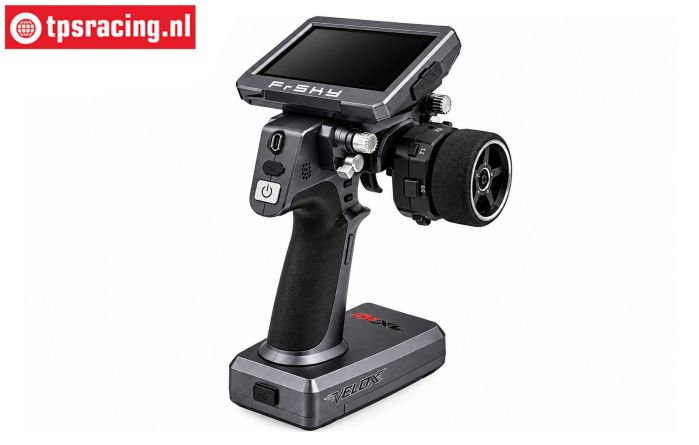

FrSky Velox VX10 24-Channel 2.4GHz Transmitter Set

For many of us, FrSky is a relatively unfamiliar brand, yet they have been producing high-quality radio control systems since 2010; this is their first pistol-grip (wheel) transmitter.

The FrSky VELOX VX10 is an advanced 24-channel 2.4 GHz transmitter system that combines modern technology with maximum ease of use. Thanks to the 180° rotatable touchscreen, comprehensive ETHOS software, and precise adjustment options, you have full control over your RC model. The ergonomic transmitter is adjustable for both left- and right-handed users and offers extensive telemetry, flexible programming, and support for multiple FrSky protocols. Extensive capabilities, maximum control, and innovative technology—all in one transmitter!

The Velox VX10 series features a built-in 900MHz / 2.4GHz TD-ISRM RS RF module, enabling pairing with a wide range of FrSky receivers via TD, TW, ACCESS, and ACCST D16 protocols. Additionally, the VX10 series is equipped with a 'Lite' type external module bay, giving users the flexibility to install and pair various RF protocol modules or functional modules.

Highlights:

• Suitable for both left- and right-handed use
• Large, 180° rotatable color touchscreen
• Adjustable steering wheel travel (up to 26° inward and outward)
• Adjustable steering wheel spring tension
• Steplessly adjustable throttle trigger
• Symmetrically mirrored layout for the 6 trim buttons, T5/T6 buttons, and SF switches
• Built-in flash memory and a TF card slot
• Equipped with an S.Port, a 3.5mm audio output, and USB-C ports.
• 4000mAh 2S Li-ion battery

Technical Details:

• ETHOS operating system for Surface series transmitters
• Built-in 900M/2.4G TD-ISRM RS RF module & external RF module slot (Lite type)
• Supports TD, TW, ACCESS, and ACCST D16 modes
• Compatible with additional RF protocols via external RF modules
• Swappable control design for left- and right-handed use
• Steering and external RF function modules can be easily swapped
• 180° rotatable color touchscreen (800×480 resolution) with high brightness for outdoor use
• Features easy-to-operate trims (2x) and buttons (1x), positioned on both sides of the handle
• Built-in flash storage & external TF card (microSD) slot for additional storage capacity
• Equipped with S.Port interface for external device configuration and upgrades
• Supports video transmission via HDMI and AV interfaces (VX10 HD edition)
• High-speed PARA wireless trainer system
• Equipped with USB-C port
• Supports 2S Li-ion battery charging system
• System upgrades, data transfer, and configurations
• Throttle and brake trigger
• Various sizes & metal trigger available (optional)
• Adjustable travel (forward/backward)
• Modular design of the ergonomic steering wheel with various controls
• Adjustable spring tension, adjustable travel angle (inward/outward) & adjustable positioning damping
• Equipped with multiple trims (4x) and push-buttons (3x)
• Thumb-operated rotary dials (2x) & three-position switches (2x)
• Equipped with a speaker and a 3.5 mm headphone jack
• Spacious battery compartment for battery capacity upgrades
• Supports installation of one-handed operation accessories (optional)

Specifications:

• Dimensions: L192-W193-H72 mm
• Weight: 560 g (incl. battery)
• Operating system: ETHOS
• Internal RF module: TD-ISRM RS
• 4.3-inch touchscreen display (resolution: 800×480)
• Number of channels: 24 channels
• Operating voltage range: 6.5 V ~ 8.4 V (2S Li-battery)
• Operating current: 400 mA at 7.4 V
• Operating temperature: -10°C ~ 60°C (14°F ~ 140°F)
• Battery compartment dimensions: L93.5-W55-H21.5 mm
• Data transfer and charging interface: USB Type-C
• USB adapter voltage and current: 5 V ±0.2 V, ≥2.0 A
• Compatibility: ACCST D16 / ACCESS / TW / TD modes
