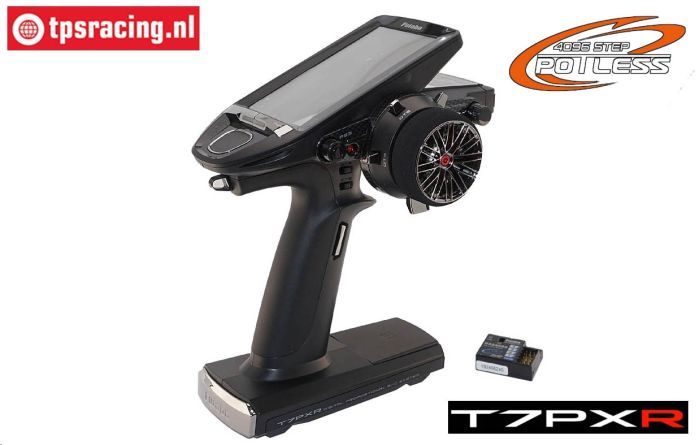

Futaba 7PXR Potless
The innovative POTLESS V3 control units scan the movement of the throttle lever and the steering wheel without contact and therefore absolutely wear-free. While a pickup is always dragging across a layer of carbon with a potentiometer, with POTLESS V3 there is no mechanical contact between the control transmitter (magnet) and the signal pickup (magnet sensor) while the control movements are being scanned.
POTLESS V3 technology
- Sensing of throttle and steering wheel without touching
- Hi resolution with 4,096 steps
- More direct response
- No measurable latency
- Temperature stable
- Completely wear-free
Futaba's high-end model 7PX for cars is used by the world's top drivers because of the fastest communication in the world between driver and car. A new title 7PXR has been given in honor of all the overwhelming performances that more than justify the reasonably high price.
A remarkable point symbolized by the brilliant "R" character is a newly matched device with absolutely the best material! Using a 4.3-inch full-color LCD touch screen and telemetry system, advanced settings are made quickly and easily. The new features from o.a .; throttle and brake lever that can be adjusted entirely to your own insight is unique. Enjoy this 7PXR in details, an unsurpassed high-end channel that has no equal!
New Features;
- New looks
- Optimal weight balance
- Lighter than its predecessor
- Extra large HOME button for improved operation
- Carbon-reinforced resin housing
- Aluminum and titanium screws
- New position control and trim buttons
- New shape gas and brake lever
- Multi-color indicator light 7 colors selectable
- R special background color selection function image display on home screen
- Available with R334SBS or R334SBS-E receiver
Details:
- 2.4GHz telemetry system, T-FHSS SR, T-FHSS, S-FHSS and FASST-C2 compatible
- R334SBS or R334SBS-E telemetry receiver, T-FHSS SR and T-FHSS compatible
- LiFe battery 1100mAh standard
- Left-handed support
- Trigger position variable mechanism
- 4.3 inch color TFT LCD
- Touch screen
- Control lamp in 7 colors
- Clock function
- MicroSD card slot, card is optional
- Telemetry reading function / speaker / earphone
- Display of receiver voltage
- External voltage display with optional sensor
- Temperature display with optional sensor
- Speed display with optional sensor
- GPS display with optional sensor
- Steering gyro sensitivity adjustment function
- Steering mixing with Ackermann adjustment
- Front and rear wheel independent brake mixer
- Gyro mixes
- 4WS mix
- Dual ESC mixes
- Mix program
- CPS mixing Thing
- Tank mixing
- Neutral braking function
- 40 model memory
- Model name with 15 characters
- MC link function supports MC970CR, MC960CR, MC940CR, MC950CR, MC851C, MC850C, MC602C, MC601C, MC402CR, MC401CR
- S.BUS Equipped with servo adjustment function
- Anti-slip braking system ABS
- Up stationary
- Throttle
- Throttle cut
- Throttle gear
- Throttle, brake curve
- Throttle ATL
- Mechanical ATL
- Choice of throttle mode 5: 5/7, 3: 10/0
- Steering curve
- Steering speed
- D / R
- EPA function on all channels
- Sub-trim on all channels
- Function selector switch
- Digital trim
- Failsafe
- Accu Failsagefe
- Timer: up timer, Down timer, Lap timer, Navigation laps round: Maximum 80 laps.
Delivery content:
- T7PXR Potless transmitter
- R334SBS or R334SBS-E receiver of your choice
- Wheel offset adapter
- Wheel adapter 32 degrees
- Steering wheel Ø54 mm
- Trigger brake lever
- Miniature screwdriver
- Screen protector
- Instruction manual
Necessary accessories:
Additional products:
Matching Sensors:
- Temperature SBS/01T for small cylinder heads.
- Temperature SBS/01TE for E-motors.
- Speed SBS/01RM 360~100,000 rpm.
- Speed Brushless SBS/01RB 360~300,000 rpm.
- Voltage SBS/01V voltages up to 100V.
- Current SBS/01C voltages up to 70V, capacity and consumption
- GPS SBS/02G measures altitude, vario, speed, distance and position
