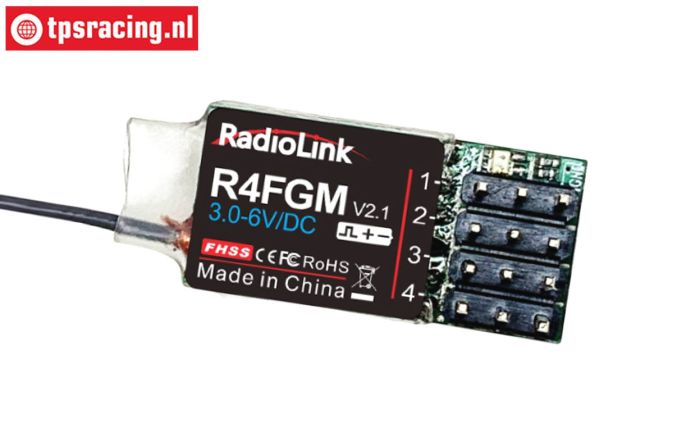

Radiolink R4FGM V2.1 2.4 Gig MINI Receiver

For those who are not familiar with Radiolink, they have been bringing innovative, high-quality and very competitively priced RC products to the market since 2013.

This 4 channel R4FGM V2.1 2.4 Gig mini is a very small receiver available for the RC8X steering wheel transmitter. This has a built-in Gyro and telemetry. These can be fully read and set via the RC8X transmitter. Thanks to the optional sensors, other functions can also be viewed through the S-BUS port.

Further features:

• Channel 1 to 4 are with PWM signal output.
• The integrated high-performance gyro uses the software filter and PID algorithm. Corrects sensitivity in a timely and accurate manner and improves stability. The good flexibility for different models easily achieves professional performance even with drift cars..
• This R4FGM is protected against incorrect connection so that it cannot be damaged.

BINDING:

• When bound to RC8X, servo speed can be selected from 14ms, 4ms, and 3ms, if bind to other transmitters, it default 14ms. 14ms is suggested selected if connect with the analog servo while 4ms or 3ms is suggested selected if connect with the digital servo.
• *Attention: It is necessary to update the firmware of RC8X to V1.1.5 or above, and then select FHSS V2 protocol to display this option.
• And make sure the R4FGM is with the V2.1 tags or with the PASS factory date of 2023/4/26 and later.

Technical data R4FGM:

• Frequency: 2.4 Gig.
• FHSS 4 channel hopping
• Version: V2.1
• Number of channels: 4
• Built-in Gyro
• Voltage: 3~6 volts
• Power consumption: 30 mAh
• Dimensions: L25-B13-H12,7mm
• Weight: 3 grams
• Antenna length: 9 cm
• Signal Out: PWM
• Range: ± 400 mtr.
• Compatible with: Radio Link RC8X, RX8X RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2
