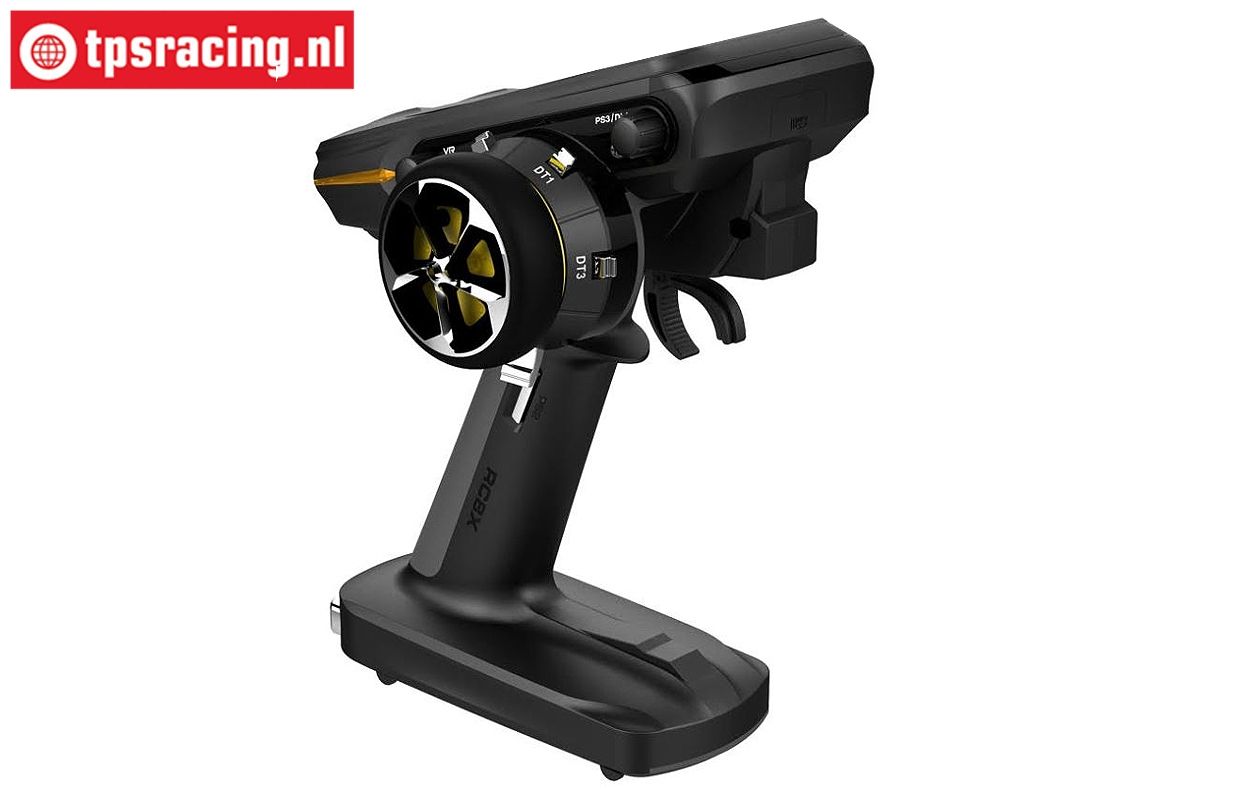

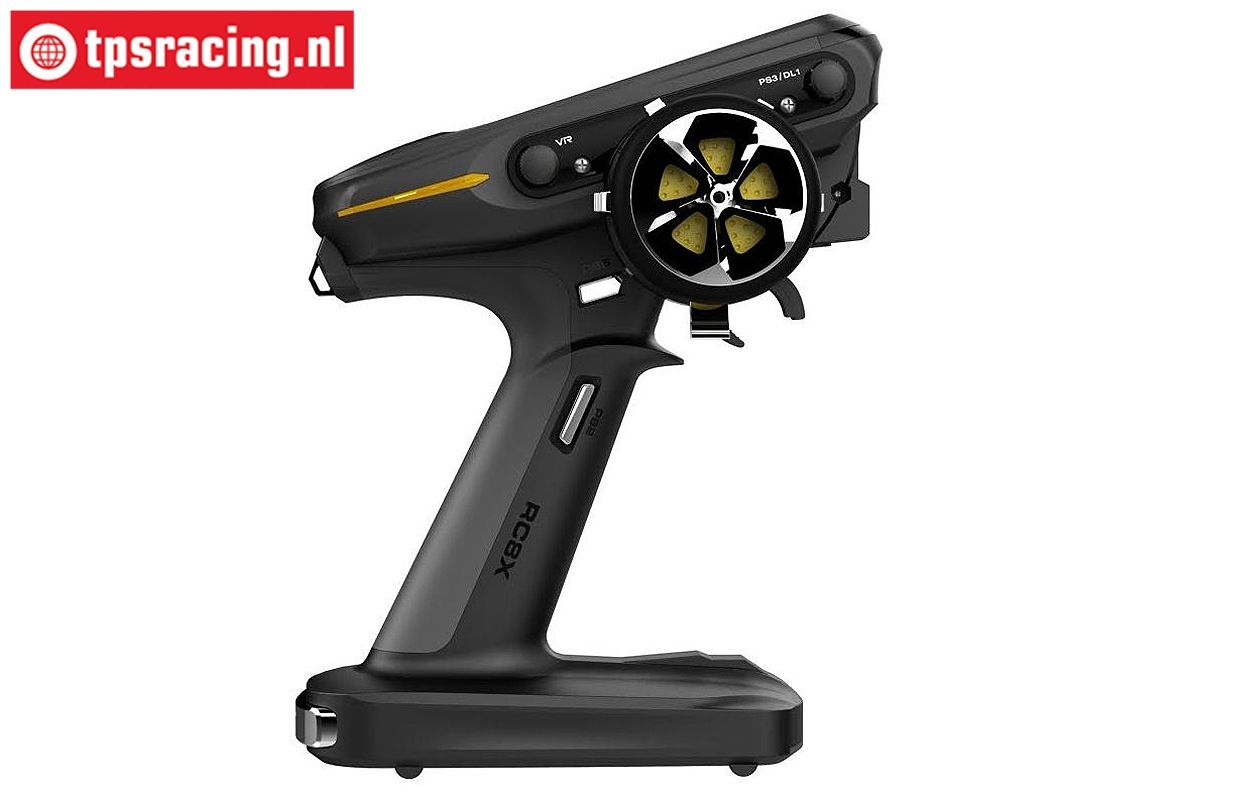

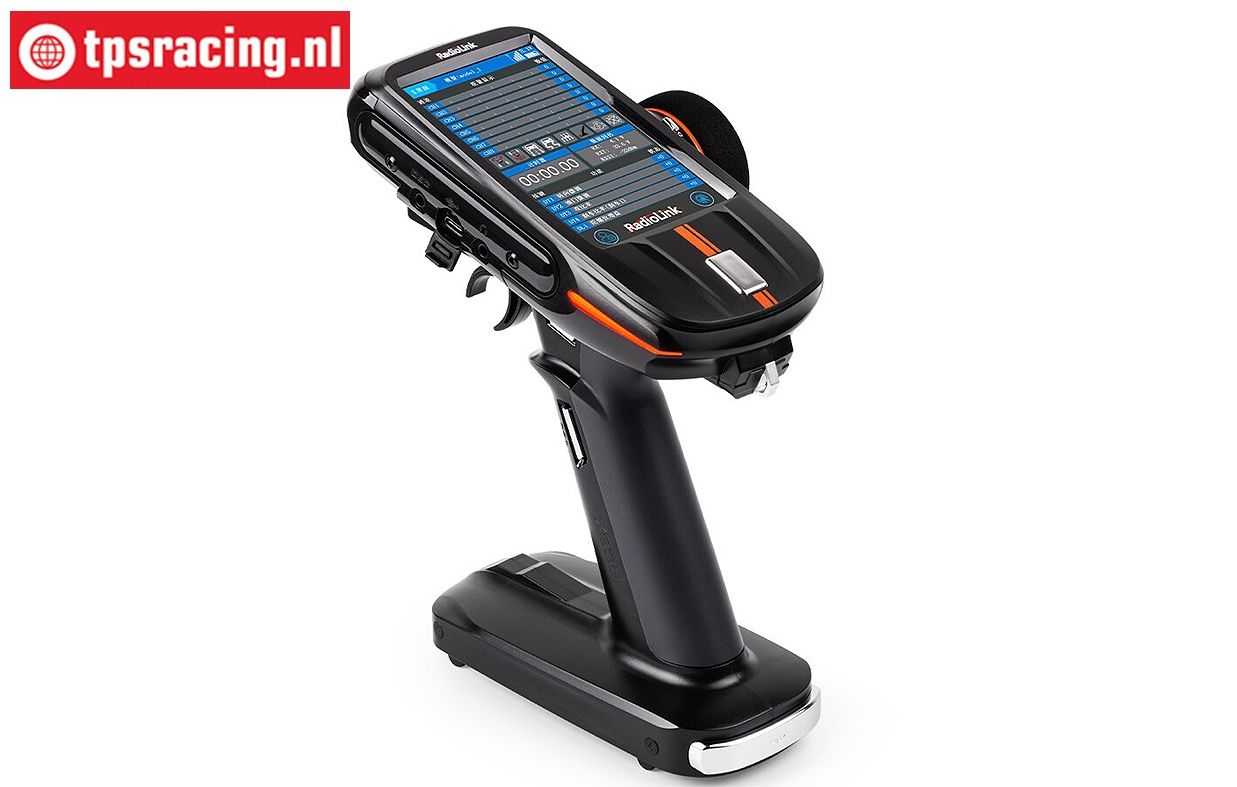

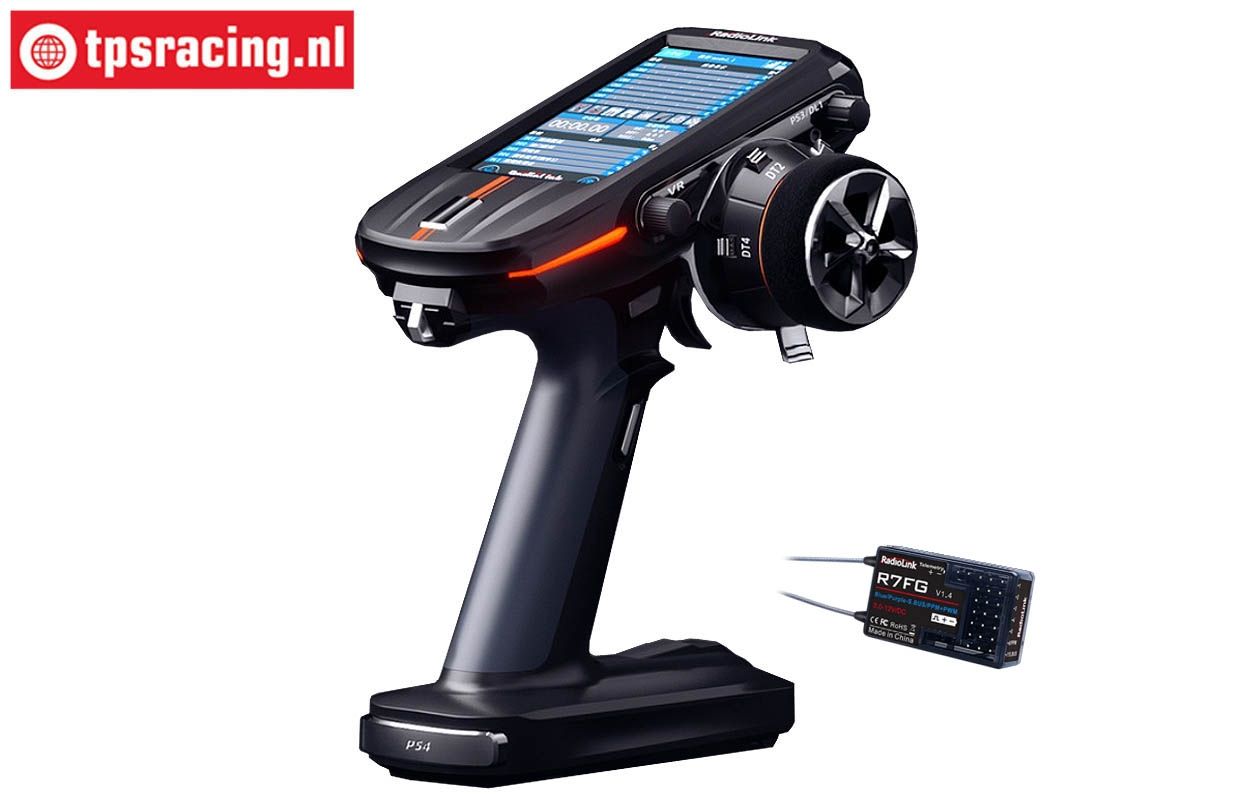

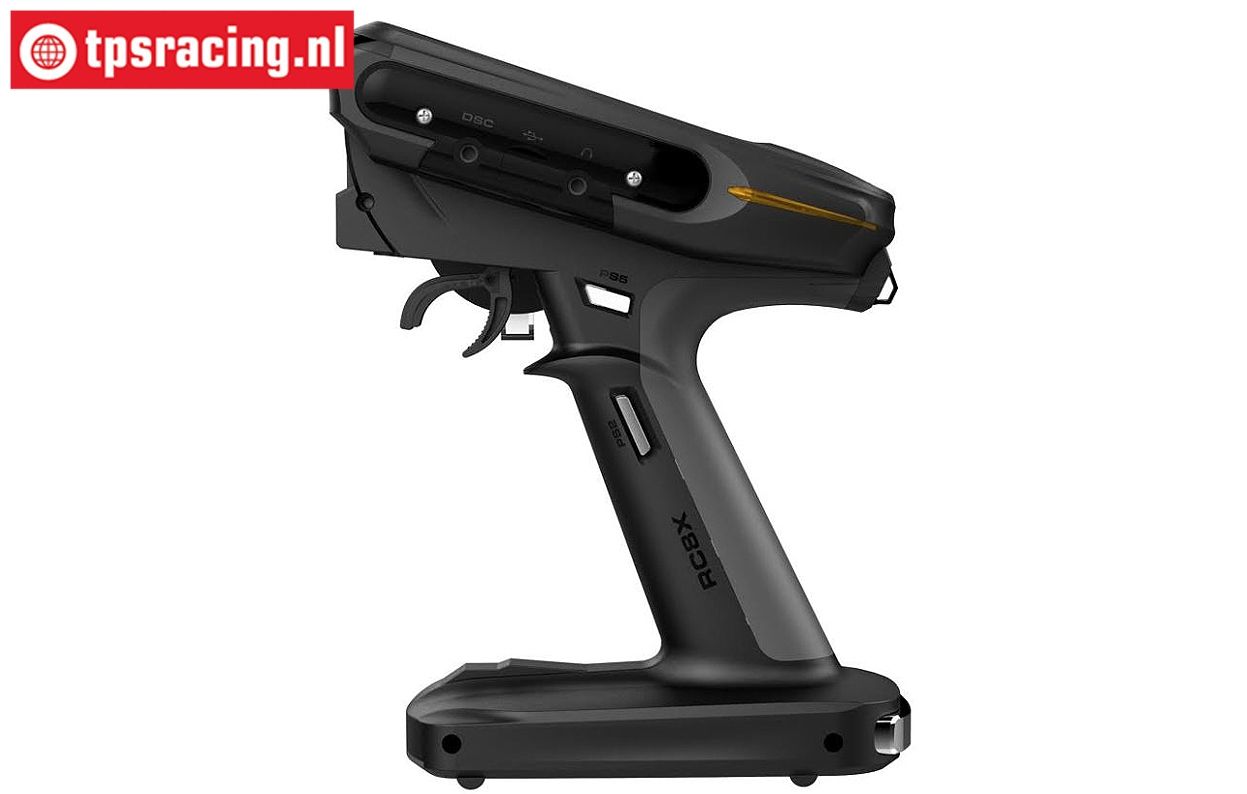

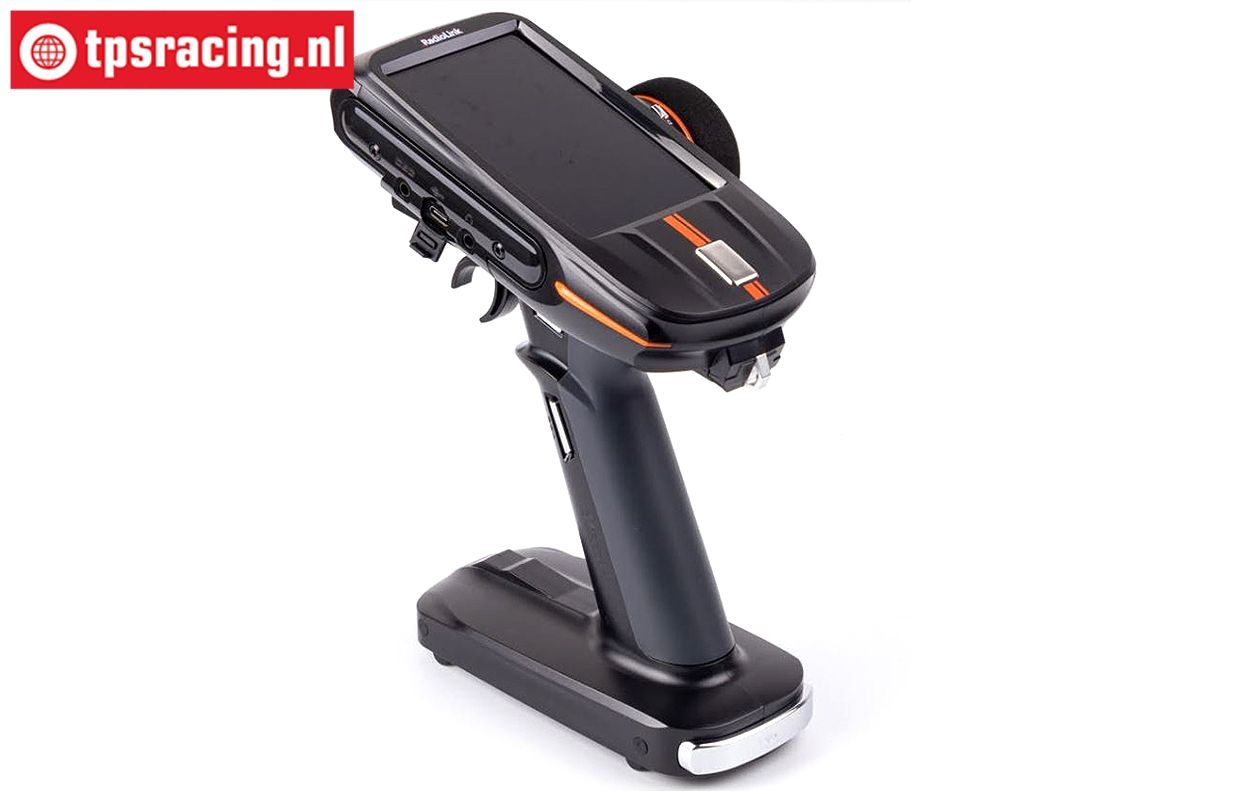

Radiolink RC8X Transmitter with R8FG Receiver V2.1

For those who are not familiar with Radiolink, since 2013 they have been bringing innovative, high-quality and very competitively priced RC products to the market. So again with this RC8X, 8 channel 2.4 Gig transmitter with illuminated, full color, touchscreen display.

This RCX8 transmitter with R8FG receiver set offers you all the functions that a contemporary RC enthusiast needs, and that for a very competitive price. The backlit 4.3 Inch, (10.92 cm), LCD screen with touchscreen displays all the information you need. The screen can even be split into two parts so you can see the even more important info right away.

No less than 8 fully programmable channels, which together with the 9 programmable mixers is very versatile. You can store as many as 200 models, so with a number of receivers you can control many models with just one transmitter! With the built-in telemetry function you can always read the car/receiver battery voltage on the transmitter, and enter the necessary lowest value so that you are warned when it would become too low. Other telemetry functions can be accessed with additional sensors via the S-BUS port. The R8FG receiver also has a built-in gyro, which is fully adjustable in sensitivity via the transmitter.

Data RC8X:

• Software version: V2.1
• 8 channels
• 4.3 inch 800-480 color backlit LCD touch screen
• 4 wheel steering
• LCD screen split function
• Telemetry real-time
• R7FG receiver with built-in Gyro
• Adjustable gyro sensitivity
• Suitable for RC car, boat and robot
• Support voice customization on all functions
• Various audio and video interfaces
• 200 models storage
• 9 groups of programmable mixers controls
• 16 group IDs
• Control distance 600 mtr
• Operating voltage: 7.2~16.8V DC (8 x AAA batteries or LiFe or Lipo battery) L92-B52-H17 mm
• Battery compartment dimensions: L92-B52-H14.5 mm
• Channel resolution: 4096-0.5us
• Compatible with Radiolink receivers: R4FGM, R7FG, R8FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F

R8FG Receiver:

• The R8FG receiver has built-in telemetry, which means that you can read the voltage of the receiver battery on the transmitter. With electric models you can also read the voltage up to 6S Lipo of the drive batteries through the supplied sensor cable. This connects to the available telemetry port. Other telemetry functions can be accessed with additional sensors via the S-BUS port.
• Channel 1 to 7 are with PWM signal output, channel 8 is with PPM or SBUS signal output. The signal output mode can be set so that, for example, a boat or car with FPV is supported.
• The integrated high-performance gyro uses the software filter and PID algorithm. Corrects sensitivity in a timely and accurate manner and improves stability. The good flexibility for different models easily achieves professional performance even with drift cars.
• This receiver can be used in three different modus: Car mode: Forward, backward and brake, Racing mode: Forward and brake, no backward, Boat and Tank mode: Forward and backward, (brake can be turned off and on).
• This R8FG is protected against incorrect connection so that it cannot be damaged.

Data R8FG:

• Frequency: 2.4 Gig.
• FHSS 67 channel hopping
• Version: V2.1
• Number of channels: 8
• Built-in Gyro
• Voltage: 3~12 volts
• Power consumption: 30 mAh
• Dimensions: L35-B22-H13.5mm
• Weight 7 grams
• Antenna length: 20.5 cm
• Signal Out: S-Bus-PPM-PWM
• Range: ± 600 mtr.
• Compatible with: Radio Link RC8X, RX8X RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2

Content Kit:

• 1 x RC8X Transmitter V2.1
• 1 x R8FG receiver V2.1
• 1 x USB-C cable
• 1 x 4Gig MicroSD card
• 1 x EXT cable

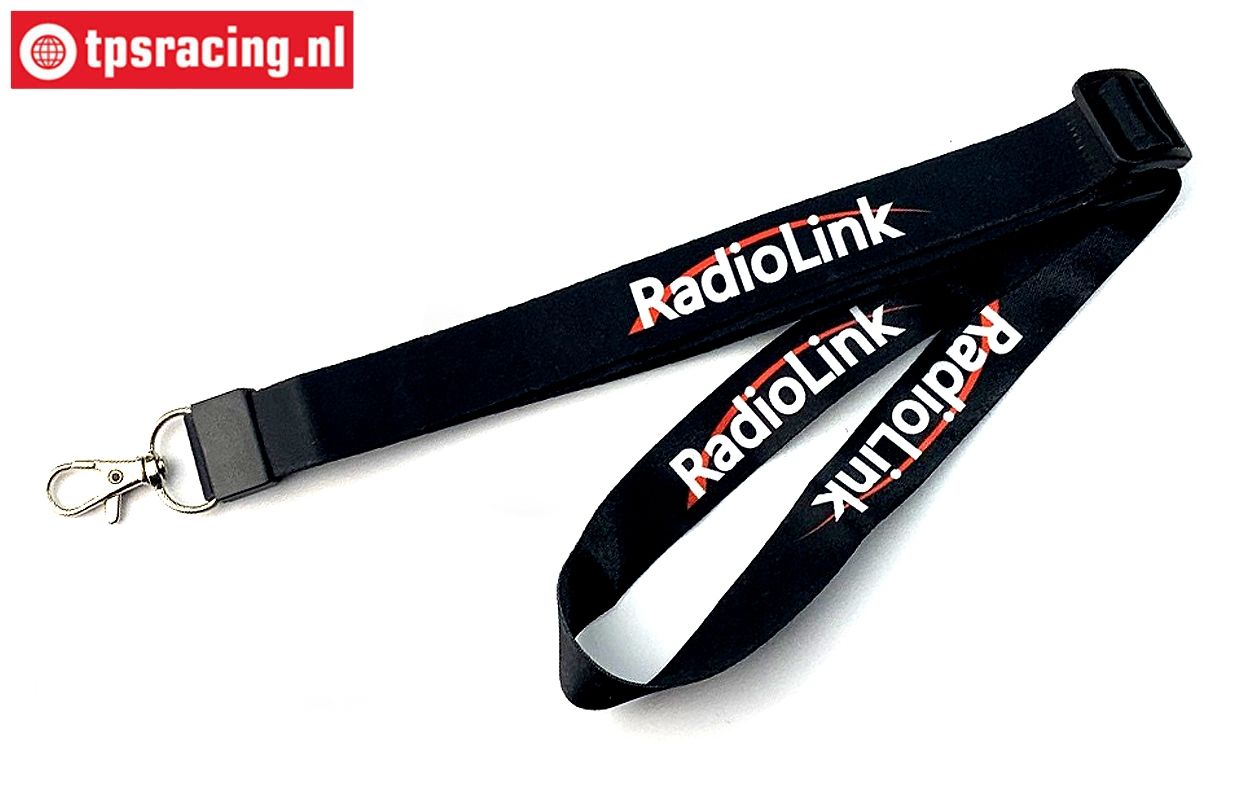

• 1 x Lanyard
• 1 x Luxury transmitter bag

Download Manual

Radiolink RC8X

Software Update

RADIOLINK RC8X BINDING
