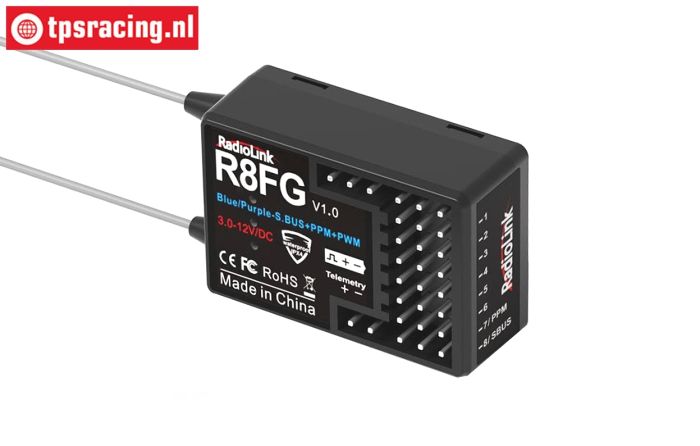

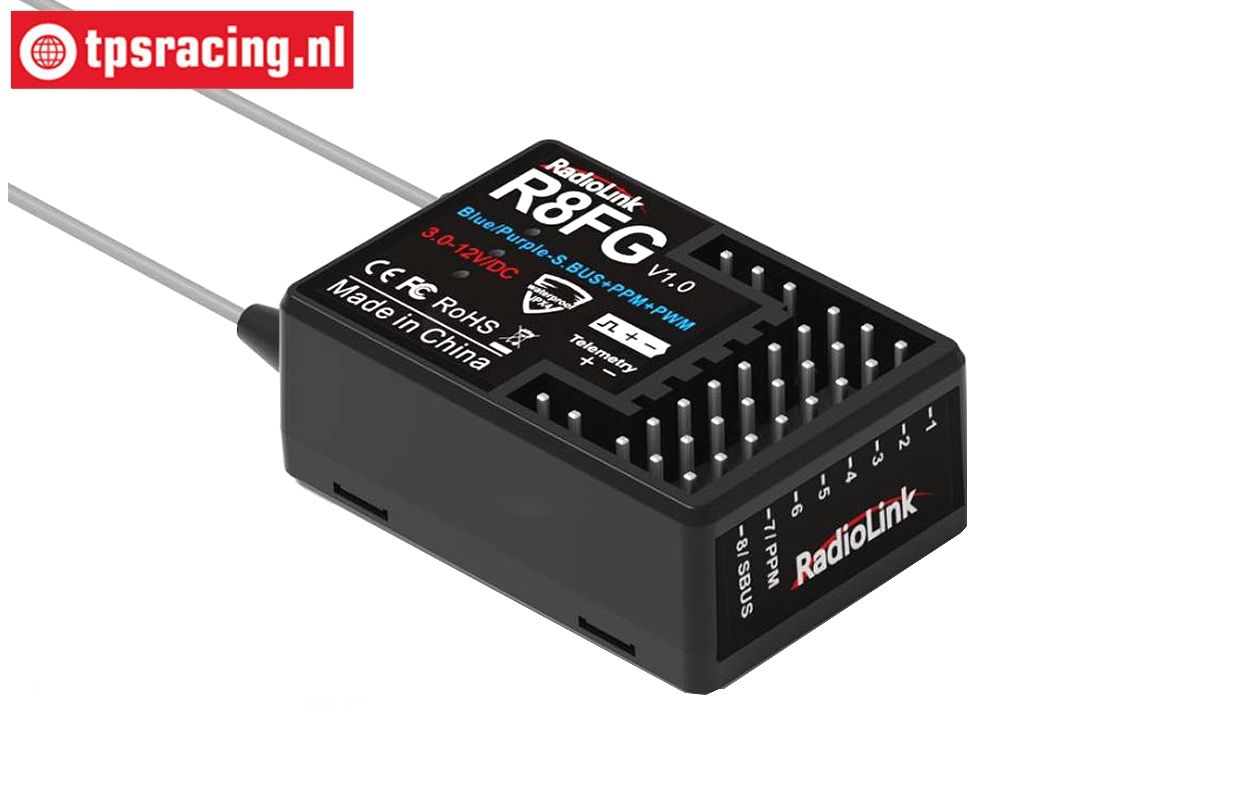

Radiolink R8FG V1.0 2.4 Gig Receiver

For those who are not familiar with Radiolink, they have been bringing innovative, high-quality and very competitively priced RC products to the market since 2013.

This 8 channel, water splah proof IPX4, 2.4 Gig. receiver is one of the last receivers available for the RC8X steering wheel transmitter. This has a built-in Gyro and telemetry. These can be fully read and set via the RC8X transmitter. Thanks to the optional sensors, other functions can also be viewed via the S-BUS port.

This receiver can be used in three different modus: Car mode: Forward, backward and brake, Racing mode: Forward and brake, no backward, Boat and Tank mode: Forward and backward, (brake can be turned off and on).

Further features:

• The R8FG has built-in telemetry, which means that you can read the voltage of the receiver battery on the transmitter. With electric models you can also read the voltage up to 8S~33,6 Volt of the drive batteries through the supplied sensor cable. This connects to the available telemetry port. Other telemetry functions can be accessed with additional sensors via the S-BUS port.
• Channel 1 to 7 are with PWM signal output, channel 8 is with PPM or SBUS signal output. The signal output mode can be set so that, for example, a boat or car with FPV is supported.
• The integrated high-performance gyro uses the software filter and PID algorithm. Corrects sensitivity in a timely and accurate manner and improves stability. The good flexibility for different models easily achieves professional performance even with drift cars.
• Three modes are available: Car mode: Forward, backward and brake, Racing mode: Forward and brake, no backward, and Boat and Tank mode: Forward and backward, brake can be turned off and on.
• This R8FG is protected against incorrect connection so that it cannot be damaged.

Data R8FG:

• Frequency: 2.4 Gig.
• Version: V1.0
• Number of channels: 8
• Built-in Gyro
• Voltage: 3~12 volts
• Power consumption: 30 mAh
• Dimensions: L35-B22-H13.5mm
• Weight: 6 grams
• Antenna length: 20.5 cm
• Signal Out: S-Bus-PPM-PWM
• Range: ± 600 mtr.
• Compatible with: Radio Link RC8X, RX8X RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2
